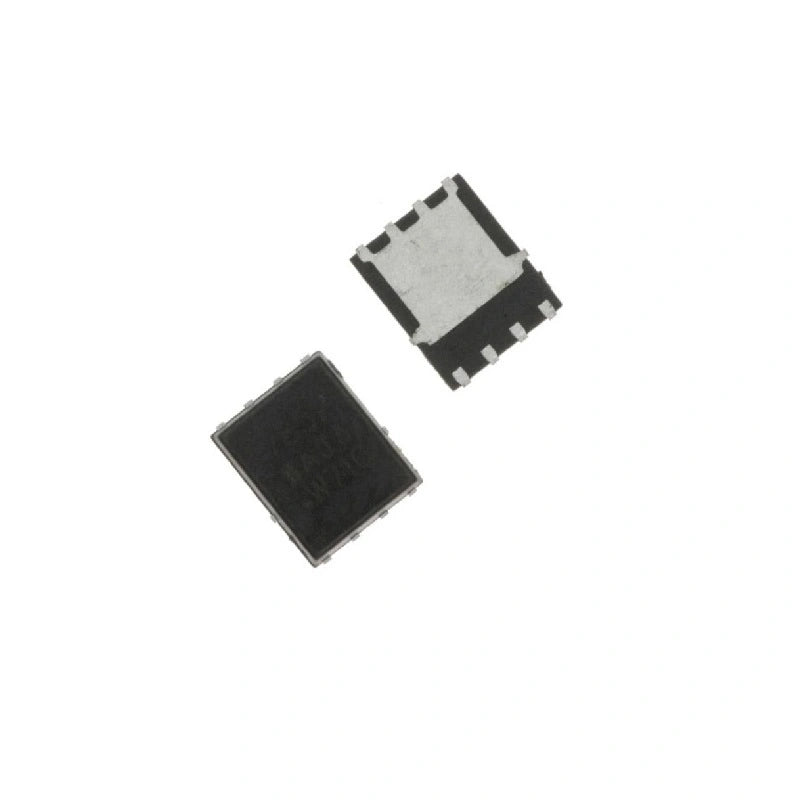

Antminer S9 BSC0901NS OptiMOS 30V Power Management MOSFET - Efficient and Reliable Power Control

$0.70 USD
$0.70 USD
Sale Sold out
Shipping calculated at checkout.
Get Business Pricing

Additional details

Shipping fees will be automatically calculated during the checkout process.

Reach out to us via the contact form for further information and assistance.
Secure checkout
SSL encryption & invoicing options
Worldwide shipping
Export-ready customs documentation
QC-tested spare parts
Specialized in ASIC miner hardware
Technical support
Assistance from mining engineers

Have questions about this product? Our team is here to help — just reach out on WhatsApp.

💬 Contact Us on WhatsApp

About the Product

Optimize Power Management with BSC0901NS OptiMOS MOSFET

Upgrade your power management system with the Antminer S9 BSC0901NS OptiMOS 30V Power Management MOSFET. Designed for effective power control, these MOSFETs offer ultra-low gate and output charge, as well as the lowest on-state resistance in small packages. With special EMI behavior to reduce interference, these MOSFETs are ideal for a wide range of applications, including Antminer cryptominers hash boards, onboard chargers, computer mainboards, DC-DC conversion, VRD/VRM, motor control, and LED applications.

High-Performance Power MOSFET for Antminer S9 and More

The BSC0901NS OptiMOS MOSFETs are N-channel FETs with a drain-to-source voltage (Vdss) of 30V, making them suitable for various power management requirements. With a continuous drain current (Id) of 28A (Ta) and 100A (Tc), these MOSFETs provide reliable performance under demanding conditions.



BSC0901NS Technical Features:

Category

Discrete Semiconductor Products

Transistors - FETs, MOSFETs - Single

Package

Tape & Reel (TR)

Part Status

Active

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

30 V

Current - Continuous Drain (Id) @ 25°C

28A (Ta), 100A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

4.5V, 10V

Rds On (Max) @ Id, Vgs

1.9mOhm @ 30A, 10V

Vgs(th) (Max) @ Id

2.2V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

44 nC @ 10 V

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

2800 pF @ 15 V

FET Feature

-

Power Dissipation (Max)

2.5W (Ta), 69W (Tc)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Package / Case

8-PowerTDFN

Base Product Number

BSC0901
