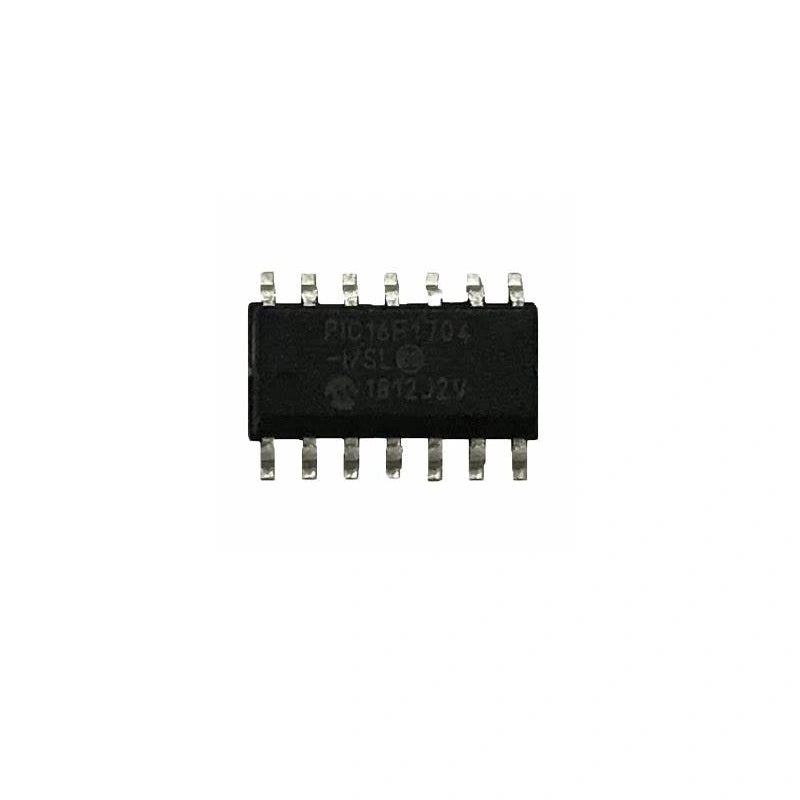

  • PIC16F1704 Microcontroller for Antminer Hash Board
1 1

PIC16F1704-I/SL PIC16F1704 Microcontroller 8bit 7KB 3.3V 14Pin for Antminer Hashboard

$2.75 USD
$2.75 USD
Sale Sold out
Shipping calculated at checkout.
Get Business Pricing

Additional details

Shipping fees will be automatically calculated during the checkout process.

Reach out to us via the contact form for further information and assistance.
Secure checkout
SSL encryption & invoicing options
Worldwide shipping
Export-ready customs documentation
QC-tested spare parts
Specialized in ASIC miner hardware
Technical support
Assistance from mining engineers

Have questions about this product? Our team is here to help — just reach out on WhatsApp.

💬 Contact Us on WhatsApp

About the Product

Powerful PIC16F1704 Microcontroller - Ideal for Antminer Hash Board Applications

The PIC16F1704 microcontroller is a versatile 8-bit processor that is perfect for Antminer hash board applications. With its wide operating voltage range of 3.3~5V and temperature range of -40°C to 85°C, this microcontroller offers reliable performance in various environments.

Low Power and Intelligent Analog Integration with PIC16F1704 Microcontroller

Designed with low power consumption in mind, the PIC16F1704 delivers efficient operation, making it suitable for power-sensitive applications. Its intelligent analog integration capabilities enable seamless integration into a range of general-purpose applications, including Antminer S9, L3+, S17+, T17 hash boards, and APW9 power supply U12 maintenance.



PIC16F1704-I/SL Chip Key Features:

Family Name
PIC16
Instruction Set Architecture
RISC
Device Core
PIC
Core Architecture
PIC
Maximum CPU Frequency (MHz)
32
Maximum Clock Rate (MHz)
32
Data Bus Width (bit)
8
Program Memory Type
Flash
Program Memory Size
7KB
RAM Size
0.5KB
Programmability
Yes
Interface Type
I2C/SPI/USART
Number of I/Os
12
No. of Timers
5
Timers Resolution (bit)
8/8/8/8/16
PWM
2
Number of ADCs
Single
ADC Channels
8
ADC Resolution (bit)
10
Number of DACs
Single
Minimum Operating Supply Voltage (V)
2.5
Typical Operating Supply Voltage (V)
3.3|5
Maximum Operating Supply Voltage (V)
5.5|3.6
Maximum Power Dissipation (mW)
800
Operating Temperature (°C)
-40 to +85
Standard Package Name
SOP
Pin Count
14
Mounting
SMD

International Customers Please Note:

This product ships from China. Please be aware that your order may be subject to import taxes, customs duties, and fees levied by the destination country once the shipment arrives. These charges are the customer's responsibility and are not included in the product price or shipping cost. We are unable to predict what these fees may be, as they vary by country.
