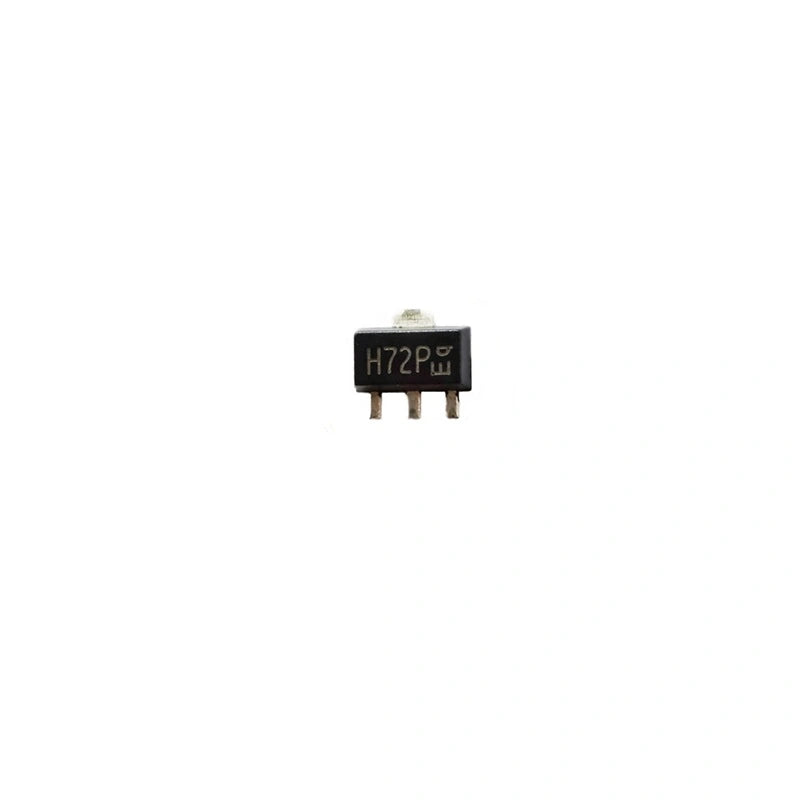

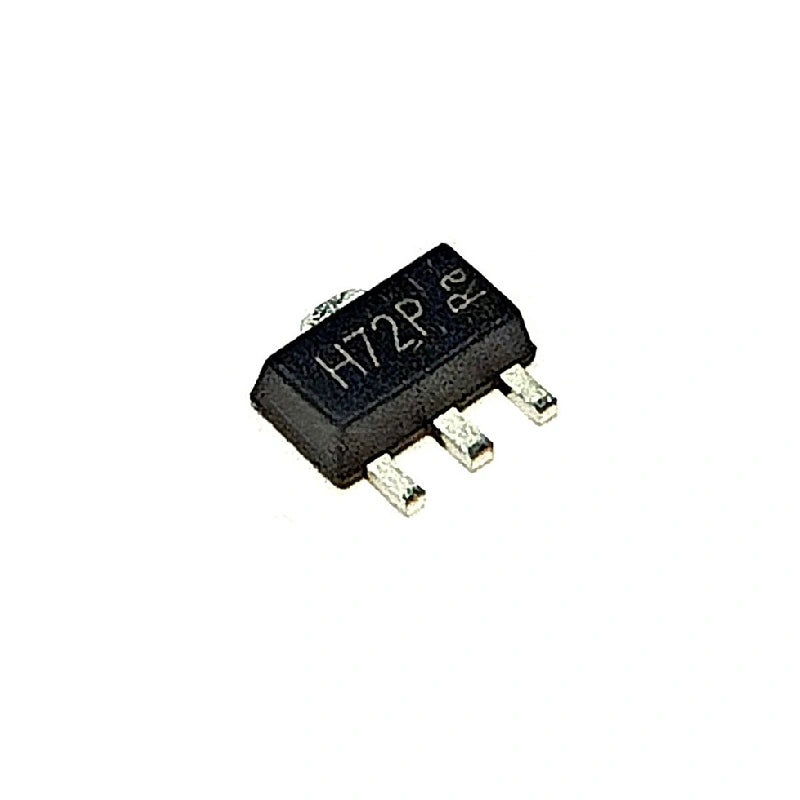

2SB772T H72P PNP Transistor - Small Saturation Voltage High Linearity
Additional details
Shipping fees will be automatically calculated during the checkout process.
Reach out to us via the contact form for further information and assistance.
Couldn't load pickup availability
About the Product
Versatile 2SB772T H72P PNP Transistor for Audio Amplifiers and Power Applications
The 2SB772T H72P is a PNP semiconductor transistor known for its exceptional characteristics, including a small saturation voltage drop (VCE sat), excellent linearity, and high hFE. Encased in the SOT-89 package, this transistor finds wide application in various electronic circuits, including 3-watt audio amplifier outputs, voltage regulators, power converters, and relay drivers.
Reliable Performance and Excellent Linearity with 2SB772T H72P PNP Transistor
With a collector to base voltage of 40V, collector to emitter voltage of 30V, and emitter to base voltage of 5.0V, the 2SB772T H72P can handle continuous collector currents of up to 3.0A. Its collector power dissipation is rated at 500mW, ensuring stable and reliable performance.
Technical Features:
| Feature | Specification |
|---|---|
| Transistor Type | PNP Semiconductor |
| Package | SOT-89 |
| Saturation Voltage (VCE) | Small |
| Linearity | Excellent |
| hFE (Current Gain) | High |
| Applications | Audio amplifiers, voltage regulators, power converters, relay drivers |
| Collector to Base Voltage (Vcb) | 40V |
| Collector to Emitter Voltage (Vce) | 30V |
| Emitter to Base Voltage (Veb) | 5.0V |
| Collector Current (Ic) | 3.0A |
| Power Dissipation | 500mW |
| Junction Temperature | 150℃ |
| Storage Temperature Range | -55℃ to 150℃ |
