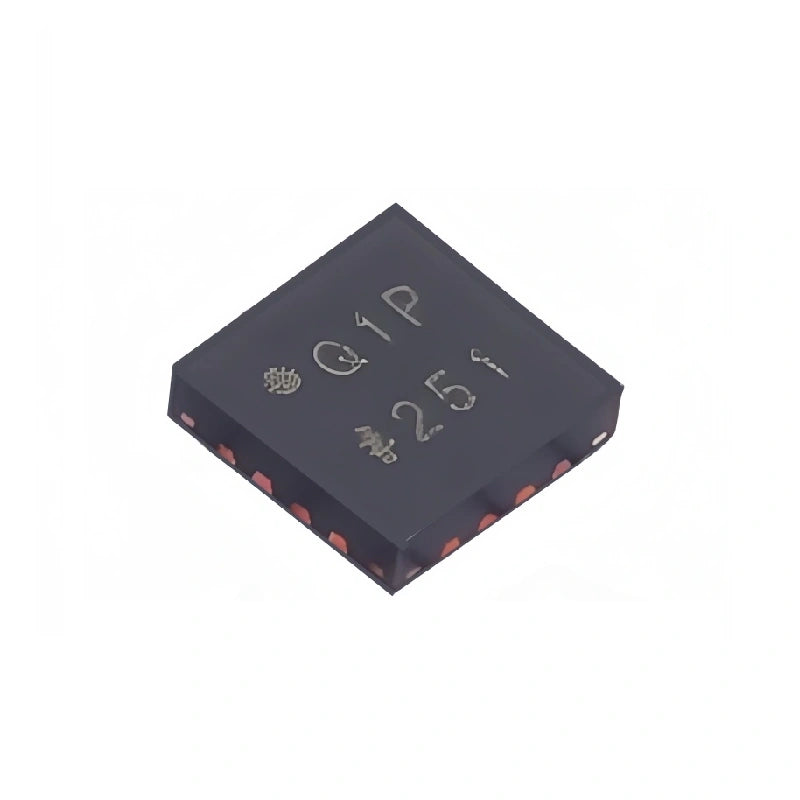

ADL5561ACPZ-R7 Differential Amplifier IC – 2.9GHz Low-Noise RF IF ADC Driver
Additional details
Shipping fees will be automatically calculated during the checkout process.
Reach out to us via the contact form for further information and assistance.
Couldn't load pickup availability
About the Product
Ultra-Low Distortion Differential Amplifier for High-Speed ADC & RF Signal Chains
The ADL5561ACPZ-R7 is a high-performance differential amplifier designed for RF/IF signal conditioning and high-speed ADC driving in demanding applications. With ultra-low noise (2.1 nV/√Hz) and exceptionally low distortion (HD2 < -90 dBc), this IC ensures precise signal amplification for 5G base stations, radar systems, medical imaging, and test equipment.
Low-Noise, High-Linearity Amplifier for 5G, Radar & Medical Imaging Systems
Featuring a flexible gain configuration (6dB, 12dB, 15.5dB), this LFCSP-16 packaged amplifier operates across an industrial temperature range (-40°C to +85°C), making it ideal for harsh environments. Its broadband performance (2.9GHz bandwidth) and single-supply operation (2.8V–3.6V) simplify integration into space-constrained PCB designs.
Engineers trust the ADL5561ACPZ-R7 for wireless communications, spectrum analyzers, and high-speed data acquisition due to its SiGe process reliability and excellent harmonic suppression.
ADL5561ACPZ-R7 Differential Amplifier IC Specifications:
| Feature | Specification |
|---|---|
| Model | ADL5561ACPZ-R7 |
| Type | Differential ADC Driver |
| Bandwidth | 2.9 GHz |
| Gain Options | 6 dB / 12 dB / 15.5 dB |
| Input Noise Density | 2.1 nV/√Hz (at 12dB gain) |
| Supply Voltage | 2.8V – 3.6V |
| Package | 16-Lead LFCSP (3×3 mm) |
| Operating Temperature | -40°C to +85°C |
| Applications | 5G, Radar, Ultrasound, Test Equipment |
