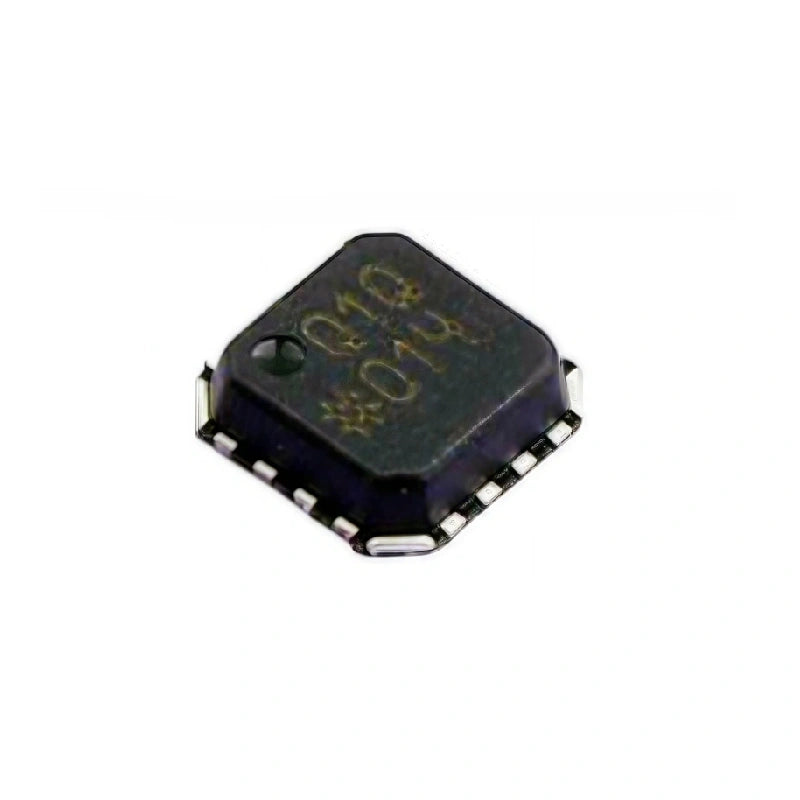

ADL5562ACPZ-R7 Differential Amplifier IC – 3.3GHz Low-Noise RF/IF ADC Driver LFCSP-16
Additional details
Shipping fees will be automatically calculated during the checkout process.
Reach out to us via the contact form for further information and assistance.
Couldn't load pickup availability
About the Product
Ultra-Low Distortion Broadband Amplifier for High-Speed Signal Chains
The ADL5562ACPZ-R7 is a premium-grade differential amplifier engineered for ultra-low distortion signal amplification in RF/IF chains and high-speed ADC interfacing. With an exceptional 3.3GHz bandwidth and input noise as low as 2.1 nV/√Hz, this IC delivers unmatched signal integrity for satellite communications, radar systems, and medical imaging equipment.
High-Linearity Differential ADC Driver for 5G, Radar & Medical Imaging
Featuring pin-configurable gain (6dB/12dB/15.5dB) and a single-supply operation (2.8V–3.6V), this LFCSP-16 packaged amplifier excels in high-density PCB designs while maintaining ultra-low IMD3 (-91 dBc @ 250 MHz) for precision signal processing. Its industrial-grade temperature range (-40°C to +85°C) ensures reliable performance in harsh environments.
Trusted by engineers for microwave links, ultrasound imaging, and high-speed data acquisition, the ADL5562ACPZ-R7 leverages SiGe process technology for superior linearity and noise performance.
ADL5562ACPZ-R7 Differential Amplifier IC Specifications:
| Feature | Specification |
|---|---|
| Model | ADL5562ACPZ-R7 |
| Type | Differential ADC Driver |
| Bandwidth | 3.3 GHz |
| Gain Options | 6 dB / 12 dB / 15.5 dB |
| Input Noise Density | 2.1 nV/√Hz (at 12dB gain) |
| IMD3 Performance | -91 dBc @ 250 MHz |
| Supply Voltage | 2.8V – 3.6V |
| Package | 16-Lead LFCSP (3×3 mm) |
| Operating Temperature | -40°C to +85°C |
| Applications | Satellite Comms, Radar, CT Scanners, Test Equipment |
