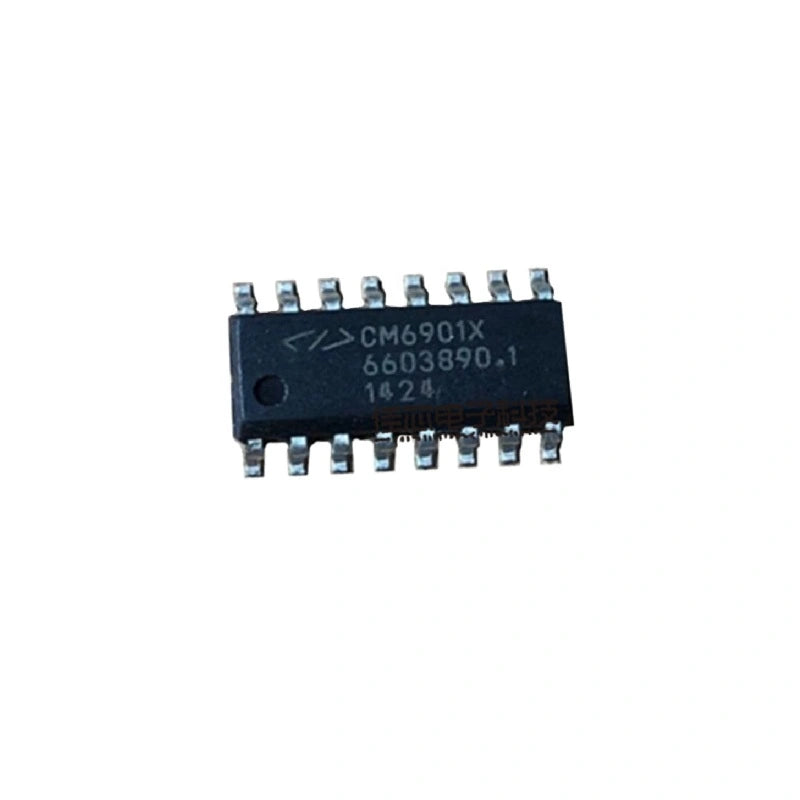

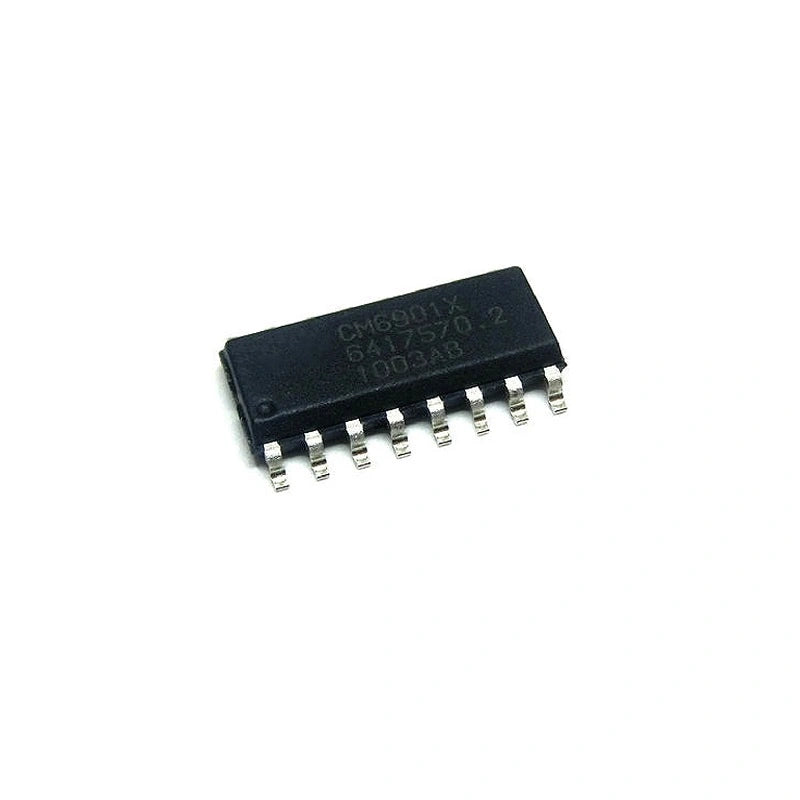

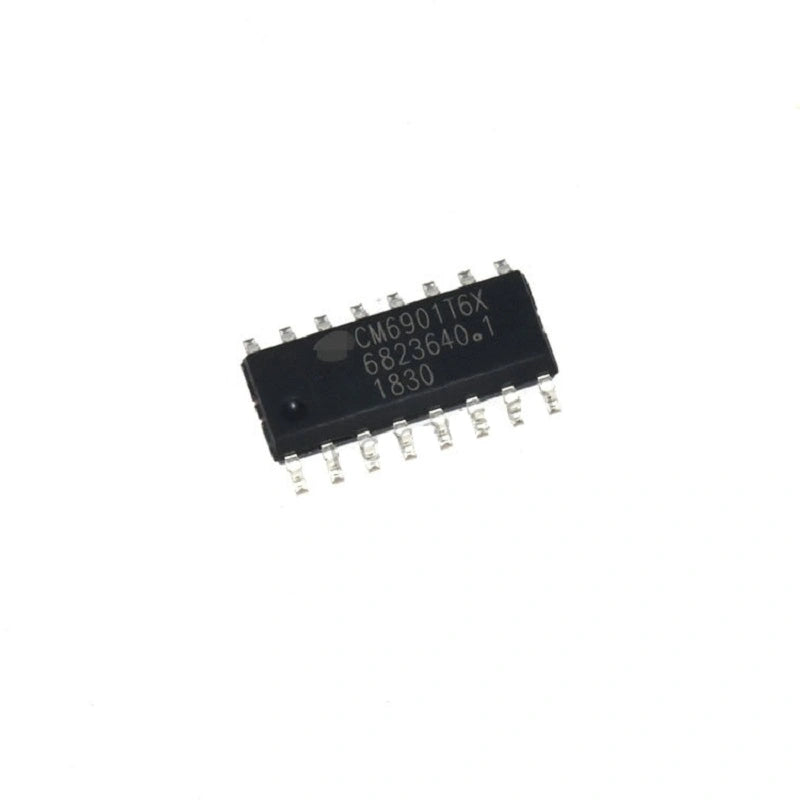

CM6901XISTR CM6901X High-Efficiency SMD Resonant Controller

Name: CM6901XISTR CM6901X High-Efficiency SMD Resonant Controller
Brand: LYS Shenzhen
Price: 1.0 CAD
Availability: InStock

$1.00 CAD

Sale Sold out

Shipping calculated at checkout.

Additional details

Shipping fees will be automatically calculated during the checkout process.

Reach out to us via the contact form for further information and assistance.

Product variants

Quantity

More payment options

Secure checkout with

About the Product

Achieve Superior Efficiency with the CM6901X Resonant Controller

Introducing the CM6901XISTR CM6901X SMD resonant controller, your key to superior efficiency and optimal performance in offline DC-DC conversion applications. Designed with precision and functionality in mind, this resonant controller delivers outstanding light load regulation capabilities through its Light load PWMING function.

Optimal Performance for Offline DC-DC Conversion

The CM6901XISTR CM6901X SMD features SLS, SRC/LLC + SR resonant controller and synchronous rectification, allowing it to operate in both SRC and LLC regions for maximum efficiency. Its SR Ideal Diode PWMING reduces pulse-width when switching frequency drops below the highest resonant point frequency fr1, ensuring efficient operation. The constant voltage feedback loop with a precision 2.5V VFB reference guarantees reliability and efficiency.

CM6901XISTR Technical Features:

Resonant Controller Type	SLS, SRC/LLC + SR
Light Load Regulation	Light load PWMING function
Ideal Diode PWMING	SR Ideal Diode PWMING for enhanced efficiency
Voltage Feedback Reference	Precision 2.5V VFB reference
Gate Drivers	2 Gate Drivers with Typical Peak Drive from 12V
Soft Start Capability	Soft start with shutdown function
Auto-Restart	Auto-restart during current LIMIT
Hold-up Time	20ms with reasonable Bulk Cap

View Product Details
