  • DMP34M4SPS-13 P-Channel MOSFET for Antminer S11, S15, T15 Cryptominers
  • DMP34M4SPS-13 P-Channel MOSFET for Antminer S11 S15 T15 Crypto miners Repair
  • DMP34M4SPS-13 P-Channel MOSFET for Antminer S11 S15 T15 Crypto miners
1 3

DMP34M4SPS TPCA8128 MOSFET P-Channel 30V 34A 8SOP Hashboard replacement IC Antminer S11 S15 T15

$0.85 USD
$0.85 USD
Sale Sold out
Shipping calculated at checkout.
Get Business Pricing

Additional details

Shipping fees will be automatically calculated during the checkout process.

Reach out to us via the contact form for further information and assistance.
Secure checkout
SSL encryption & invoicing options
Worldwide shipping
Export-ready customs documentation
QC-tested spare parts
Specialized in ASIC miner hardware
Technical support
Assistance from mining engineers

Have questions about this product? Our team is here to help — just reach out on WhatsApp.

💬 Contact Us on WhatsApp

About the Product

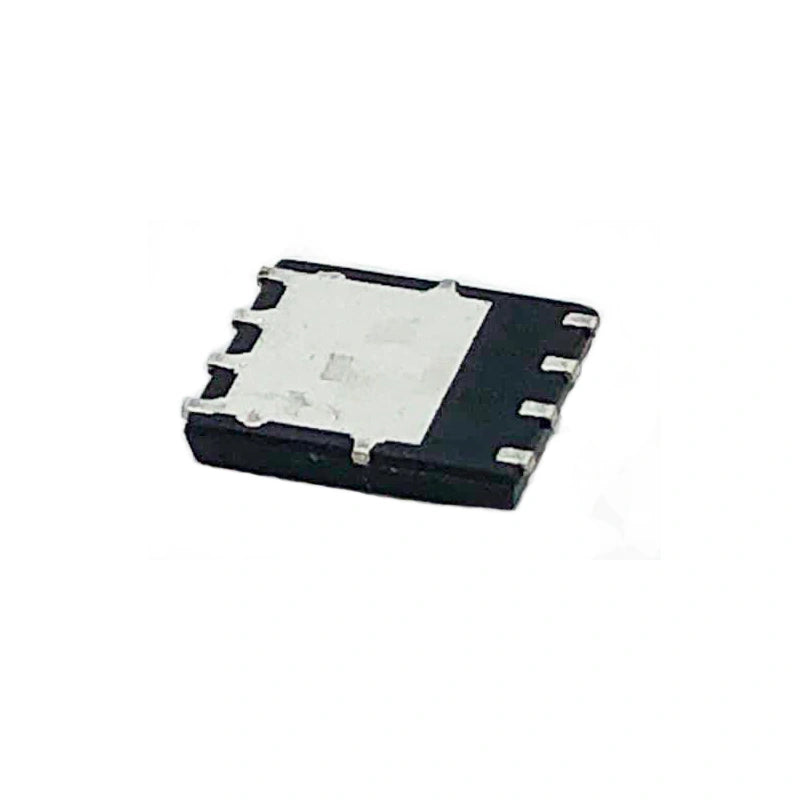

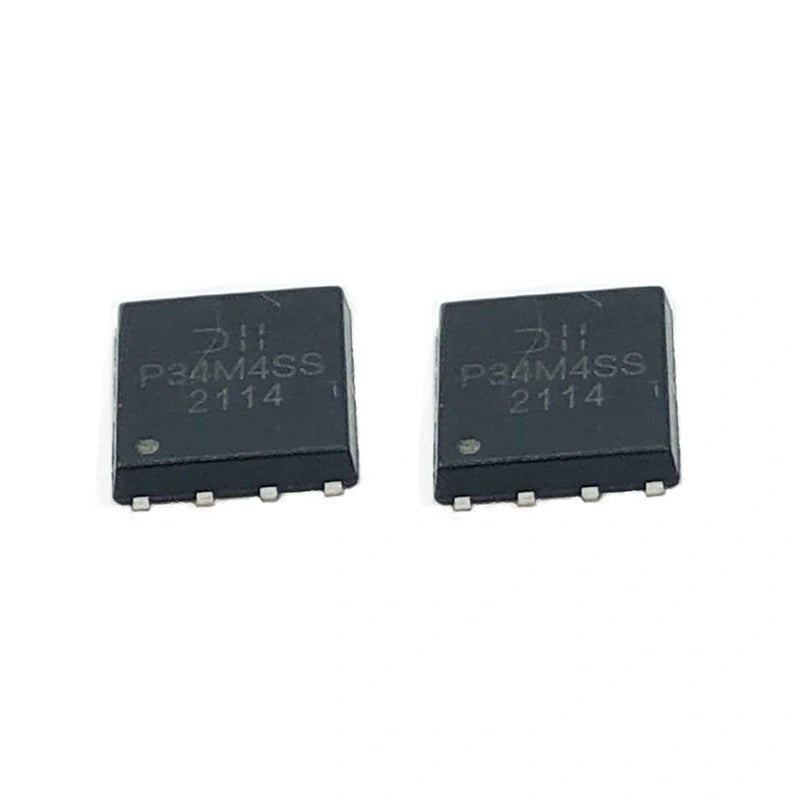

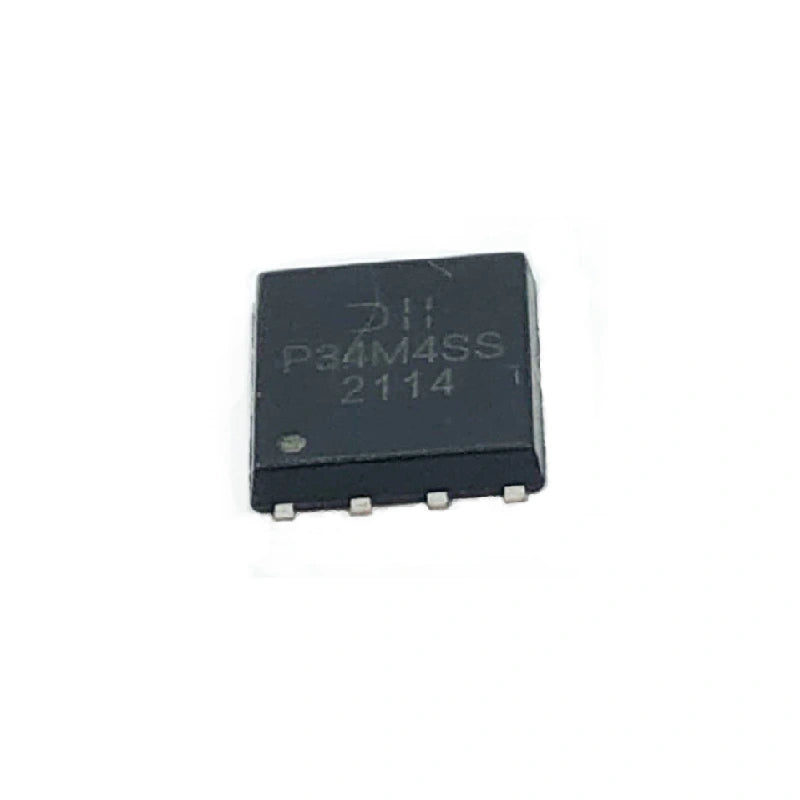

High-Quality DMP34M4SPS-13 P-Channel MOSFET for Antminer S11, S15, T15 Cryptominers

Enhance the performance of your Antminer S11, S15, and T15 series cryptominers with the high-quality DMP34M4SPS-13 P-Channel MOSFET from LYS-SZ. Designed specifically for cryptomining applications, this MOSFET offers exceptional power management, minimizing RDS(ON) and delivering excellent switching performance.

Efficient and Reliable DMP34M4SPS-13 P-Channel MOSFET for Cryptomining Applications

The DMP34M4SPS-13 MOSFET features a drain to source voltage (Vdss) of 30V and a continuous drain current (Id) of 34A at 25°C (Ta), making it ideal for handling the demanding power requirements of cryptomining equipment. Its low drive voltage requirements and maximum Rds On of 4.8mOhm @ 17A, 10V ensure efficient power flow and reduced power losses.



DMP34M4SPS Technical Features:

Category

Discrete Semiconductor Products

Transistors - FETs, MOSFETs - Single

Series

U-MOSVI

Package

Tape & Reel (TR)

Part Status

Obsolete

FET Type

P-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

30 V

Current - Continuous Drain (Id) @ 25°C

34A (Ta)

Drive Voltage (Max Rds On, Min Rds On)

4.5V, 10V

Rds On (Max) @ Id, Vgs

4.8mOhm @ 17A, 10V

Vgs(th) (Max) @ Id

2V @ 500µA

Gate Charge (Qg) (Max) @ Vgs

115 nC @ 10 V

Vgs (Max)

+20V, -25V

Input Capacitance (Ciss) (Max) @ Vds

4800 pF @ 10 V

FET Feature

-

Power Dissipation (Max)

1.6W (Ta), 45W (Tc)

Operating Temperature

150°C (TJ)

Mounting Type

Surface Mount

Package / Case

8-PowerVDFN

Base Product Number

TLP731
