FAN7380MX Half-Bridge Gate Driver IC Non-Inverting 8-SOIC for Power Supply Unit
Couldn't load pickup availability
Have questions about this product? Our team is here to help — just reach out on WhatsApp.
💬 Contact Us on WhatsAppAbout the Product

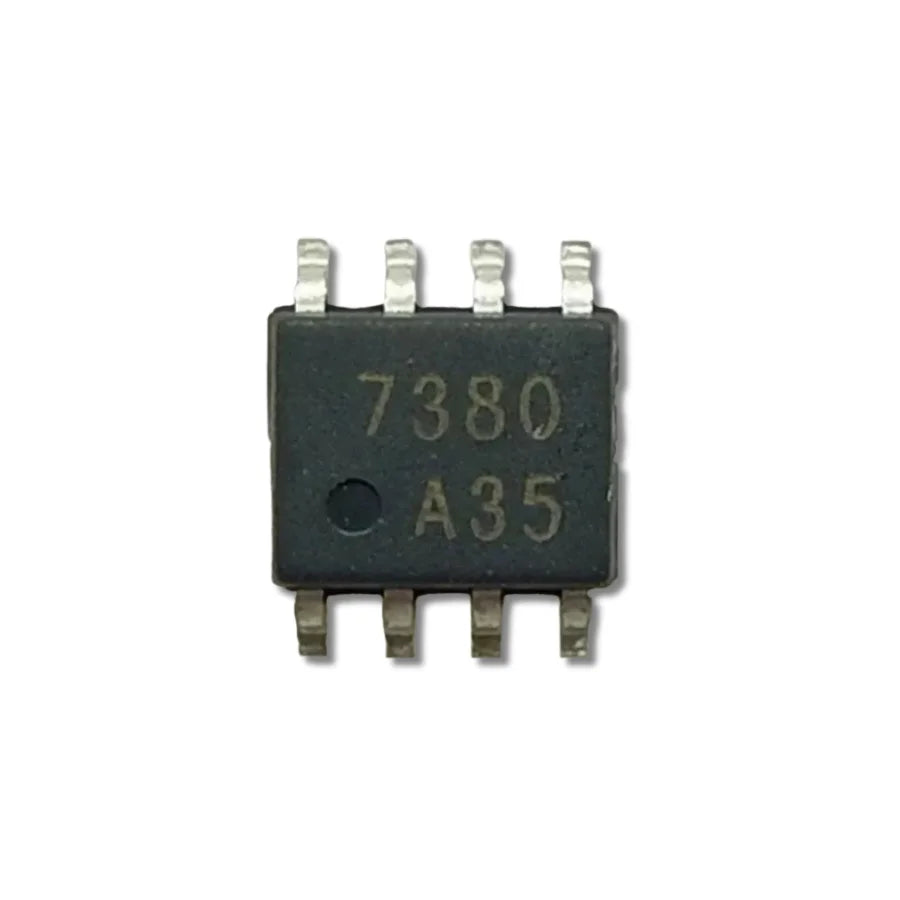

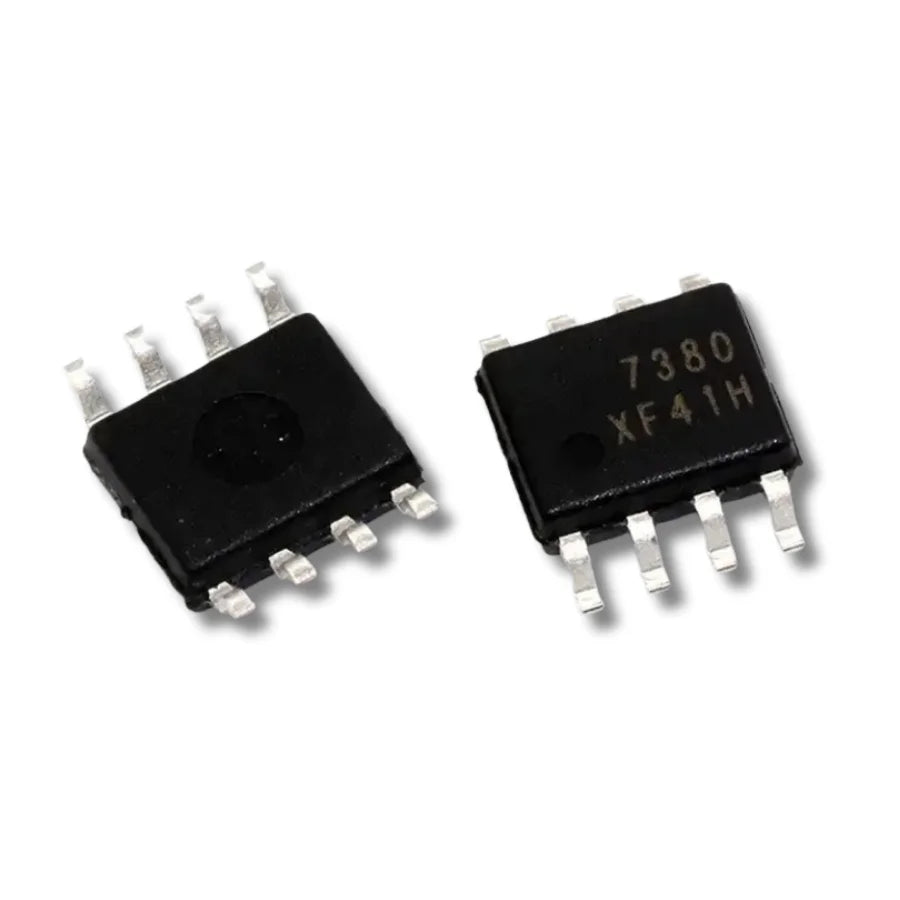

FAN7380MX Half-Bridge Gate Driver IC - High Performance for Power Management
Looking for an efficient and reliable gate driver for your power management applications? The FAN7380MX Half-Bridge Gate Driver IC is an ideal and versatile solution for your requirements. This integrated circuit(IC) is designed for driving IGBT and N-channel MOSFET power devices in half-bridge configuration.
Efficient and Reliable Gate Drivers for IGBT and N-Channel MOSFET
With independent channel type and number of drivers, the FAN7380MX offers high performance with minimal power consumption. Its non-inverting input type and rise/fall time (Typ) of 230ns/90ns make it a perfect pick for driving high-frequency switching applications. The gate driver is assembled in a surface-mountable 8-SOIC package, which ensures easy and secure installation.
FAN7380MX Gate Driver Features:
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Gate Drivers | |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.5V |
| Current - Peak Output (Source, Sink) | 90mA, 180mA |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 230ns, 90ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Base Product Number | FAN7380 |
