Handheld Smart Resistor Capacitor SMD component Test Tweezers

Name: Handheld Smart Resistor Capacitor SMD component Test Tweezers
Brand: LYS Shenzhen
Price: 43.0 CAD
Availability: InStock

$43.00 CAD

Sale Sold out

Shipping calculated at checkout.

Additional details

Shipping fees will be automatically calculated during the checkout process.

Reach out to us via the contact form for further information and assistance.

Product variants

Quantity

Secure checkout with

About the Product

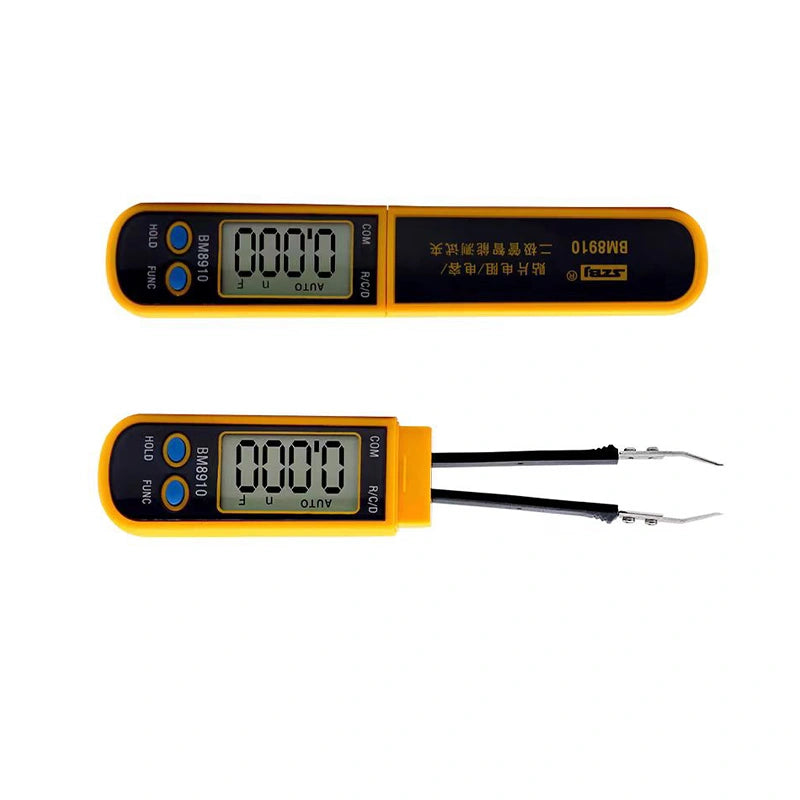

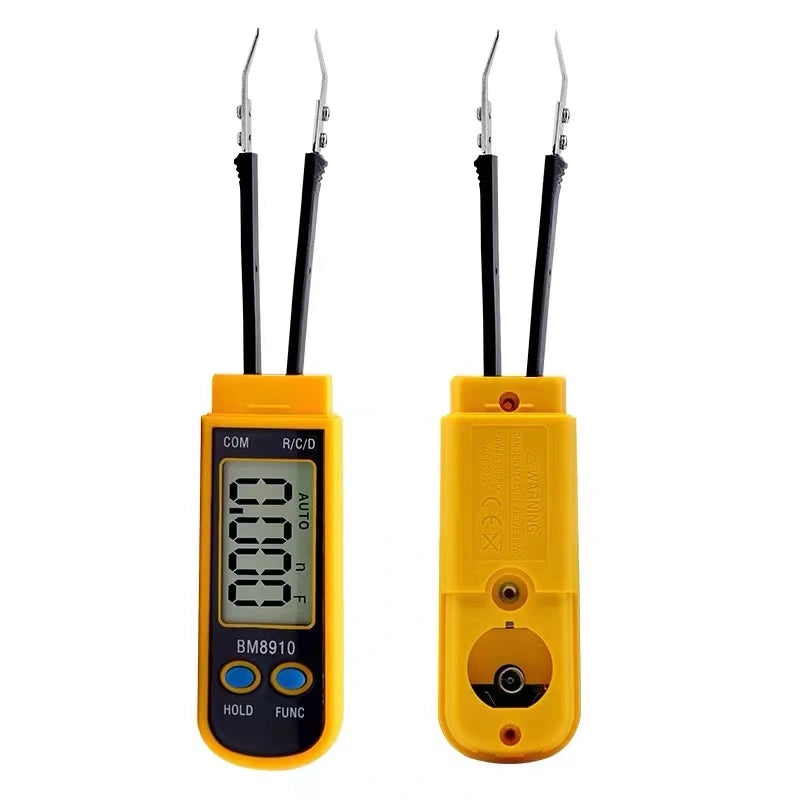

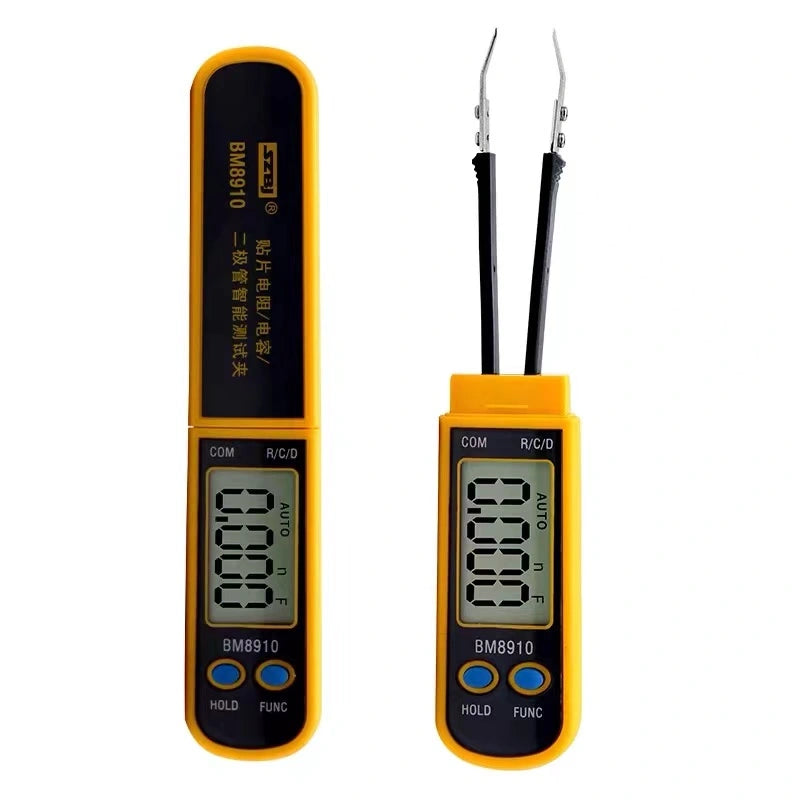

Handheld Smart Resistor Capacitor SMD component Test Tweezers

Handheld Smart Resistor Capacitor SMD Test Tweezers The SMD electronic component test clip is a hand-held, battery-operated repair professional gadget designed to automatically identify and accurately measure resistance, capacitance, and diodes. Using high-quality chips, high precision, stable and reliable.

The "FUNC" button is used to manually select the test mode, the 1.5" large LCD screen, the maximum display is 2999, the reading is clear and no ghosting, if there is no button operation within 10 minutes, it will automatically turn off. Made of high-quality materials, sturdy and durable, use long life, small size, easy to carry and store. The related electronic components of the miner's hash board can be easily identified and repaired.

SMD component Test Tweezers Features:

Automatic resistance / capacitance / diode scan
Data hold and overload indication functions
Battery under-voltage indication

Item Type	Resistance Capacitance Tester
Model	BM8910
Resistance range	3k / 30k / 300k ± (1% rdg + 5dgt); 3MΩ / 30MΩ ± (2%rdg + 5dgt)
Capacitance range	3n / 30n / 300n / 3u / 30 / 300uF ± ( 3% rdg + 5dgt); 3mF / 30mF ± ( 5%rdg + 5dgt)
Diode	open circuit voltage 2.8V, test current 1mA
Battery	3V CR2032 lithium battery (battery not included in delivery)
Operating temperature and humidity	0-40°C (32-104°F) <80%RH
Storage temperature and humidity	0-50°C (32-122°F) <85%RH
