HC-SR501 Infrared PIR Motion Sensor Module for Arduino Raspberry Pi, Adjustable Delay Time
Additional details
Shipping fees will be automatically calculated during the checkout process.
Reach out to us via the contact form for further information and assistance.
Couldn't load pickup availability
About the Product

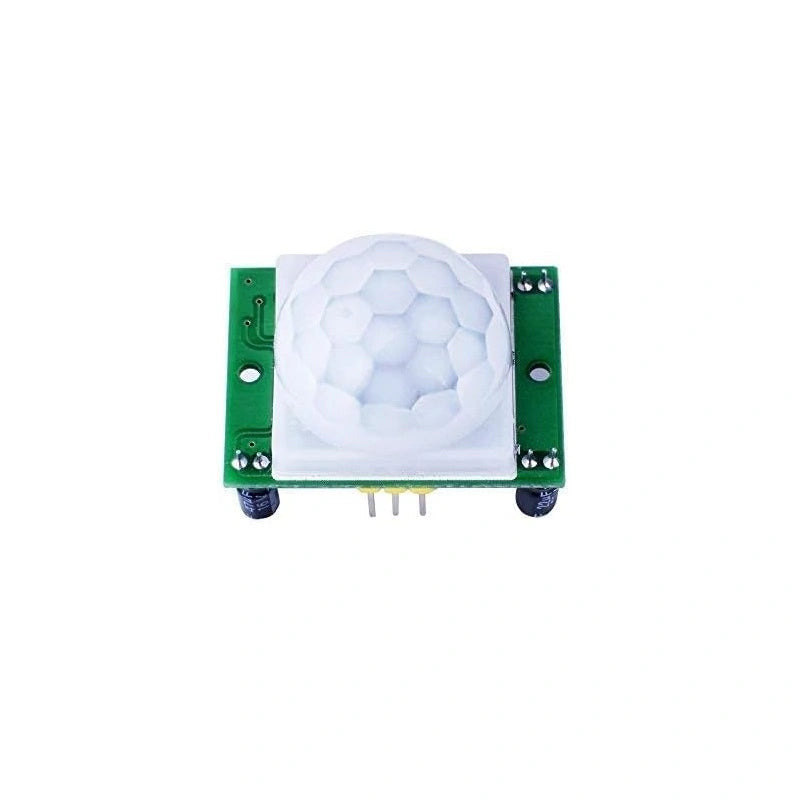

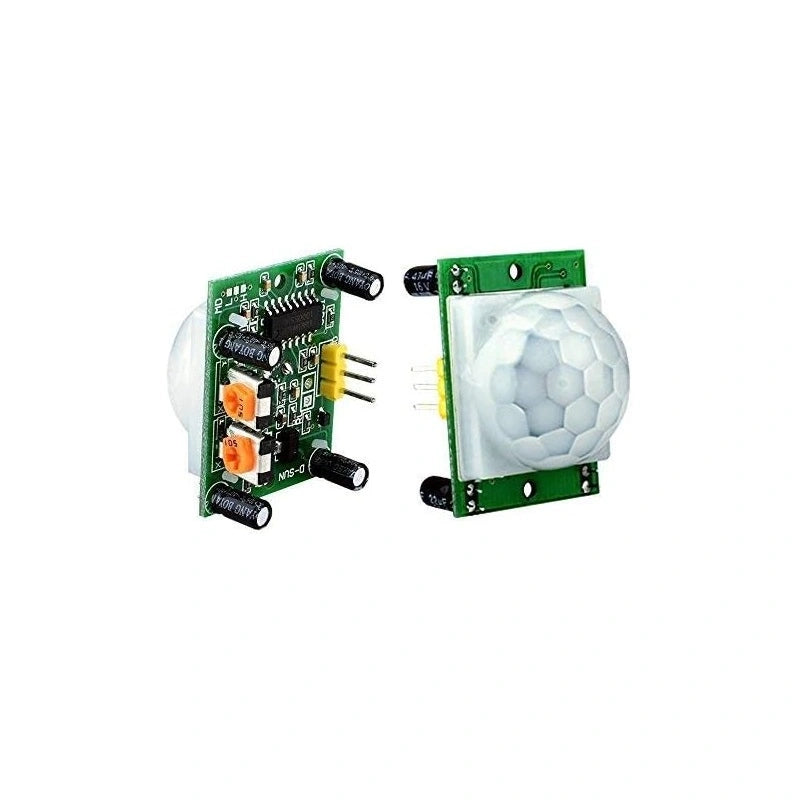

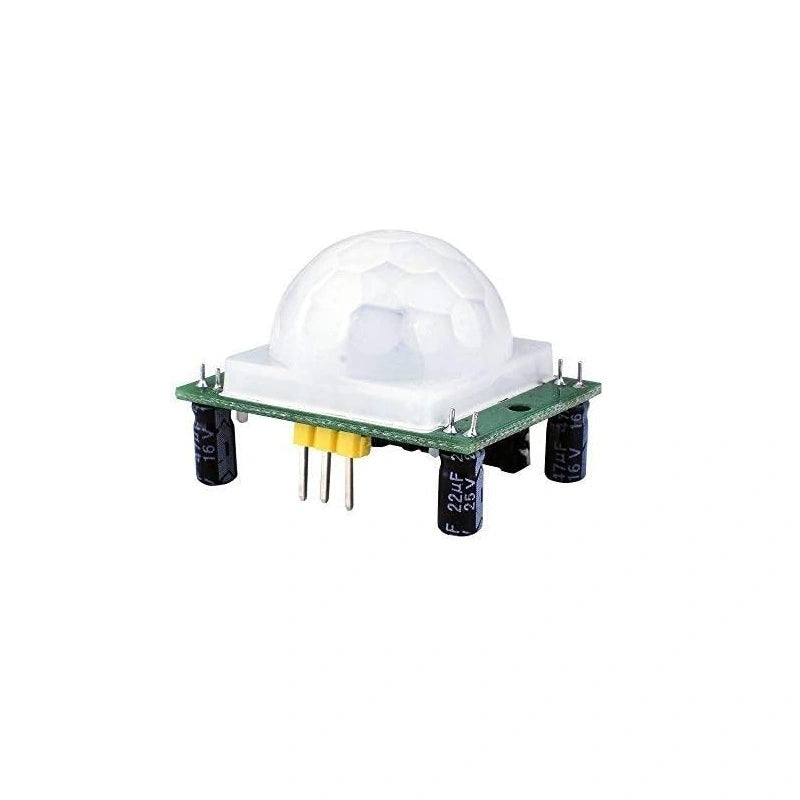

HC-SR501 Infrared PIR Motion Sensor Module
Adjustable Delay Infrared Motion Sensor for Arduino and Raspberry Pi
Infrared PIR Motion Sensor Module designed for Arduino and Raspberry Pi. Operating with a voltage range of DC 4.5-20V, this sensor features adjustable delay time from 5-18 seconds, making it ideal for various applications such as security products, human body sensor toys, and industrial automation. With a compact board size of 32mm*24mm and a cone angle sensor of less than 100°, this sensor offers precise and reliable motion detection for your projects.
Infrared PIR Motion Sensor Module: Reliable Detection
| Feature | Specification |
|---|---|
| Operating Voltage Range | DC 4.5-20V |
| Quiescent Current | <50uA |
| Trigger | L can not be repeated trigger/H can be repeated trigger(Default repeated trigger) |
| Delay Time | 5-18S (adjustable) |
| Board Dimensions | 32mm*24mm |
| Angle Sensor | <100° cone angle |
| Lens Size Sensor | Diameter: 23mm (Default) |
