LTC3807EUDC LGSG Buck Regulator Positive Output Step-Down DC-DC Controller

Name: LTC3807EUDC LGSG Buck Regulator Positive Output Step-Down DC-DC Controller
Brand: LYS Shenzhen
Price: 11.9 USD
Availability: InStock

$11.90 USD

$11.90 USD $14.90 USD

Sale Sold out

Shipping calculated at checkout.

🇺🇸🇪🇺 USA & European Union: DDP shipping — all import duties & taxes included, no hidden fees.

🌍 Rest of world: Ships from China — local customs fees may apply on delivery.

Get Business Pricing

Product variants

Quantity

Secure checkout

SSL encryption & invoicing options

Worldwide shipping

Export-ready customs documentation

QC-tested spare parts

Specialized in ASIC miner hardware

Technical support

Assistance from mining engineers

Have questions about this product? Our team is here to help — just reach out on WhatsApp.

💬 Contact Us on WhatsApp

About the Product

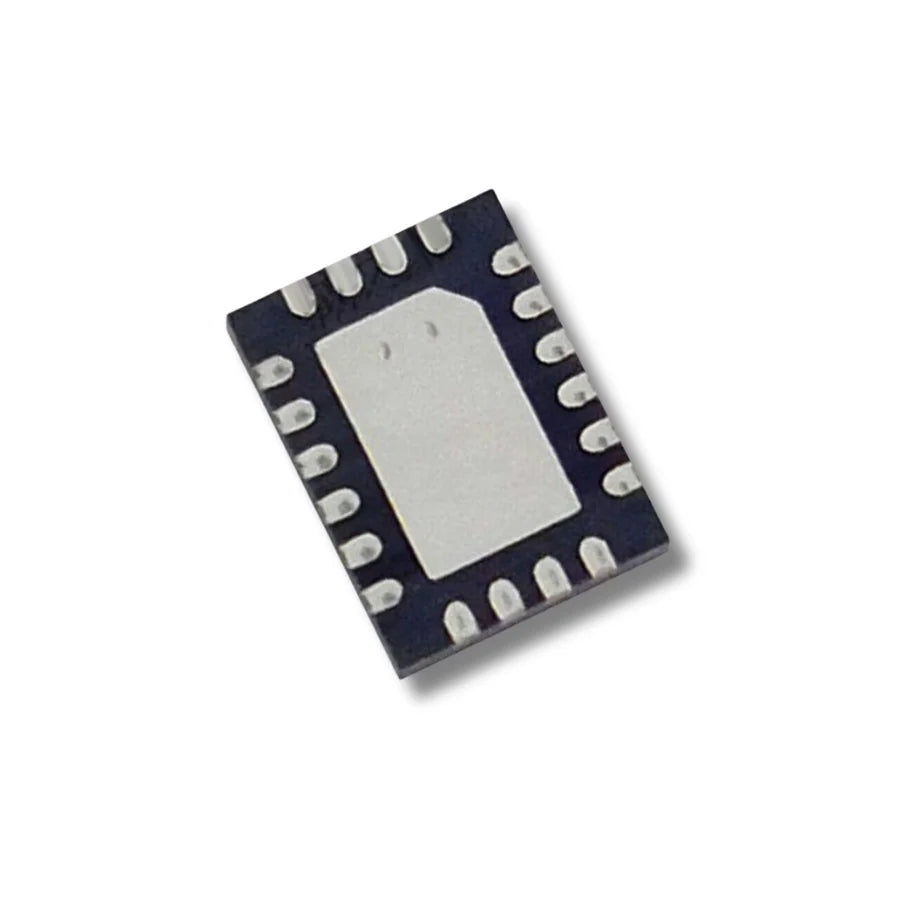

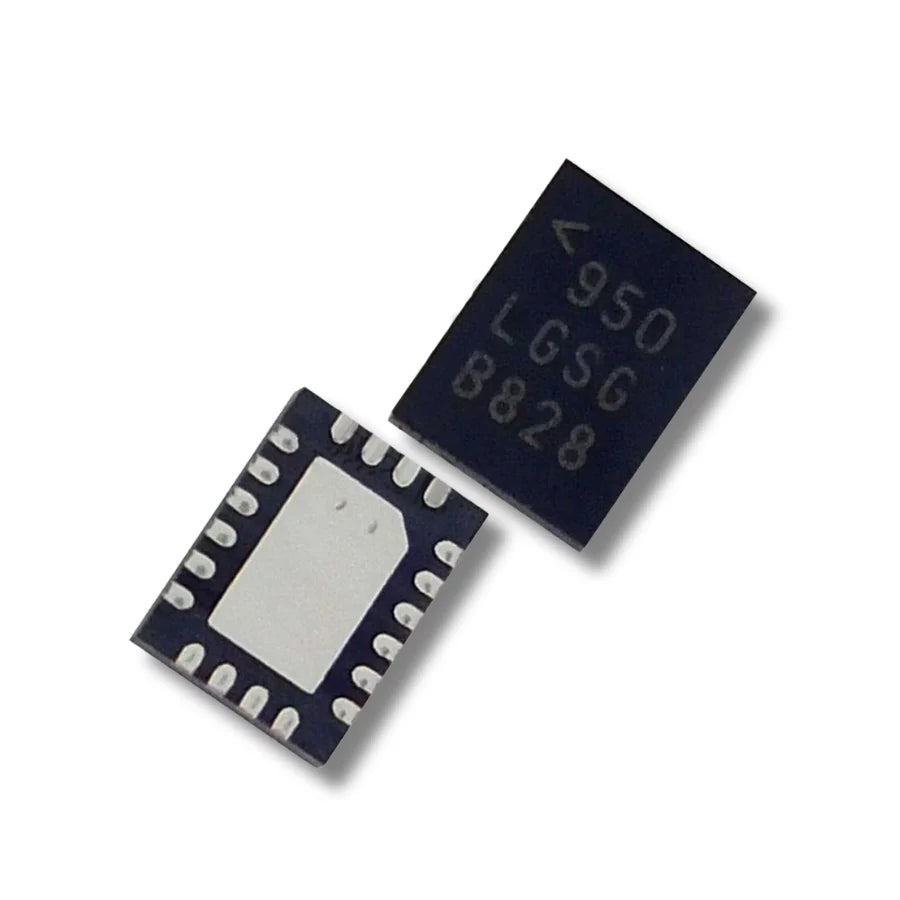

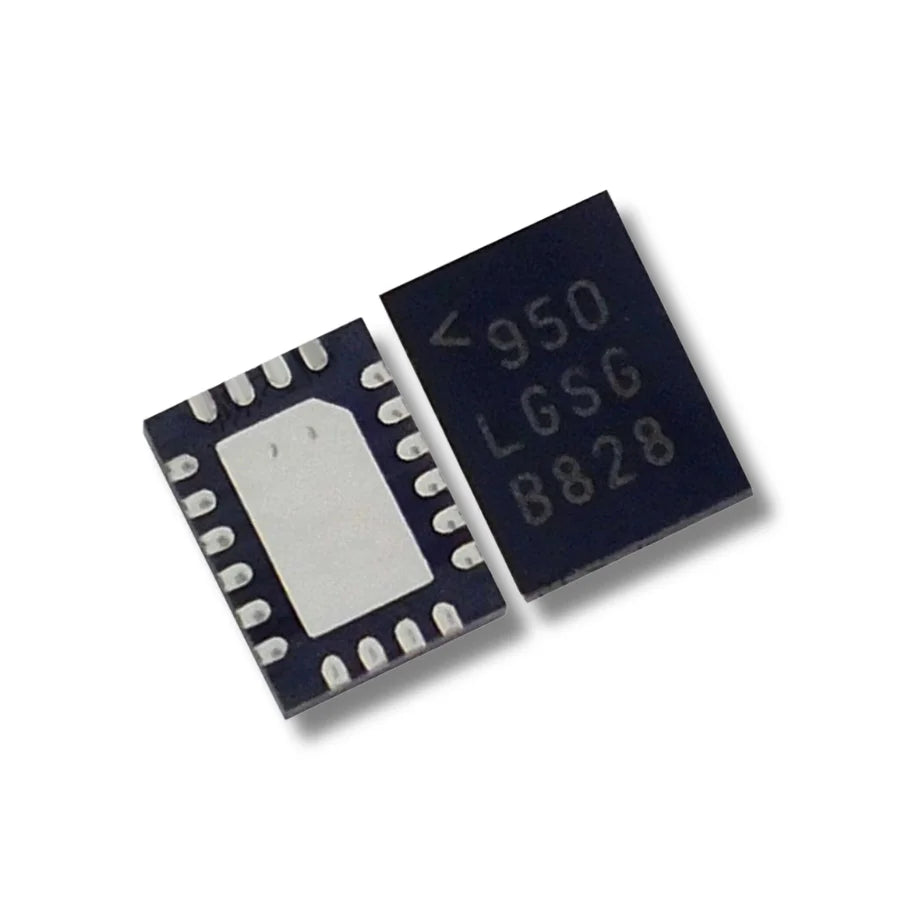

Advanced LTC3807EUDC Buck Regulator for Antminer L3+ Hashboard

Introducing the LTC3807EUDC LGSG Buck Regulator, an advanced and low-IQ synchronous step-down controller designed specifically for the Antminer L3+ hashboard. With its exceptional features and precise performance, this regulator ensures optimal power delivery for efficient mining operations. The LTC3807EUDC is part of the LTC3807 family, known as the 714 LGSG, and offers a wide input voltage range of 4V to 38V, making it highly versatile for various power supply configurations.

Efficient Step-Down DC-DC Controller IC for Enhanced Performance

The LTC3807EUDC features a synchronous power MOSFET stage, which maximizes power efficiency. It includes a TRACK/SS pin for ramping the output voltage during start-up, a precision 0.8V reference for accurate voltage control, and a power good output indicator for monitoring system status.

LTC3807EUDC Technical Features:

Category	Integrated Circuits (ICs)
Category	PMIC - Voltage Regulators - DC DC Switching Controllers
Package	Tape & Reel (TR)
Part Status	Active
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Phases	1
Voltage - Supply (Vcc/Vdd)	4V ~ 38V
Frequency - Switching	50kHz ~ 900kHz
Duty Cycle (Max)	0.99
Synchronous Rectifier	Yes
Clock Sync	No
Control Features	Current Limit, Enable, Frequency Control, Soft Start, Tracking
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	20-WFQFN Exposed Pad
Number of Outputs	1
Base Product Number	LTC3807
