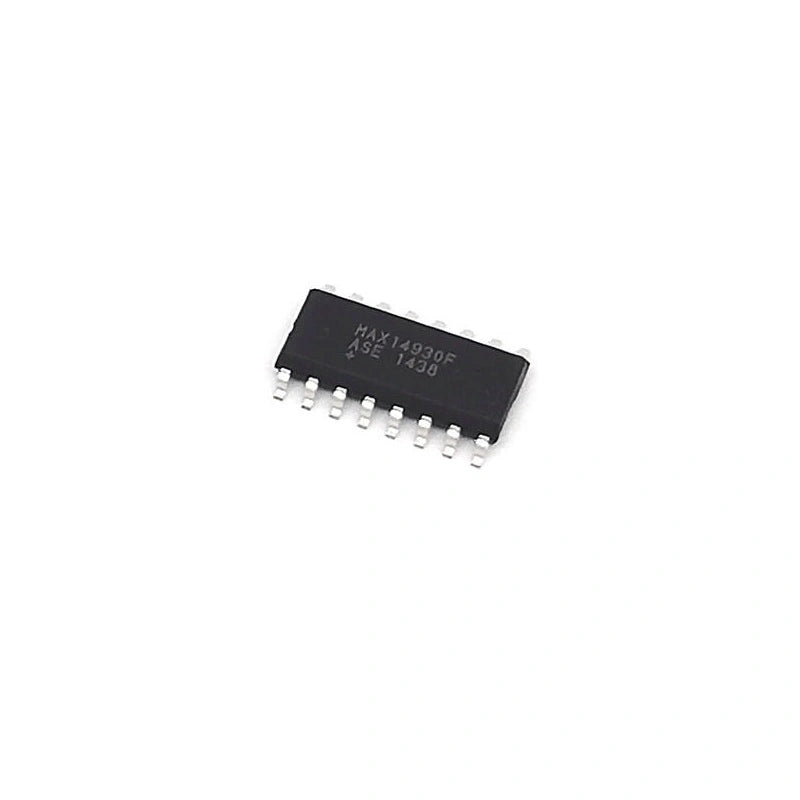

MAX14930FASE+ SOP SMD Digital Isolator for Avalon 1047 1066 Hashboard
Additional details
Shipping fees will be automatically calculated during the checkout process.
Reach out to us via the contact form for further information and assistance.
Couldn't load pickup availability
About the Product
Transform Your Cryptocurrency Mining Experience with MAX14930FASE+ Digital Isolator
Upgrade your hash board and revolutionize your cryptocurrency mining operations with the MAX14930FASE+ SOP SMD digital isolator. This cutting-edge isolator is specifically designed to enable high-speed data rates of 150Mb/s, ensuring efficient and reliable communication between Avalon 10 series hash boards and Avalon 821 hash boards.
Achieve Faster ASIC Chip Signal Communications with Reliable Isolation
With its wide output power range of 1.71-5.5V and default low level, the MAX14930FASE+ digital isolator guarantees consistent and reliable signal transfer, eliminating disruptions and maximizing your earning potential on the blockchain. Experience faster ASIC chip signal communications and enjoy seamless mining performance.
MAX14930FASE+Technical Features:
|
Category |
Isolators |
|
Digital Isolators |
|
|
Technology |
Capacitive Coupling |
|
Type |
General Purpose |
|
Isolated Power |
No |
|
Number of Channels |
4 |
|
Inputs - Side 1/Side 2 |
4/0 |
|
Channel Type |
Unidirectional |
|
Voltage - Isolation |
2750Vrms |
|
Common Mode Transient Immunity (Min) |
25kV/µs (Typ) |
|
Data Rate |
150Mbps |
|
Propagation Delay tpLH / tpHL (Max) |
7.5ns, 7.4ns |
|
Pulse Width Distortion (Max) |
1ns |
|
Rise / Fall Time (Typ) |
2ns, 2ns |
|
Voltage - Supply |
1.71V ~ 5.5V |
|
Operating Temperature |
-40°C ~ 125°C |
|
Mounting Type |
Surface Mount |
|
Package / Case |
16-SOIC (0.154", 3.90mm Width) |
|
Base Product Number |
MAX14930 |
