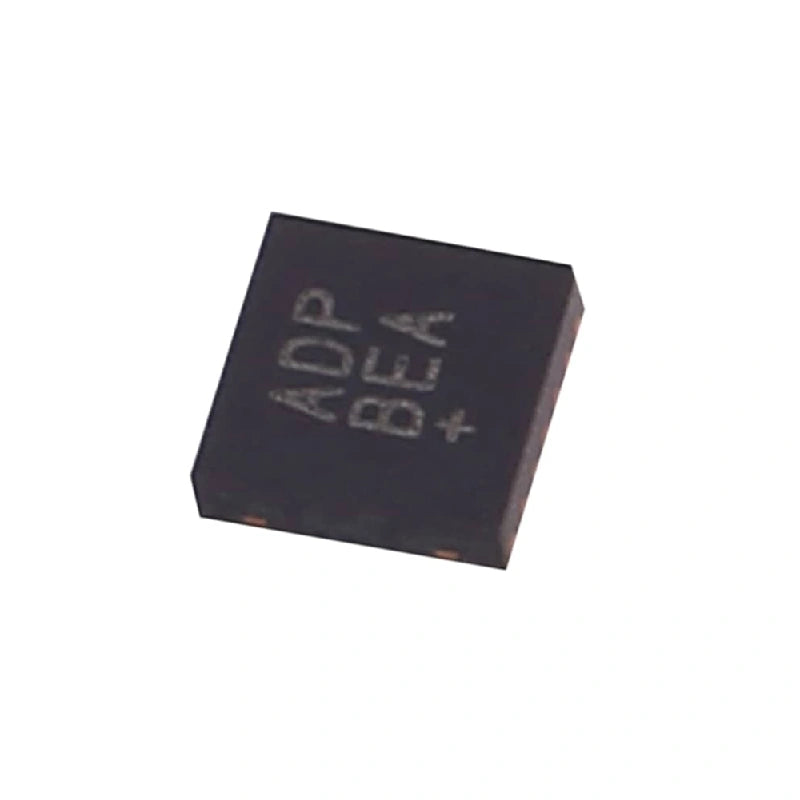

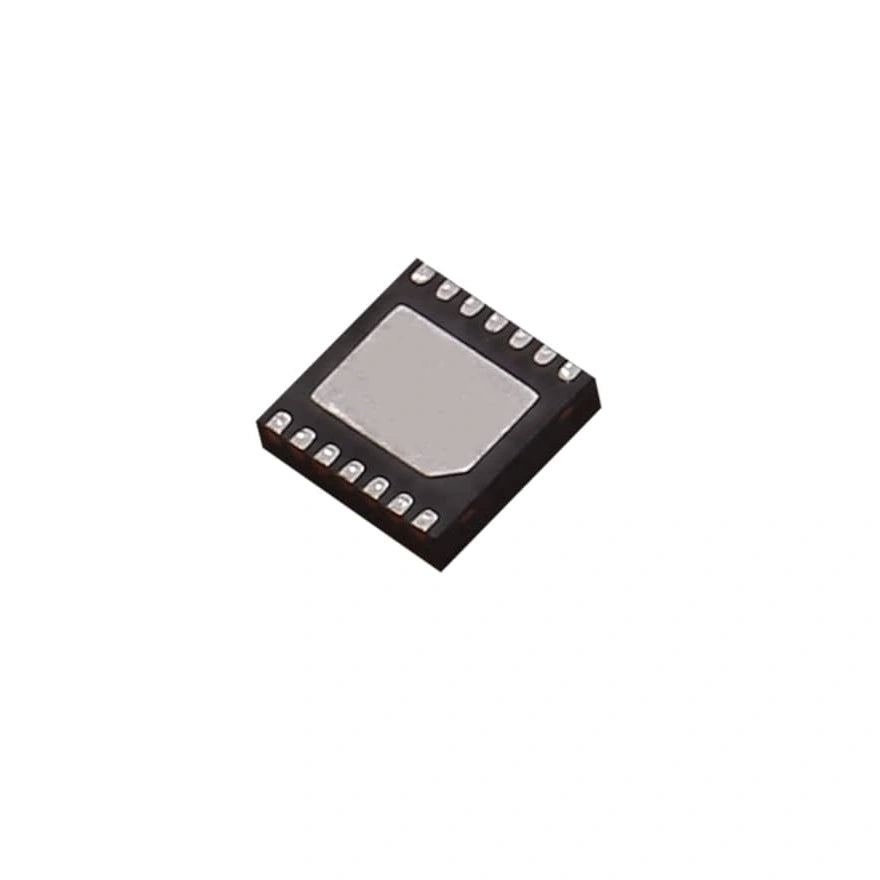

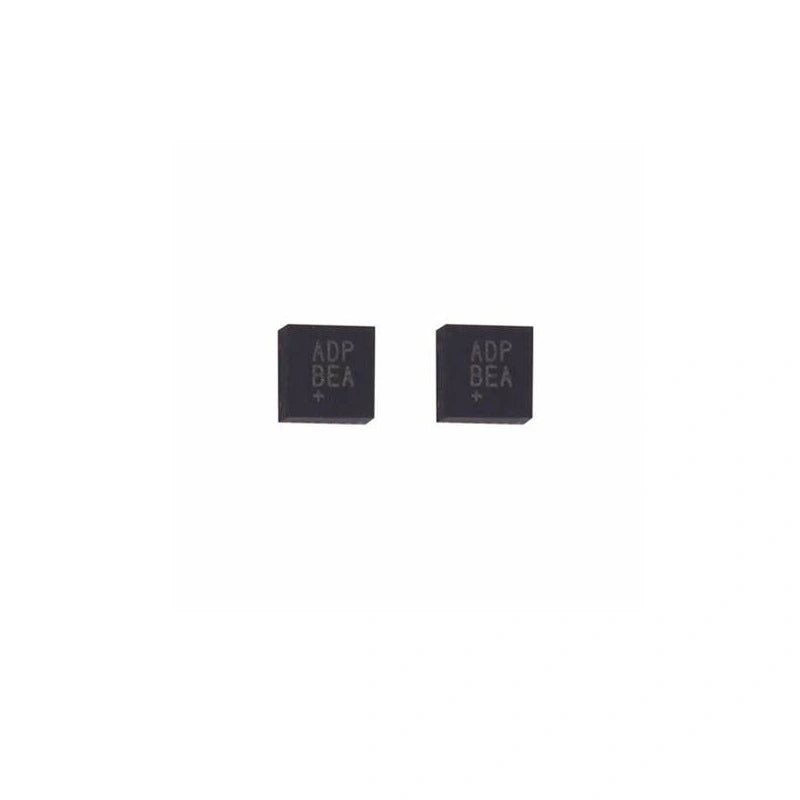

MAX15026 ADP MAX15026BETD DC-DC Synchronous Buck Controller

$2.00 CAD
$2.00 CAD
Sale Sold out
Shipping calculated at checkout.

Additional details

Shipping fees will be automatically calculated during the checkout process.

Reach out to us via the contact form for further information and assistance.

Secure checkout with
  • Visa
  • Mastercard
  • American Express
  • Apple Pay
  • Union Pay
  • Maestro
  • Bitcoin
  • Discover

About the Product

MAX15026 ADP MAX15026BETD DC-DC Synchronous Buck Controller - The Electronic Genius Suggested

Enhance your electronic devices with MAX15026 ADP MAX15026BETD DC-DC Synchronous Buck Controller. Designed to cater to your every need, this synchronous step-down controller operates on a voltage range of 4.5V to 28V and can provide an adjustable output voltage from 85% of the input voltage down to 0.6V- supporting loads up to 25A. This device ensures effortless monotonic start-up to the pre-bias bus without discharging the output, and features an adaptive internal digital soft-start furthermore, the MAX15026 can adjust the switching frequency from 200kHz to 2MHz with an external resistor.

Charge-up Your Electronics with MAX15026 ADP MAX15026BETD DC-DC Synchronous Buck Controller

Thanks to its adaptive synchronous rectification, the MAX15026 eliminates the need for an external freewheeling Schottky diode, saving you money in the process. What's more, it also utilizes the on-resistance of the external low-side MOSFET as a current-sense element, eliminating the need for a current-sense resistor.

This will protect the DC-DC components from damage during output overload conditions or output short-circuit faults without the need for an external current sense resistor. With its wide range of applications, the MAX15026 is perfect for set-top boxes, LCD TV secondary supplies, switches/routers, power modules, DSP power supplies, and points-of-load regulators. Love your electronics?



Technical features:

Category

Integrated Circuits (ICs)

Power Management (PMIC)

DC DC Switching Controllers

Mfr

Analog Devices Inc./Maxim Integrated

Output Type

Transistor Driver

Function

Step-Down

Output Configuration

Positive

Topology

Buck

Number of Outputs

1

Output Phases

1

Voltage - Supply (Vcc/Vdd)

4.5V ~ 28V

Frequency - Switching

200kHz ~ 2MHz

Duty Cycle (Max)

0.88

Synchronous Rectifier

Yes

Clock Sync

No

Control Features

Current Limit, Enable, Frequency Control

Operating Temperature

-40°C ~ 85°C (TA)

Mounting Type

Surface Mount

Package / Case

14-WFDFN Exposed Pad

Base Product Number

MAX15026
