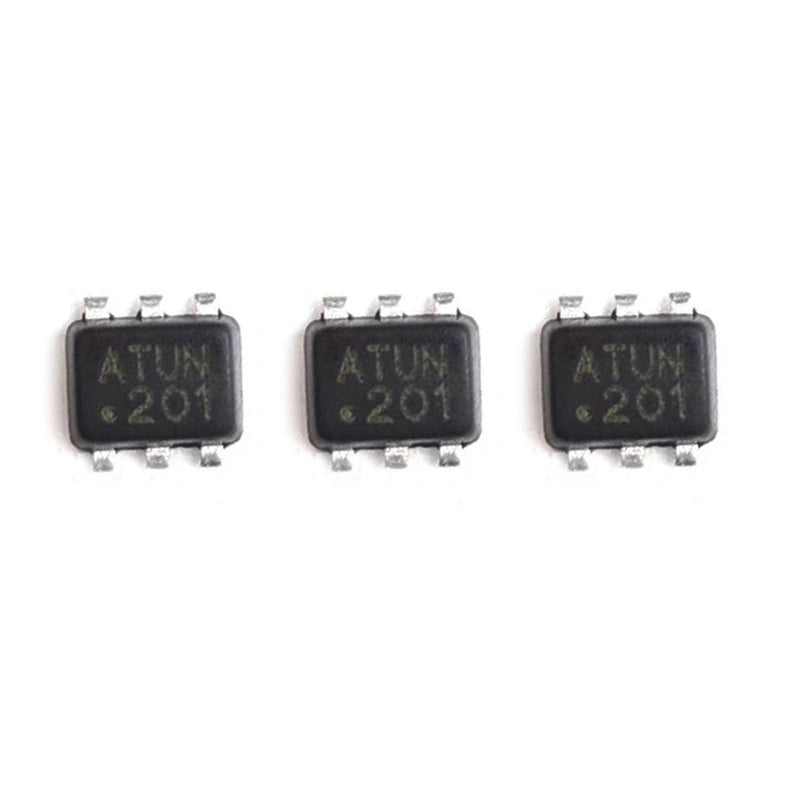

MP1476GTF ATUN SOT563 Buck Converter with Internal Power MOSFET
Additional details
Shipping fees will be automatically calculated during the checkout process.
Reach out to us via the contact form for further information and assistance.
Couldn't load pickup availability
About the Product

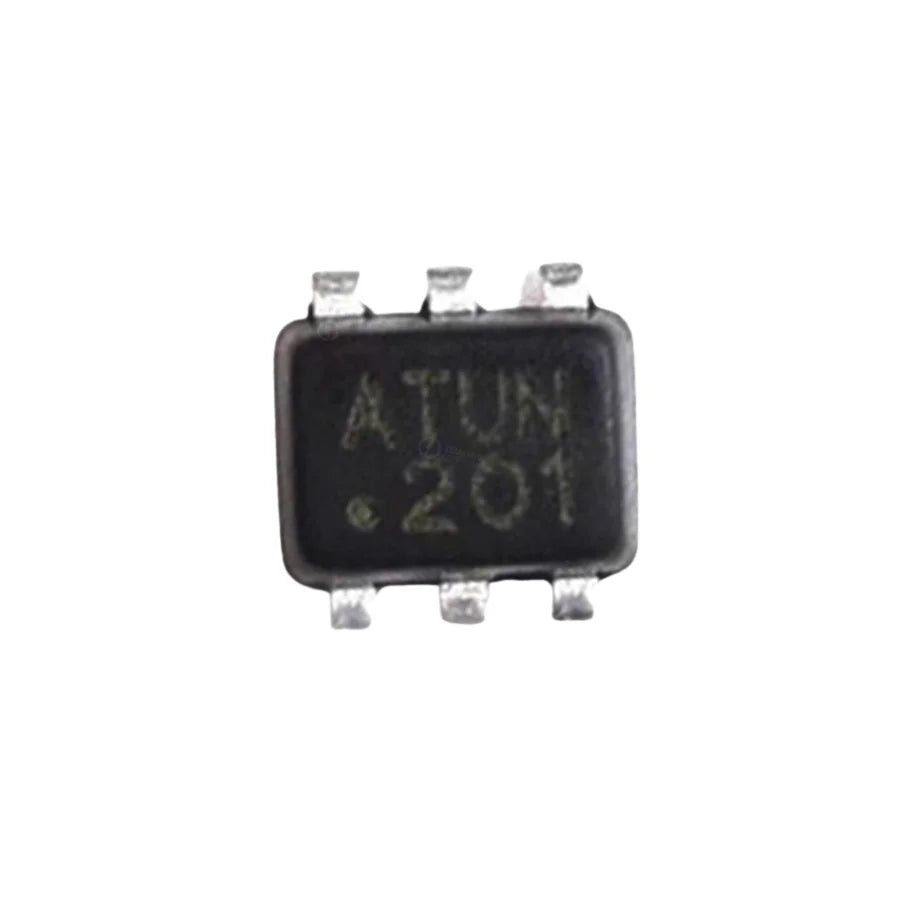

Efficient and Versatile MP1476GTF ATUN Synchronous Buck Converter
Upgrade your power conversion capabilities with the MP1476GTF ATUN SOT563 Buck Converter. This fully integrated, high-frequency, synchronous, rectifying switch-mode converter features internal power MOSFETs for efficient and reliable operation. With a wide operating input range of 4.2V to 18V, this converter achieves a continuous output current of 2A, ensuring excellent load and line regulation.
Power Up Your Devices with the MP1476GTF ATUN Buck Converter
The MP1476GTF ATUN operates in synchronous mode, maximizing efficiency across the output current load range. It offers protection features such as short circuit protection (SCP), overcurrent protection (OCP), under-voltage protection (UVP), and thermal shutdown, safeguarding your devices and ensuring reliable performance.
The MP1476GTF ATUN incorporates internal soft start (SS) for controlled startup, and its output is adjustable in the range of 0.8V, providing flexibility for various applications. From surveillance cameras to digital set-top boxes, flat screen TVs, monitors, and general-purpose devices, this buck converter is a versatile solution for your power needs.
MP1476GTF Technical Features:
| Feature | Details |
|---|---|
| Operating Input Range | 4.2V to 18V |
| RDS(ON) Internal Power MOSFET | 126mΩ (top), 58mΩ (bottom) |
| Low IQ | 190μA |
| Synchronous Mode Operation | Yes |
| Power Saving Mode (PSM) | Yes |
| Switching Frequency | 800kHz |
| Internal Soft Start (SS) | Yes |
| Protection Features | SCP, OCP, UVP, Thermal Shutdown |
| Output Adjustable Range | 0.8V |
