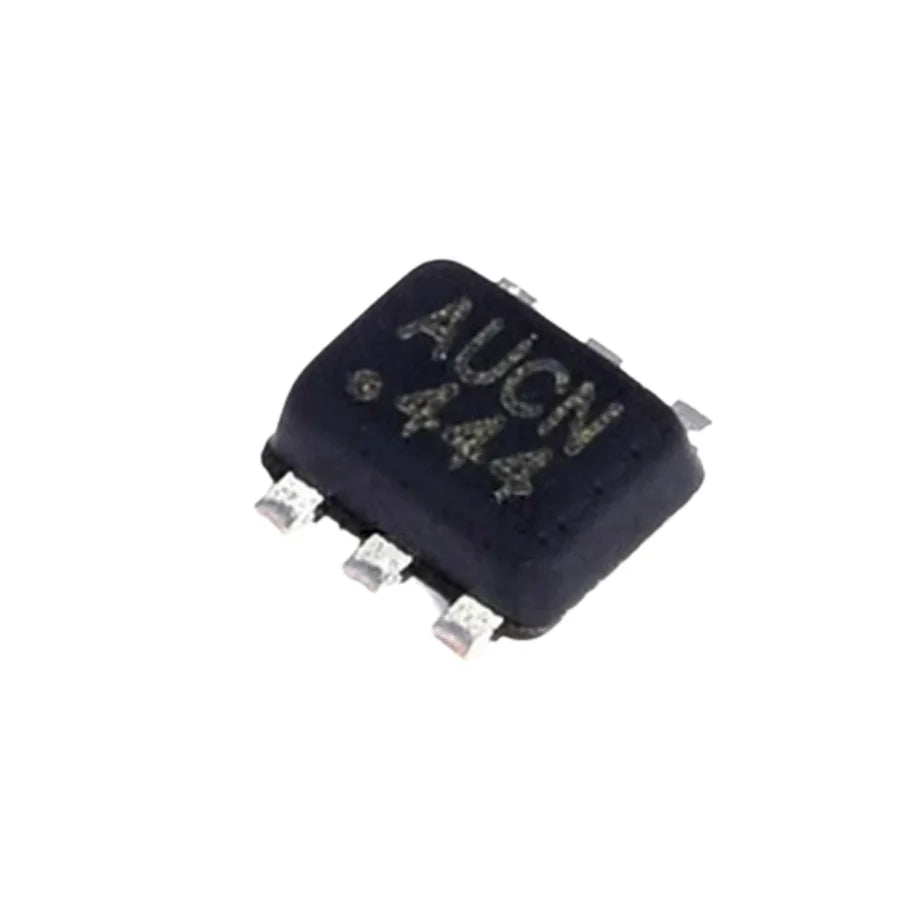

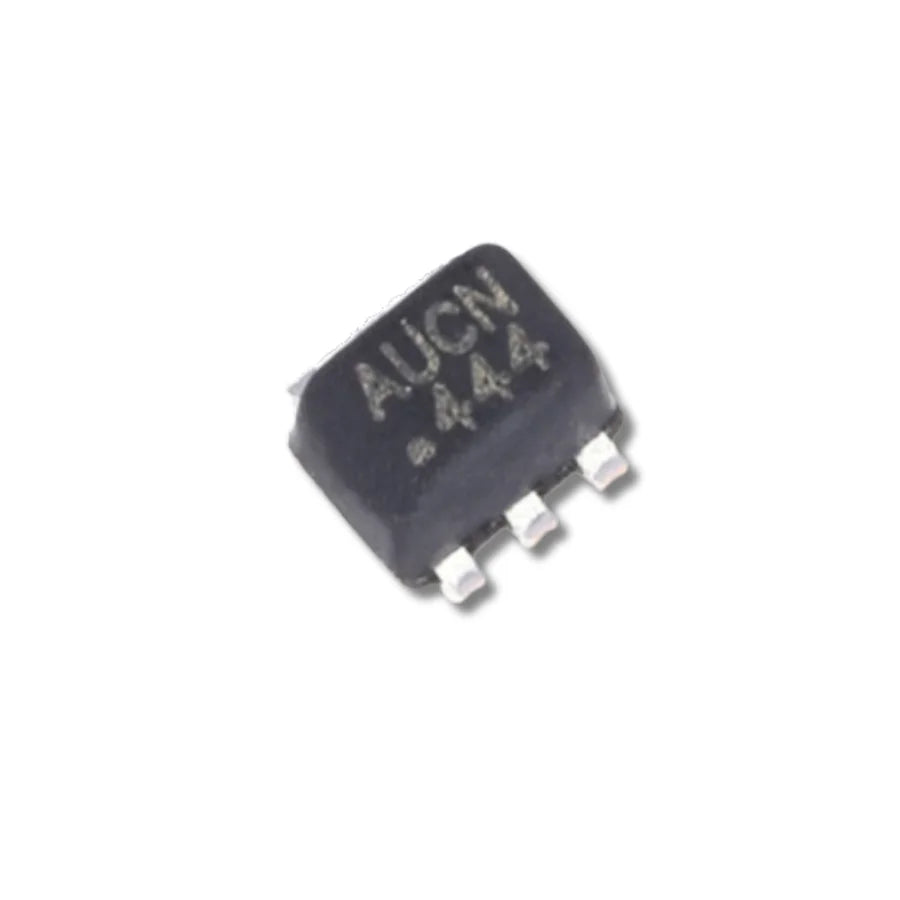

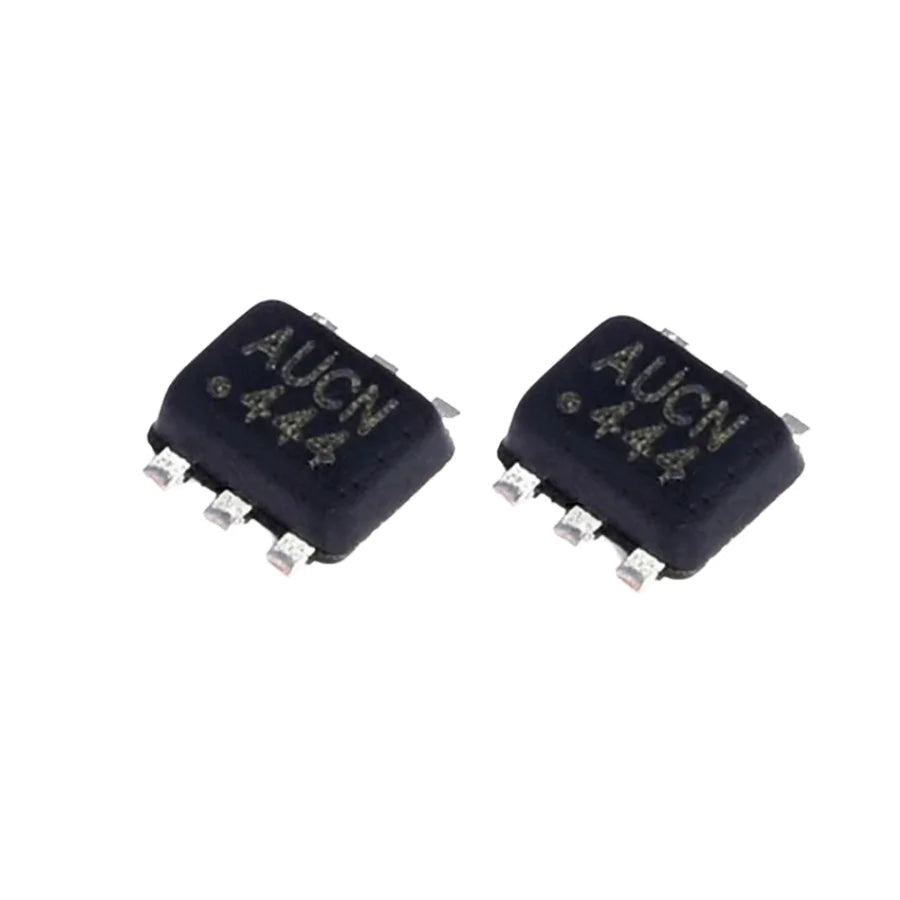

MP1653GTF AUCN 17V 3A 800kHz Synchronous Rectification Step-down Switch Mode Converter

MP1653GTF AUCN 17V 3A 800kHz Step-Down Switch Mode Converter | High-Efficiency, Low-IQ, and More

Introducing the MP1653GTF AUCN, a top-of-the-line 17V, 3A, 800kHz step-down switch mode converter that's fully integrated with internal power MOSFETs. The sleek and compact design provides superior performance and excellent load and line regulation over a wide input range.

Superior Performance and Efficiency for Your Security Cameras, Digital Set-Top Boxes, and More

The synchronous mode operation ensures maximum efficiency over the output current load range, while the power-save mode minimizes energy consumption during lighter loads. With low IQ and a quick load transient response, this converter delivers exceptional performance every time.

MP1653GTF Product Features:

• Wide 4.2V to 17V Operating Input Range
• Low RDS(ON) Internal Power MOSFETs (70mΩ/40mΩ)
• High-Efficiency Synchronous Mode Operation
• Power-Save Mode at Light Load
• Fast Load Transient Response
• 800kHz Switching Frequency
• Internal Soft Start
• Over-Current Protection (OCP) and Hiccup
• Thermal Shutdown
• Output Adjustable from 0.8V
• Available in a SOT563 (1.6mm*1.6mm)
