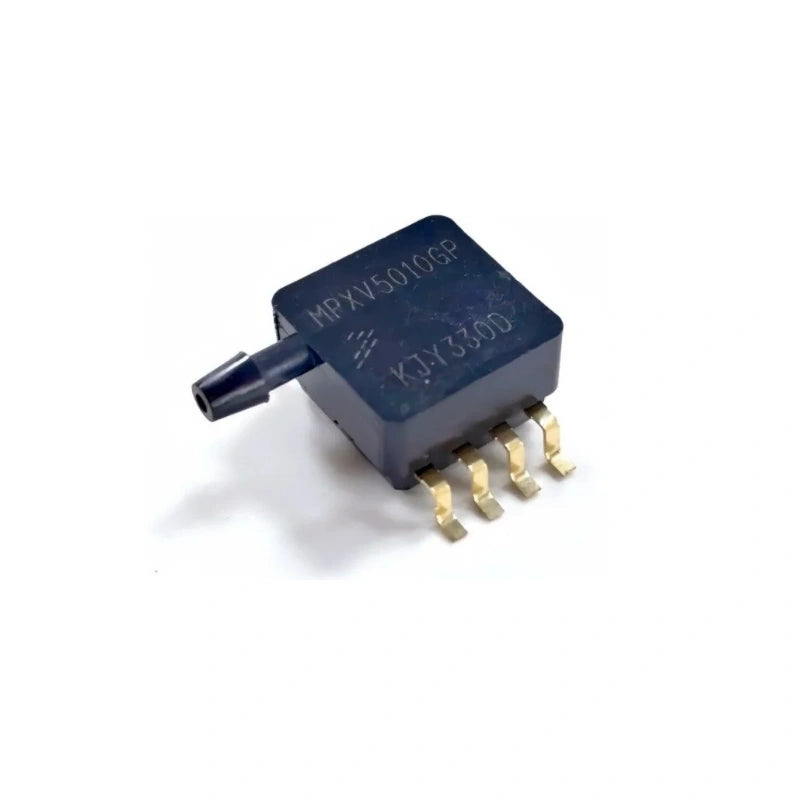

MPXV5010GP 10kPa Pressure Sensor | Analog Output, Temperature Compensated, SOP-8
The MPXV5010GP is a silicon piezoresistive pressure sensor delivering a clean 0.2-4.7V analog output for precise 0-10kPa (1.45 PSI) measurement in demanding industrial applications. Engineered with thin-film metallisation and bipolar processing, the sensor features built-in temperature compensation for stable performance across a -40°C to +125°C envelope — ideal for HVAC monitoring, robotic controls, and immersion / hydro-cooling loop diagnostics where pressure drift over temperature would otherwise spoil the reading.
The vented gauge design and standard 3.17mm barbed port simplify mechanical integration: connect a hose, route to the analog input on your MCU or ADC, and the sensor produces a ratiometric voltage proportional to applied pressure. The gull-wing SMD SOP-8 package reflows on a standard PCBA line, and the 40kPa overpressure tolerance protects the part during transient pressure spikes that exceed the measurement range.
±0.05% Accuracy with Integrated Temperature Compensation (-40°C to +125°C)
- Industry-leading ±0.05% accuracy for critical pressure monitoring applications.
- Temperature-compensated output — eliminates calibration drift across the operating envelope.
- 5.25V low-power operation (4.75-5.25V supply range) — fits standard 5V analog rails.
- Gull-wing SMD package (8-SOP) — automated PCB assembly compatible.
- 40kPa overpressure protection — survives transient pressure events without damage.
Where the MPXV5010GP Fits
The 0-10kPa range targets the low-pressure side of industrial pneumatics, HVAC duct sensing, medical respiration monitoring, and immersion-cooling tank pressure verification — anywhere a small, cleanly-integrated analog gauge sensor is required. Read directly into a 12-bit or 24-bit ADC for full precision; pair with a precision MCU for system-level filtering and alarm logic. The vented design references atmospheric pressure, making it ideal for differential gauge applications.
MPXV5010GP Technical Specifications
| Parameter | Specification |
|---|---|
| Pressure Range | 0-10kPa (1.45 PSI) |
| Output Signal | 0.2V - 4.7V Analog |
| Accuracy | ±0.05% Full Scale |
| Supply Voltage | 4.75V - 5.25V |
| Operating Temperature | -40°C to +125°C |
| Port Size | 3.17mm Barbed Male |
| Overpressure Tolerance | 40kPa |
| Package | 8-SOP (Gull-Wing SMD) |
