NCP1253ASN65T1G Converter Offline Flyback Topology 65kHz 6-TSOP
Additional details
Shipping fees will be automatically calculated during the checkout process.
Reach out to us via the contact form for further information and assistance.
Couldn't load pickup availability
About the Product

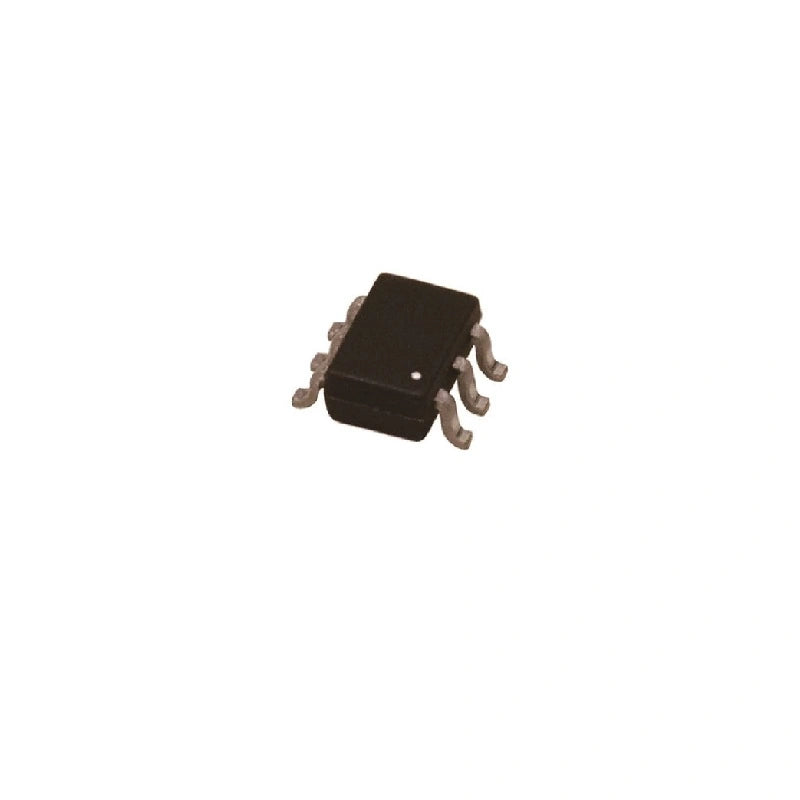

Efficient Power Conversion with NCP1253ASN65T1G: An Offline Flyback Topology Converter
Achieve efficient power conversion with the NCP1253ASN65T1G from onsemi, an offline flyback topology converter in a compact 6-TSOP package. This IC is designed to provide isolated output, with a voltage start-up of 18V and voltage supply ranging from 8.8V to 28V.
With a duty cycle of 0.8 and a switching frequency of 65kHz, the NCP1253ASN65T1G delivers reliable performance. Plus, it offers overvoltage and short-circuit fault protection for added safety.
Isolated Output and Reliable Performance: NCP1253ASN65T1G from onsemi
|
Category |
Integrated Circuits (ICs) |
|
Power Management (PMIC) |
|
|
AC DC Converters, Offline Switches |
|
|
Mfr |
onsemi |
|
Package |
Tape & Reel (TR) |
|
Output Isolation |
Isolated |
|
Internal Switch(s) |
No |
|
Topology |
Flyback |
|
Voltage - Start Up |
18 V |
|
Voltage - Supply (Vcc/Vdd) |
8.8V ~ 28V |
|
Duty Cycle |
0.8 |
|
Frequency - Switching |
65kHz |
|
Fault Protection |
Over Voltage, Short Circuit |
|
Operating Temperature |
-40°C ~ 125°C (TJ) |
|
Package / Case |
SOT-23-6 Thin, TSOT-23-6 |
|
Mounting Type |
Surface Mount |
|
Base Product Number |
NCP1253 |
