RB-212DMF5 Power Relay Reliable and Versatile for Antminer S19 APW12 Power Supply repair
Additional details
Shipping fees will be automatically calculated during the checkout process.
Reach out to us via the contact form for further information and assistance.
Couldn't load pickup availability
About the Product
Enhance Performance and Safety with the RB-212DMF5 Power Relay

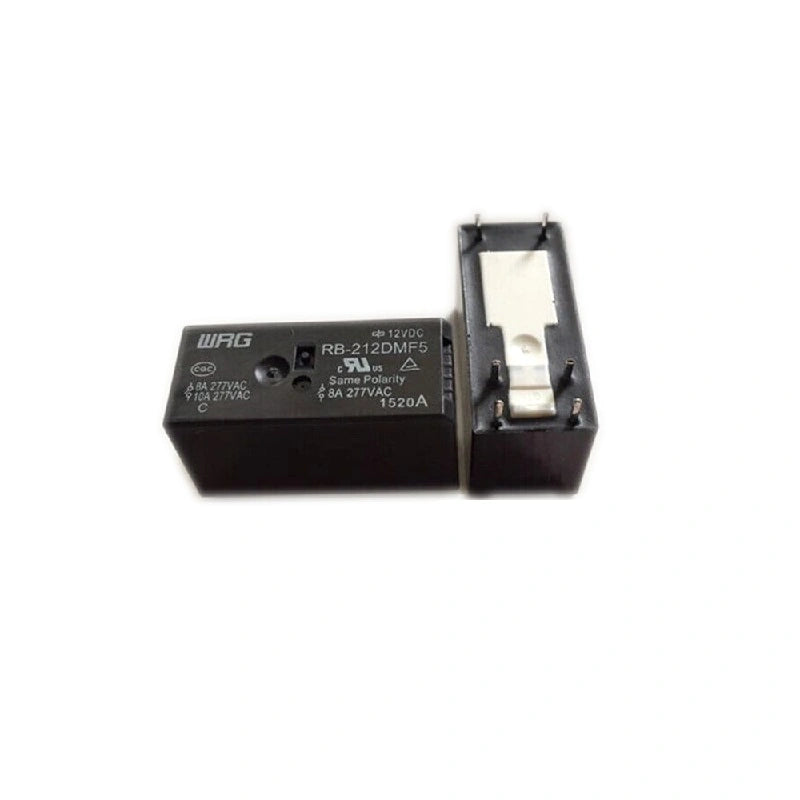

The RB-212DMF5 Power Relay is a high-quality and dependable component designed specifically for use with the Antminer S19 APW12 power supply. This power relay features a 6Pin double pole normally open configuration, making it suitable for a wide range of applications.
Optimal Power Control and Protection with RB-212DMF5 Power Relay
With a contact current rating of 8A and a switching voltage of 277VAC, this power relay provides reliable power control and protection. It offers both sensitive and standard coils, allowing you to choose the best option for your specific needs. The dielectric strength between the coil and contacts is 5000VAC, ensuring safe and efficient performance.
Designed to meet cULus, TUV, and CQC requirements, the RB-212DMF5 Power Relay guarantees quality and compliance with industry standards. Its temperature range of -40°C to 105°C ensures reliable operation even in challenging environments.
Technical Features:
| Feature | Description |
|---|---|
| Product Category | General purpose relays |
| Coil Voltage | 12VDC |
| Contact Form | DPST |
| Contact Current Rating | 8A |
| Switching Voltage | 277VAC |
| Nominal Power | 0.4W at 20℃ |
| Coil Resistance | 360Ω±10％ at 20℃ |
| Nominal Current | 33.3mA±10％ at 20℃ |
| Operate Voltage | 9VDC Max. at 20℃ |
| Release Voltage | 0.6VDC Min. at 20℃ |
| Max Power | 18.6VDC Max. 155% of Nominal |
| Temperature Range | -40°C to 105°C @no condensation |
| Humidity Range | 20% to 85% RH @no condensation |
