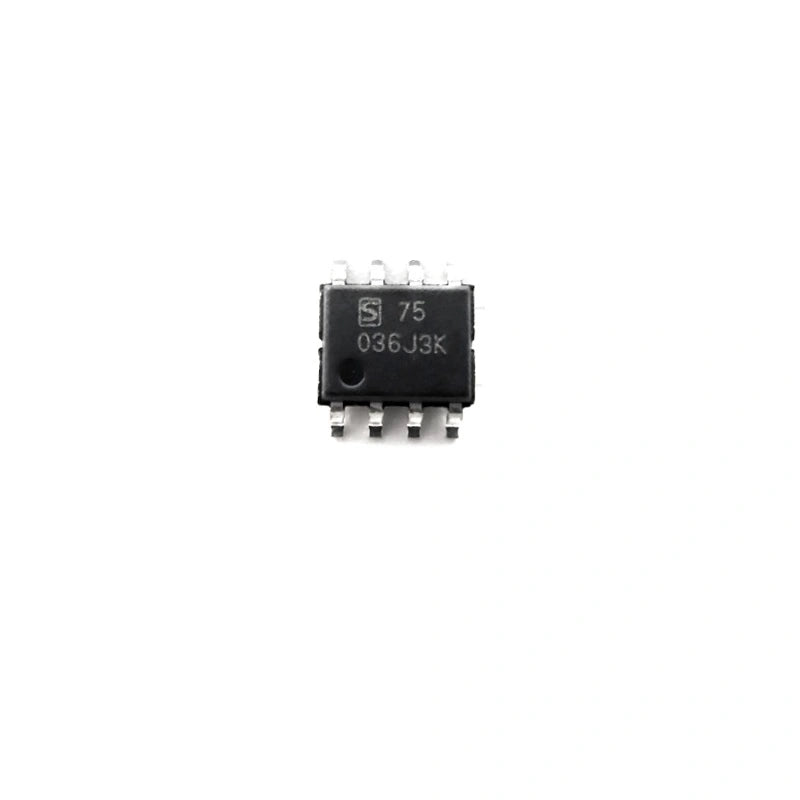

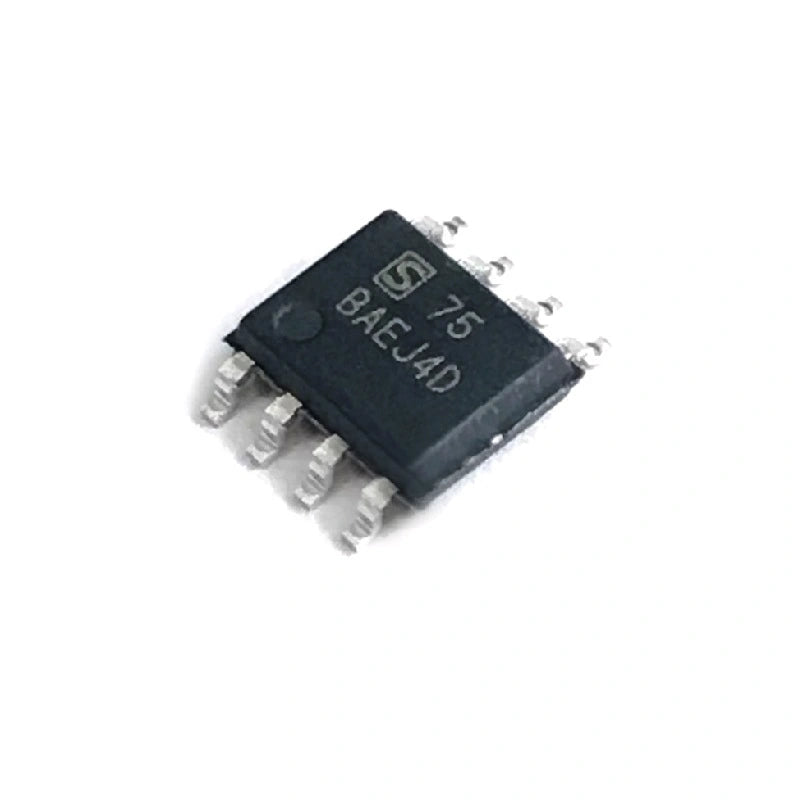

S75 Temperature Sensor Chip for Antminer & Whatsminer Hash Boards – SOP8 Replacement
Additional details
Shipping fees will be automatically calculated during the checkout process.
Reach out to us via the contact form for further information and assistance.
Couldn't load pickup availability
About the Product
S75 Thermal Sensor for Antminer S21IMM, S19XP, L7, D7 & Whatsminer Mining Rigs
Ensure your crypto mining hardware runs efficiently and securely with the S75 temperature sensor chip, designed for precise thermal monitoring across a wide range of Antminer and Whatsminer hash boards. Compatible with models like S21IMM, S19XP Hydro, S19kpro, L7, D7, and more, this digital sensor is critical for maintaining ideal operating temperatures and preventing heat-induced failures.
SOP8 Packaged S75 Sensor – Replace CT75MMR on Antminer S19 Series, L7, D7 & Whatsminer Boards
With advanced SOP8 packaging and seamless compatibility with I2C/SMBus/2-wire interfaces, the S75 delivers 12-bit ADC resolution (0.0625°C) and ultra-low power consumption—making it ideal for high-efficiency mining environments. It supports CT75MMR replacement and can be identified via the original silkscreen on your hash board.
S75 Temperature Sensor Chip Features:
| Feature | Specification |
|---|---|
| Package Type | SOP8 |
| Voltage Supply (VCC) | 1.75V to 5.5V |
| Temperature Accuracy | ±0.5°C (0°C to 50°C), ±1.0°C (–20°C to 85°C) |
| Resolution | 12-bit ADC, 0.0625°C |
| Average Current Consumption | 7.0uA (Typ.), 10uA (Max.) |
| Standby Current | 1.5uA (Typ.), 3.0uA (Max.) |
| Conversion Time | 30ms |
| Interface Compatibility | I2C, SMBus, 2-wire |
| Addressing | 32 unique slave addresses via A0/A1/A2 PIN |
| Replacement Compatibility | LM75, TMP75 can replace CT75MMR |
| Application Models | Antminer S21IMM, S19XP, S19 Hydro, L7, D7, Whatsminer |
