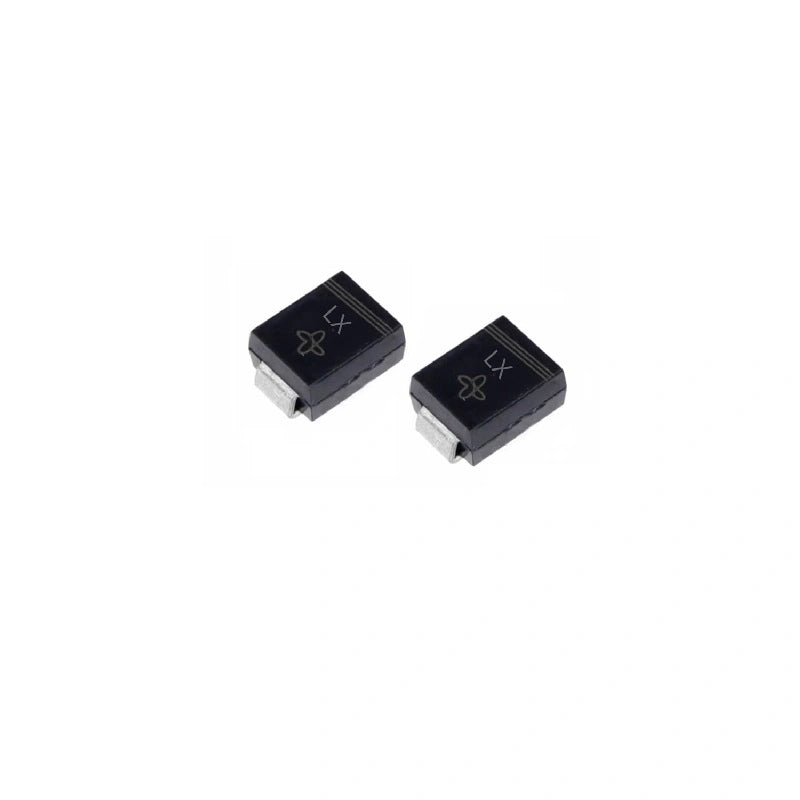

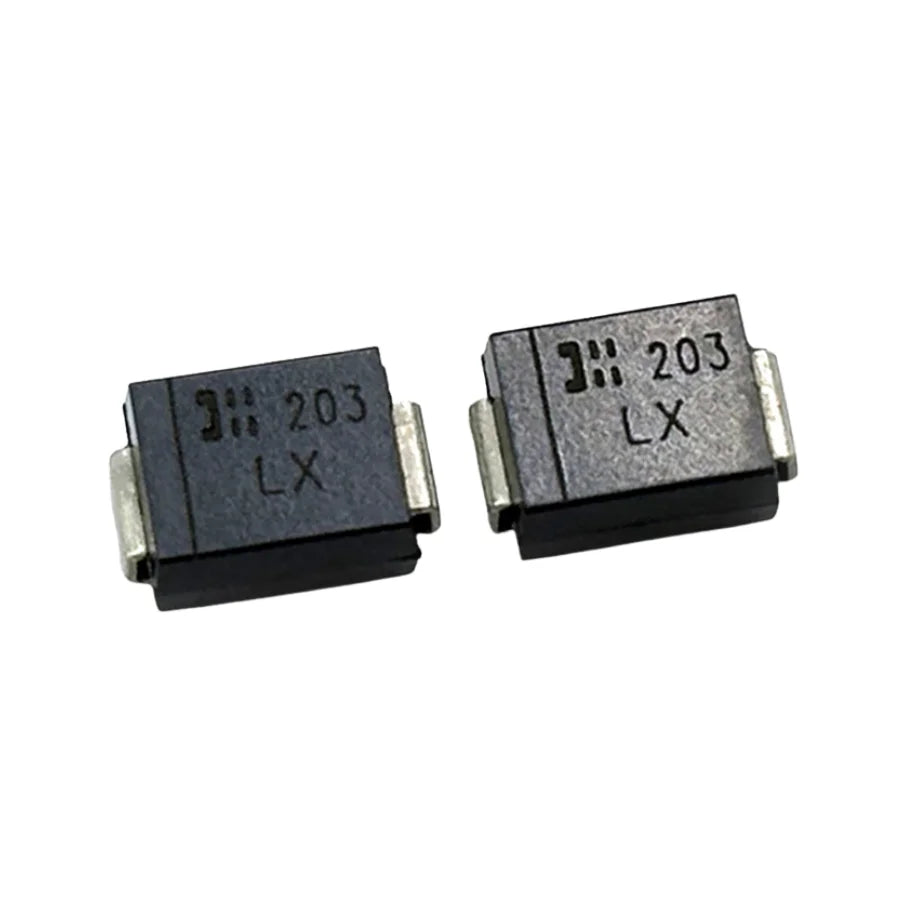

Repair Antminer S19 Hydro HHB28601 Hash Board with SMBJ22A LX Diodes

Safeguard your Antminer S19 Hydro HHB28601 hash board and restore its functionality with the reliable SMBJ22A LX diodes. These diodes are specifically designed to protect sensitive electronic equipment from voltage transients, making them ideal for replacing failed components on Antminer S19 Hydro hash boards.

Ensure Optimal Performance with SMBJ22A LX Diodes for Antminer S19 Hydro Hash Board

The SMBJ22A diodes, interchangeably marked as LX, are the go-to choice for protecting against voltage transients caused by lightning and other transient voltage events. By effectively managing voltage spikes, these diodes prevent damage to your hash board and ensure its long-term reliability.

With a reverse standoff voltage of 22V, a peak pulse current of 16.9A, and a maximum clamp voltage of 35.5V, these diodes offer robust protection against voltage surges. They have a breakdown voltage of 24.4V (MIN VBR@IT) and 26.9V (VBR@IT), ensuring efficient voltage regulation. Additionally, the SMBJ22A LX diodes have a low on-state current of 1mA and a leakage current of only 1μA (Ir @Vso).

Operating in a temperature range of up to 150℃, these diodes can handle demanding conditions without compromising performance. Packaged in DO-214AA, they are easy to install and provide reliable protection for your Antminer S19 Hydro hash board.
