SN74AUC1GU04DBVR UU4R Inverter Gate for Antminer S19 Hydro HHB28601 Hash Board Repair
Additional details
Shipping fees will be automatically calculated during the checkout process.
Reach out to us via the contact form for further information and assistance.
Couldn't load pickup availability
About the Product

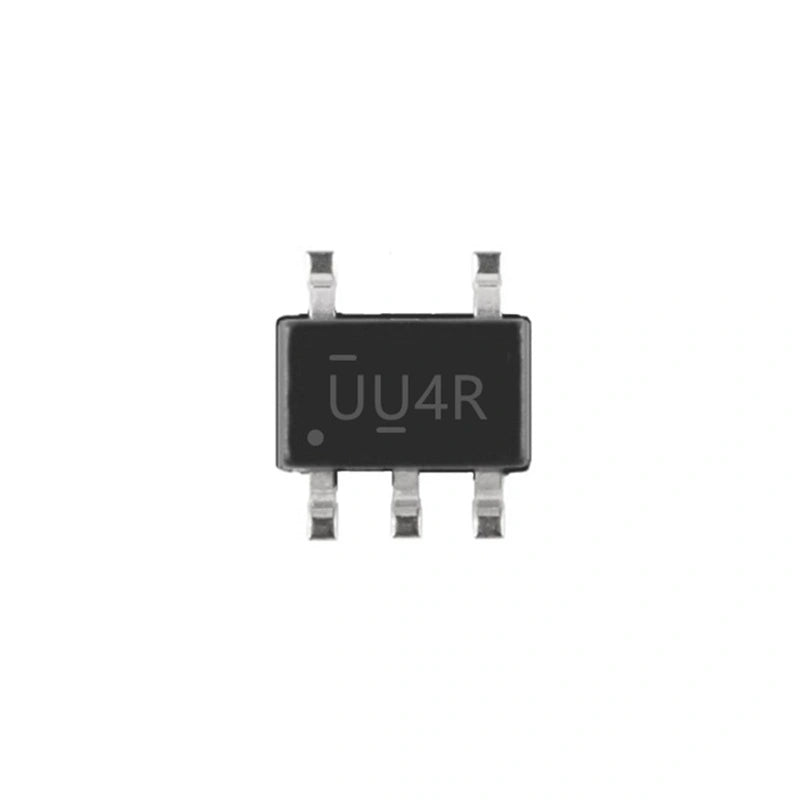

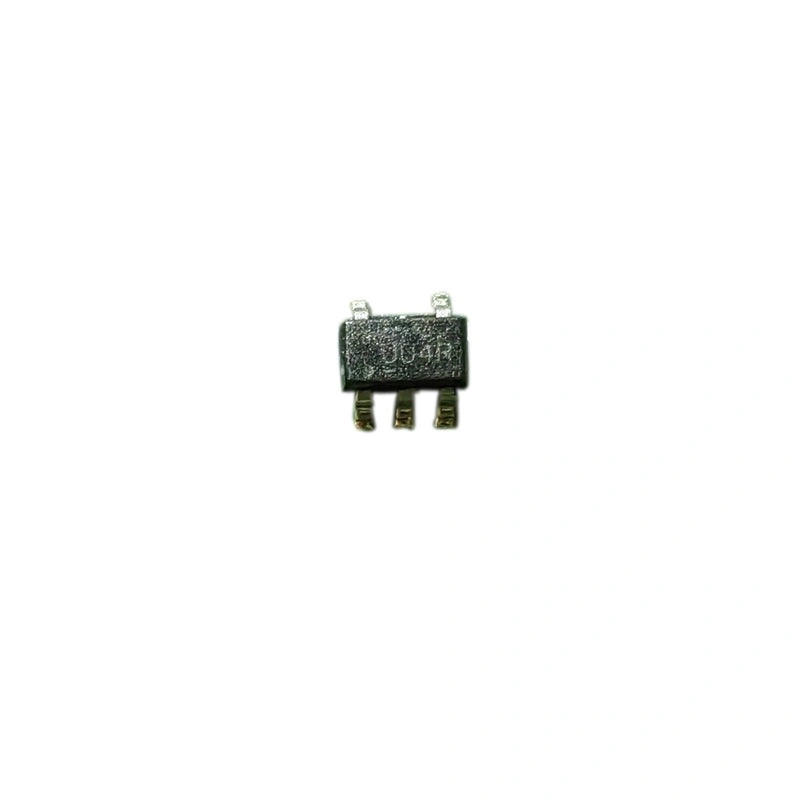

SN74AUC1GU04DBVR UU4R Inverter Gate for Antminer S19 Hydro HHB28601
Restore the functionality of your Antminer S19 Hydro HHB28601 hash board with the high-performance SN74AUC1GU04DBVR UU4R inverter gate. This component is specifically designed for repair purposes and is marked as UU4R. It operates within a voltage range of 0.8V to 2.7V VCC, with optimal performance at 1.65V to 1.95V VCC.
Enhance Performance with SN74AUC1GU04DBVR UU4R Inverter Gate for Antminer S19 Hydro Hash Board
Featuring an unbuffered output, this single inverter gate ensures reliable signal transmission. It offers latch-up performance exceeding 100 mA, guaranteeing stability and durability. The SN74AUC1GU04DBVR comes in Texas Instruments NanoFree™ package, providing a compact and efficient solution.
With optimized operation at 1.8V and a 3.6V I/O tolerance, this inverter gate supports mixed-mode signal operation. It operates below 1V and has a maximum tpd (propagation delay) of 2.4 ns at 1.8V, ensuring fast and efficient signal processing. Additionally, it has low power consumption with a maximum ICC (supply current) of 10µA.
| Technical Features | |
|---|---|
| Latch-Up Performance | Exceeds 100 mA |
| Package | Texas Instruments NanoFree™ |
| Optimal Operation Voltage (VCC) | 1.65V to 1.95V |
| Operating Voltage Range (VCC) | 0.8V to 2.7V |
| Maximum Propagation Delay (tpd) | 2.4 ns at 1.8V |
| Low Power Consumption (ICC) | 10µA maximum |
| Output Drive | ±8mA at 1.8V |
| Unbuffered Output | Yes |
| Supports Partial Power-Down Mode and Backdrive Protection | Yes |
