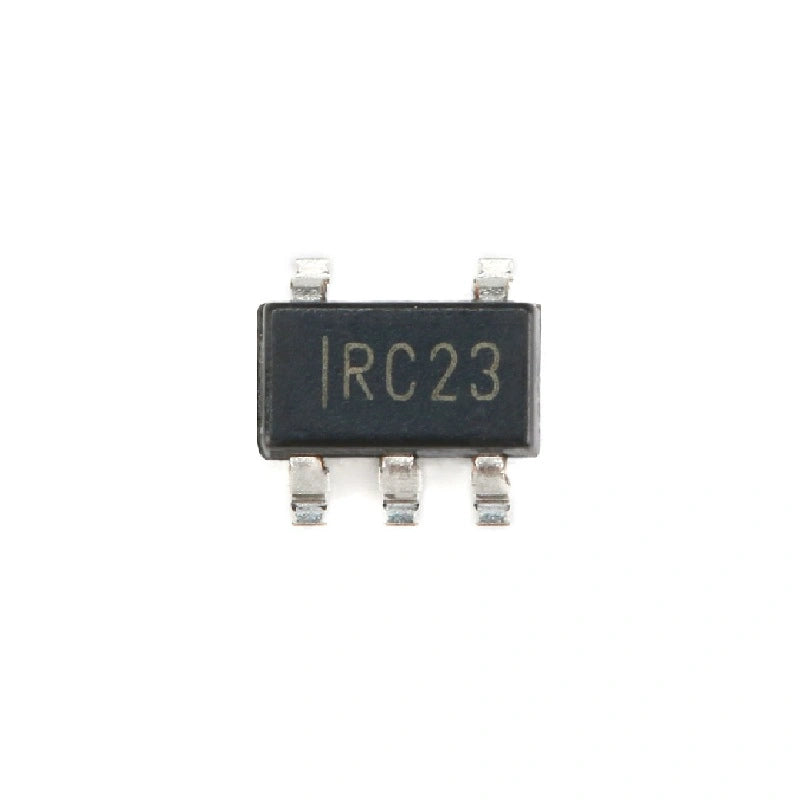

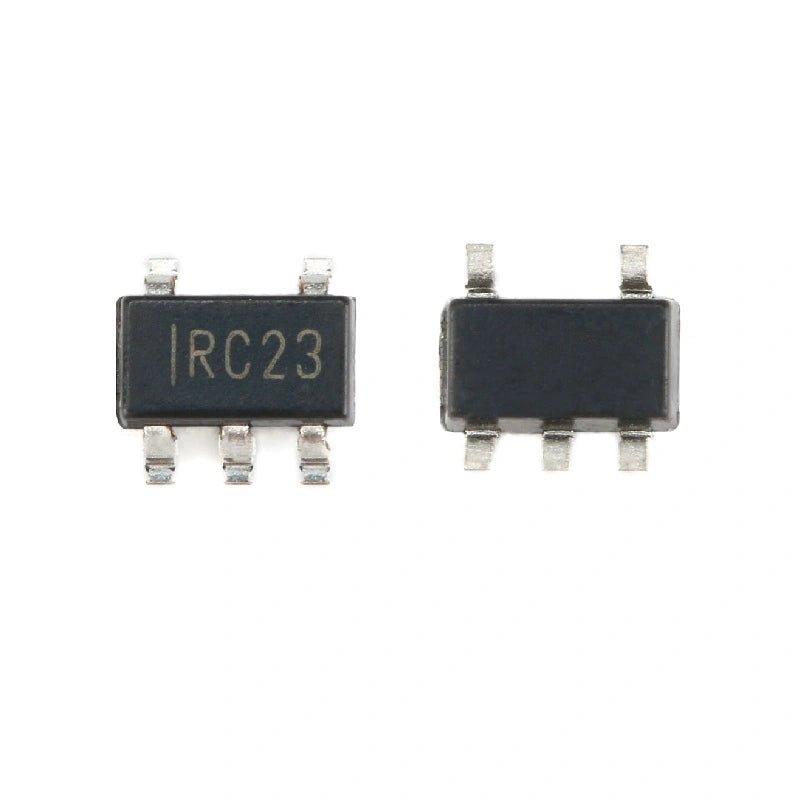

SPX5205M5-L-3-3 Linear Voltage Regulator IC Positive 150mA SOT-23-5 SPX5205M5
Additional details
Shipping fees will be automatically calculated during the checkout process.
Reach out to us via the contact form for further information and assistance.
Couldn't load pickup availability
About the Product
SPX5205M5-L-3-3 LDO Linear Voltage Regulator IC - Antminer L3+ S9 Compatible
The SPX5205M5-L-3-3 is a high-quality LDO (Low Dropout) linear voltage regulator IC designed specifically for use with the Bitmain Antminer L3+ and S9 hash boards. This chip offers low-noise voltage regulation with an exceptionally low dropout voltage and output noise, ensuring stable and reliable power supply to the hash boards.
Low-Noise, High-Performance Voltage Regulation
The SPX5205M5-L-3-3 provides a fixed output voltage of either 1.8V, 3.0V, 3.3V, or 5.0V, making it suitable for a variety of applications. It also offers temperature compensation and an adjustable version, allowing for flexibility in voltage selection.
Ideal for Bitmain Antminer Hash Boards and Battery-Powered Applications
With a low ground current of only 750µA during operation, the SPX5205M5-L-3-3 minimizes power consumption and is particularly well-suited for battery-powered applications. It features additional power-saving features such as zero shutdown mode current, making it an excellent choice for crypto miners, cordless phones, cellular phones, radio control systems, and portable computers.
Technical Features Table:
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Package | Bulk |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage Dropout (Max) | 0.35V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 5 µA |
| Current - Supply (Max) | 2.5 mA |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
