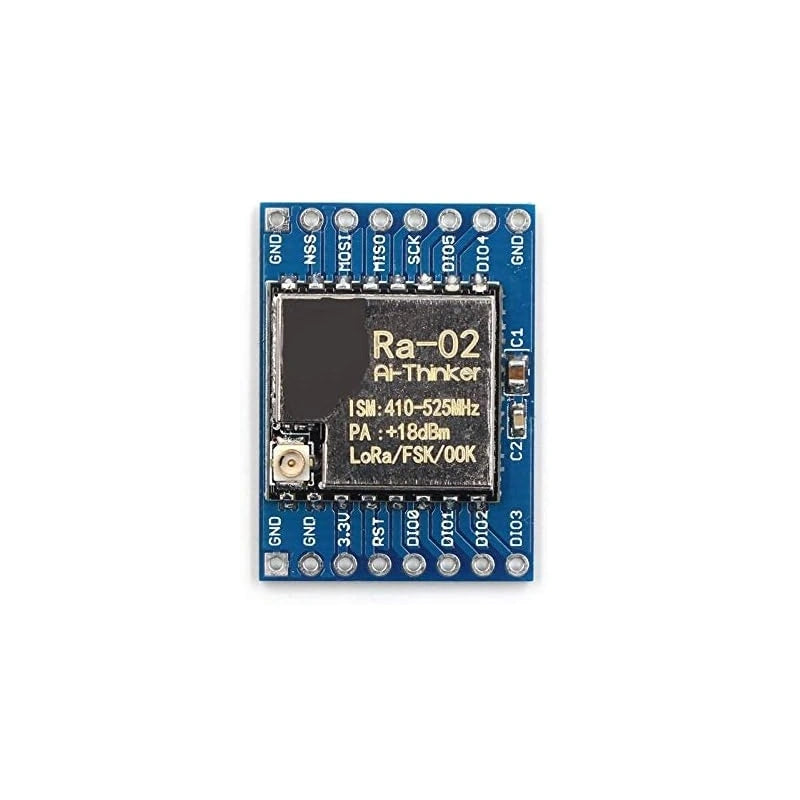

SX1278 LoRa 433MHz Ra-02 Wireless Spread Spectrum Transceiver Module
Additional details
Shipping fees will be automatically calculated during the checkout process.
Reach out to us via the contact form for further information and assistance.
Couldn't load pickup availability
About the Product
Upgrade Your Communication with the SX1278 LoRa 433MHz Ra-02 Module

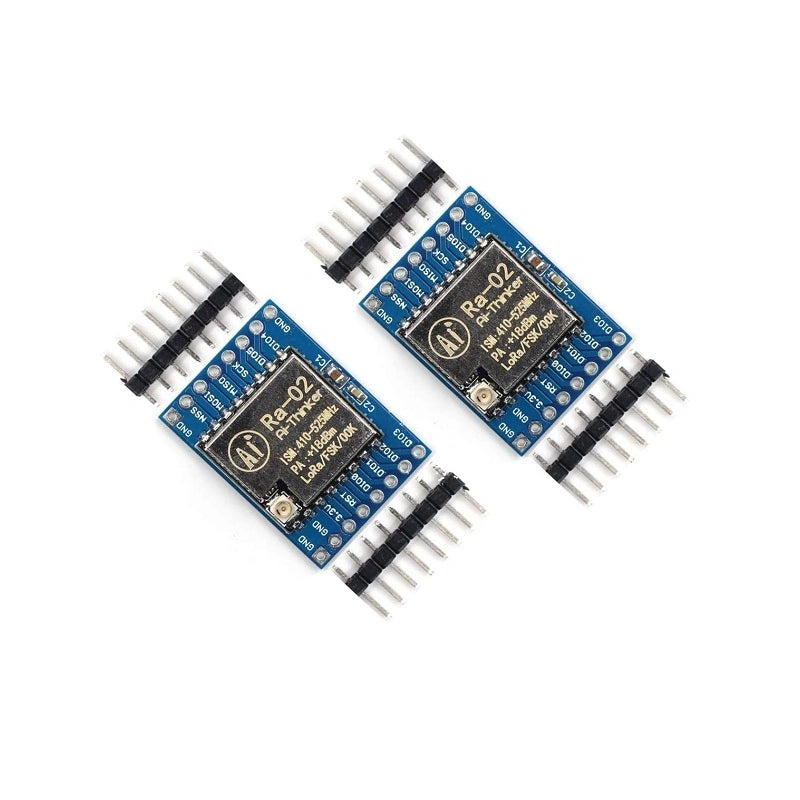

Enhance Connectivity with the X2pcs SX1278 LoRa Module
Transform your communication capabilities with the SX1278 LoRa 433MHz Ra-02 Wireless Transceiver Module. Designed for long-range applications, this module features advanced LoRa spread spectrum technology for reliable transmission up to 10,000 meters with exceptional error correction and anti-interference capabilities. With an IPEX socket for external antenna connectivity, this module is ideal for meter reading, smart home systems, burglar alarms, and more.
Efficient Wireless Spread Spectrum Communication with the SX1278 LoRa Ra-02
| Feature | Specification |
|---|---|
| Wireless Standard | 433MHz |
| Frequency Range | 420 ~ 450MHz |
| Interface | SPI GPIO |
| Voltage | 1.8 ~ 3.7V (Typical: 3.3V) |
| Current | Receiver: ≤10.8mA; Transmit: ≤120mA |
| Sleep Mode | 0.2μA |
| Working Temperature | -40 to +85°C |
