TLP5772 1812TB Logic Output Optoisolator Push-Pull CMTI 6-SOP

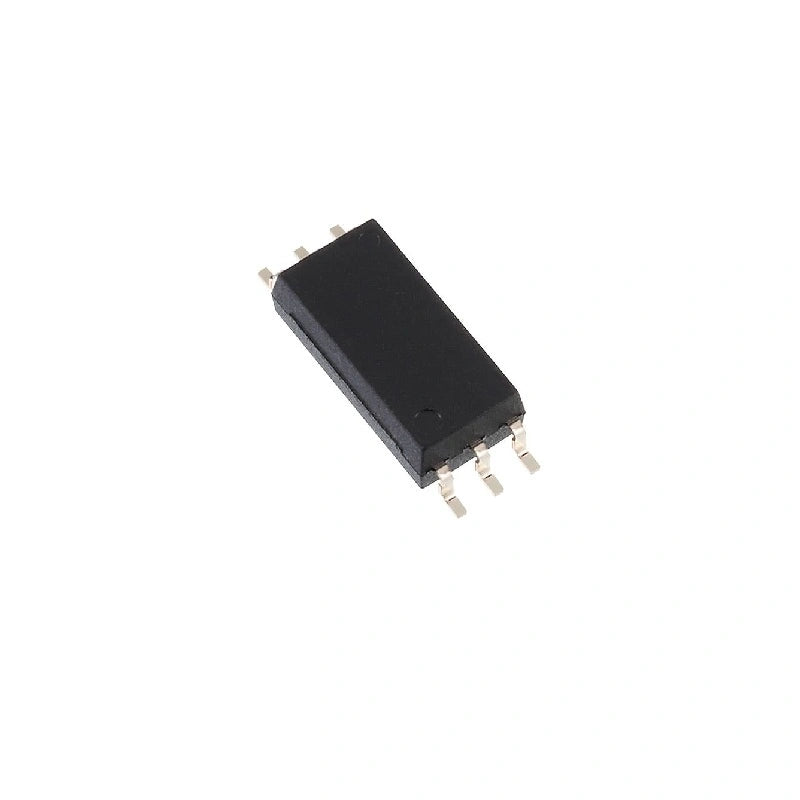

TLP5772 1812TB Logic Output Optoisolator - Compact and Powerful Performance

The TLP5772 1812TB Logic Output Optoisolator is a compact yet powerful device that combines an infrared LED and an integrated high-gain, high-speed photodetector. With its small form factor, this optoisolator is 50% smaller than traditional 8-pin DIP packages, making it ideal for space-constrained applications. Despite its size, it meets the safety standards of reinforced insulation, allowing for a reduced installed area in necessary equipment.

Logic Output Optoisolator: Small Size, Big Performance

The TLP5772 features an internal Faraday Shield, providing a guaranteed common-mode transient immunity of ±35 kV/µs. This ensures reliable operation in electrically noisy environments. The optoisolator also offers a low threshold input current, enabling bufferless direct drive from a microcomputer.

Reinforced Insulation and High-Speed Operation

With its rail-to-rail output, the TLP5772 ensures stable operation and delivers better switching performance in the system. It offers a single channel with a push-pull, totem pole output configuration.

TLP5772 Features Table:
