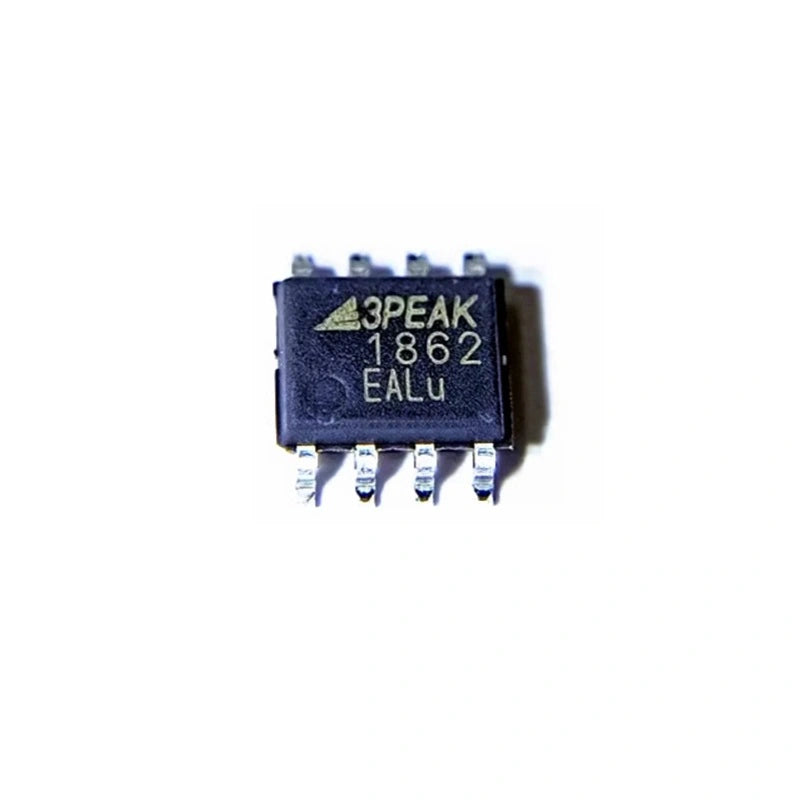

TPA1862-VR High-Supply Voltage Amplifier for ASIC Miner PSU Maintenance

$0.70 USD
$0.70 USD
Sale Sold out
Shipping calculated at checkout.
Get Business Pricing

Additional details

Shipping fees will be automatically calculated during the checkout process.

Reach out to us via the contact form for further information and assistance.
Secure checkout
SSL encryption & invoicing options
Worldwide shipping
Export-ready customs documentation
QC-tested spare parts
Specialized in ASIC miner hardware
Technical support
Assistance from mining engineers

Have questions about this product? Our team is here to help — just reach out on WhatsApp.

💬 Contact Us on WhatsApp

About the Product

TPA1862-VR Amplifier for ASIC Crypto Miner Power Supply

Enhance the performance of your ASIC miner power supply with the TPA1862-VR High-Supply Voltage Amplifier. This amplifier is designed specifically for ASIC miner PSU maintenance, offering exceptional AC performance with a 12MHz bandwidth, 12V/μs slew rate, and low distortion.

Optimize Your ASIC Miner PSU with TPA1862-VR Amplifier

The TPA1862-VR operates within a supply voltage range of 4.5V to 36V and features excellent EMI rejection of 85dB at 1GHz. It is equipped with over-temperature protection, automatically entering a high impedance state when the chip temperature reaches 170°C and resuming function at 150°C, thus safeguarding the chip during intensive operations.



TPA1862-VR Technical Features Table:

Feature Specification
Supply Voltage 4.5V to 36V
Offset Voltage ±30μV max
Bandwidth 12MHz
Slew Rate 12V/μs
Quiescent Current 2000μA
EMI Rejection 85dB at 1GHz
Over-Temperature Protection Yes
HBM/CDM/Latch Protection 2KV HBM, 1KV CDM, 500mA latch
Operating Temperature Range –40°C to 125°C
