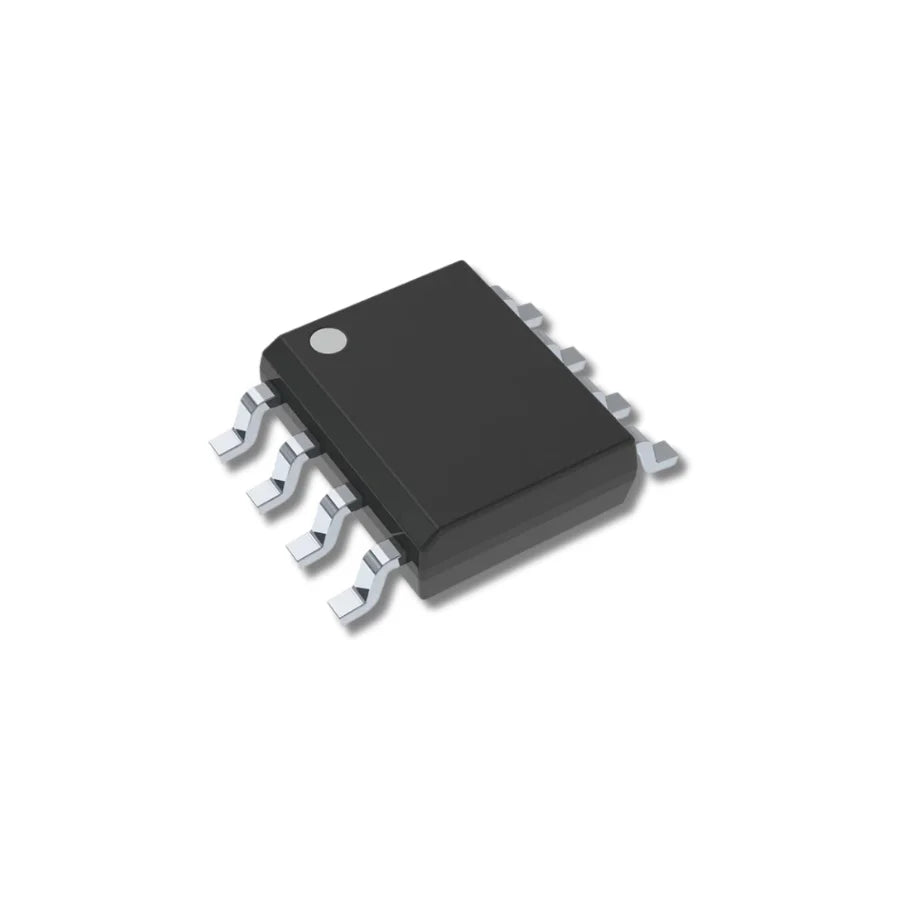

UCC27210DR MOSFET Gate Drivers - Maximum Performance and Reduced Switching Losses

$8.00 CAD
$8.00 CAD
Sale Sold out
Shipping calculated at checkout.

Additional details

Shipping fees will be automatically calculated during the checkout process.

Reach out to us via the contact form for further information and assistance.

Secure checkout with
  • Visa
  • Mastercard
  • American Express
  • Apple Pay
  • Union Pay
  • Maestro
  • Bitcoin
  • Discover

About the Product

UCC27210DR MOSFET Gate Drivers - Maximum Performance and Reduced Switching Losses


The UCC27210DR MOSFET Gate Drivers are high-performance drivers designed to provide maximum performance and reduced switching losses when powering large electrical appliances. These drivers are an enhanced version of the UCC27200 and UCC27201 MOSFET drivers, offering several improvements to meet the demands of high-power applications.

Reliable MOSFET Drivers for Large Power MOSFETs

With increased peak output pull-up and pull-down currents of up to 4A and reduced pull-up and pull-down resistance of 0.9Ω, the UCC27210DR drives large power MOSFETs with minimal switching losses during transitions.

Improved Functionality and Enhanced Performance

These MOSFET gate drivers are robust and versatile, featuring a built-in 120V-rated bootstrap diode and an input structure capable of handling up to -10VDC. The inputs are independently controlled and matched to within 2ns between turn-on and turn-off, ensuring precise and synchronized switching.

The UCC27210DR and UCC27211 MOSFET drivers also incorporate undervoltage lockout for both the high-side and low-side drivers, providing symmetric turn-on and turn-off behavior. Additionally, they force the outputs low if the drive voltage falls below the specified threshold, adding an extra layer of protection.



Technical Features Table:

Feature Specification
Product Category Gate Drivers
Product Type MOSFET Gate Drivers
Type High-Side, Low-Side
Mounting Style SMD/SMT
Package / Case SOIC-8
Output Current 4A
Supply Voltage - Min 7.8V
Supply Voltage - Max 20V
Rise Time 8ns
Fall Time 7ns
Minimum Operating Temperature -40°C
Maximum Operating Temperature +140°C
Series UCC27210
Operating Supply Voltage 7.8V to 20V
Technology Si
Unit Weight 0.002677 oz
