UJ4C075060K4S Antminer ASIC Miner Bitmain APW17 PSU SICFET

UJ4C075060K4S SiCFET TO-247-4L – Antminer APW17 Power Supply Repair

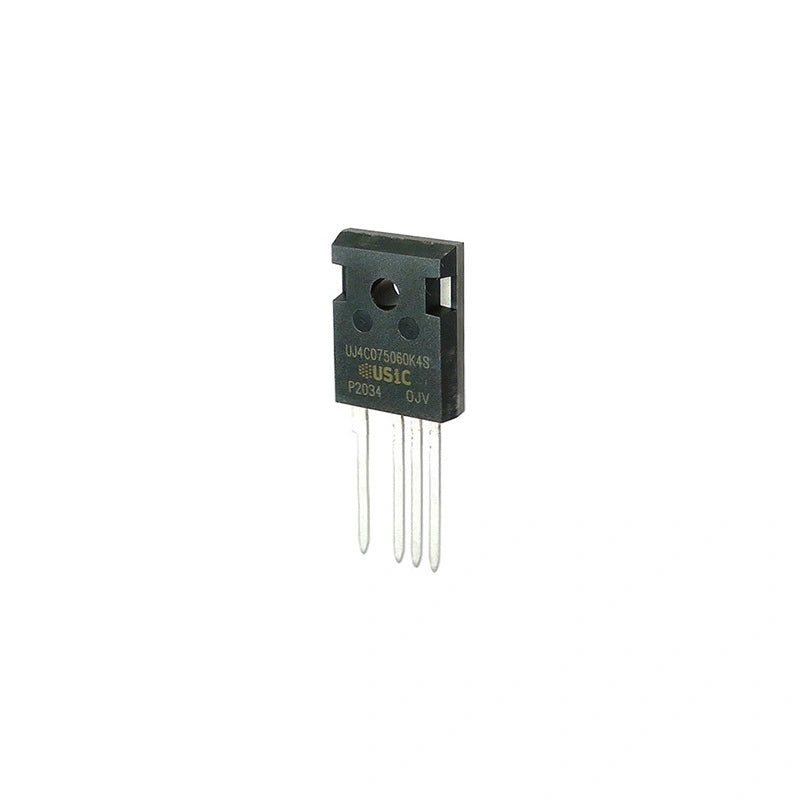

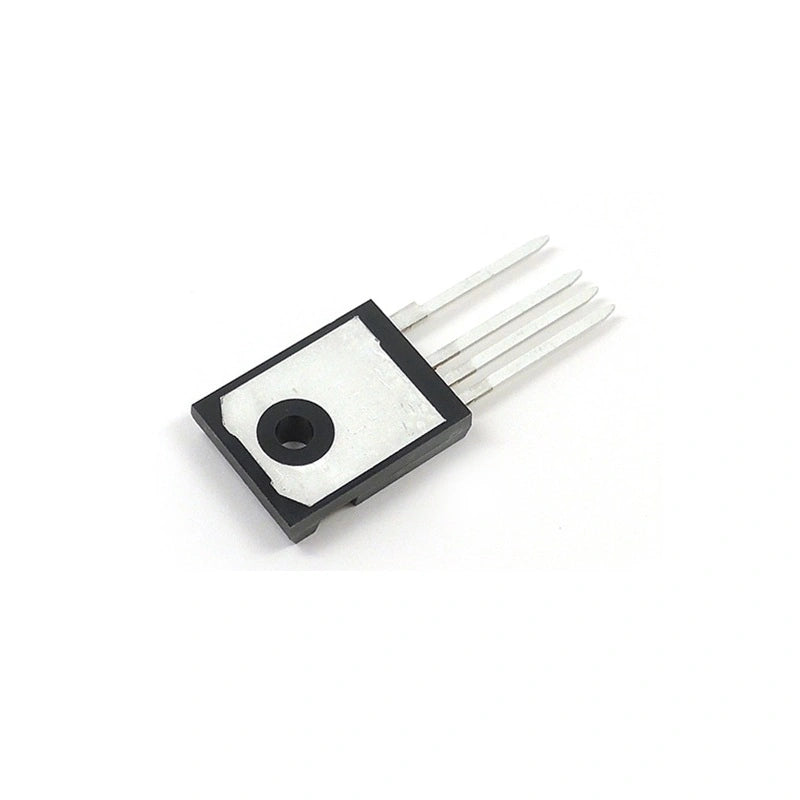

The UJ4C075060K4S is an N-channel SiCFET (silicon carbide field-effect transistor) in a TO-247-4L package, used in the Antminer APW17 power supply for high-efficiency primary-side switching. The 4-lead Kelvin source connection enables clean gate signals and fast switching transitions. Key parameters: 58mΩ Rds(on), 52nC Qrr, 37.8nC Qg, gate threshold 4.8V, body diode forward voltage 1.31V, max junction temperature 175°C. HBM class 2 ESD protection.

Why SiCFETs in the APW17

The APW17 powers the latest Antminer S21 generation at high wattage. SiC transistors provide lower switching losses than silicon MOSFETs at equivalent ratings — the 52nC reverse recovery charge is a fraction of what a comparable silicon device produces. The TO-247-4L Kelvin source pin separates the power and gate return paths, enabling faster, cleaner switching and reducing EMI. This makes the UJ4C075060K4S critical to the APW17's high-efficiency design.

Replacement Procedure

Disconnect mains and discharge bulk capacitors. Locate the UJ4C075060K4S on the primary switching board — it is a 4-pin TO-247 device mounted to the main heatsink. Remove mounting hardware, desolder the four leads, clean through-holes. Install the new device with correct pin orientation (note the Kelvin source pin), apply thermal compound and torque the screw. Test through a variac under progressive load.

UJ4C075060K4S SiCFET Specifications
