Whatsminer Test Fixture for M30 M50 Hashboard ASIC Chip Tester

Whatsminer Test Fixture for M30 & M50 Series – Accurate Hashboard Chip Tester

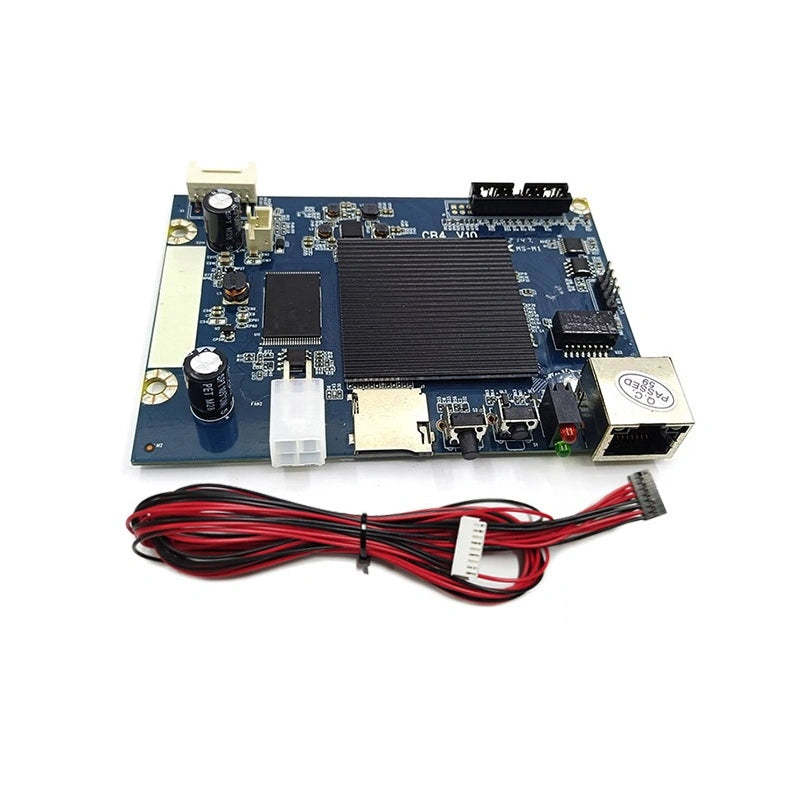

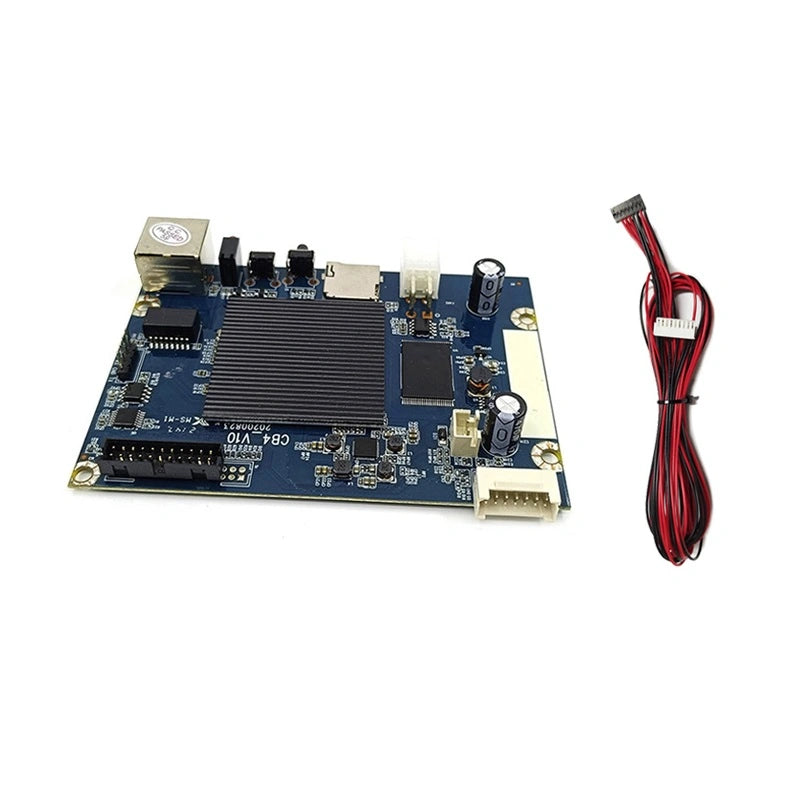

The Whatsminer Test Fixture for M30 and M50 Series is a highly accurate ASIC chip test fixture purpose-built to diagnose faults on the full MicroBT Whatsminer M30 and M50 hashboard lineup. It lets repair technicians locate bad chips quickly and with confidence, bringing mining operations back online much faster than brand-agnostic testers. The fixture ships bundled with its own test files and a dedicated Whatsminer data line, so it works out of the box with no configuration required.

Whatsminer Test Fixture Technical Specifications

Why a Brand-Specific Fixture Still Pays Off

Universal testers like the K8 and K9 handle Whatsminer boards competently, but a dedicated Whatsminer M30 / M50 test fixture scans faster and with finer resolution thanks to test files tuned for the KF19xx ASIC family. Repair shops doing more than five Whatsminer hashboard jobs per week usually see the fixture pay back in saved time within a month. Used alongside a universal tester, it becomes the go-to tool for Whatsminer scans while the universal rig covers everything else.

Typical Use Case

Plug the fixture into the suspect M30 or M50 hashboard via the included data line, power on, and let the fixture run its scan. The test files flag the first defective KF19xx chip in the chain so the technician can spot-replace it, reflow and rescan. A single tester can run unattended while the technician works on a different board — turning diagnosis into background work and freeing bench time for actual rework.

Related Whatsminer Repair Parts & Chips

• KF1968 / KF1968E ASIC Chip – M50 / M50S / M30S++
• KF1950 ASIC Chip – M30S / M21S Hashboard
• Whatsminer M50 / M60 Test Fixture
• Whatsminer Test Fixture Cable 16P to 22P

Speed up Whatsminer hashboard diagnosis with the right dedicated fixture. Order now or contact us at contact@lys-sz.com for chip-level repair advice, volume orders and compatibility checks. Worldwide shipping from our Shenzhen warehouse.
