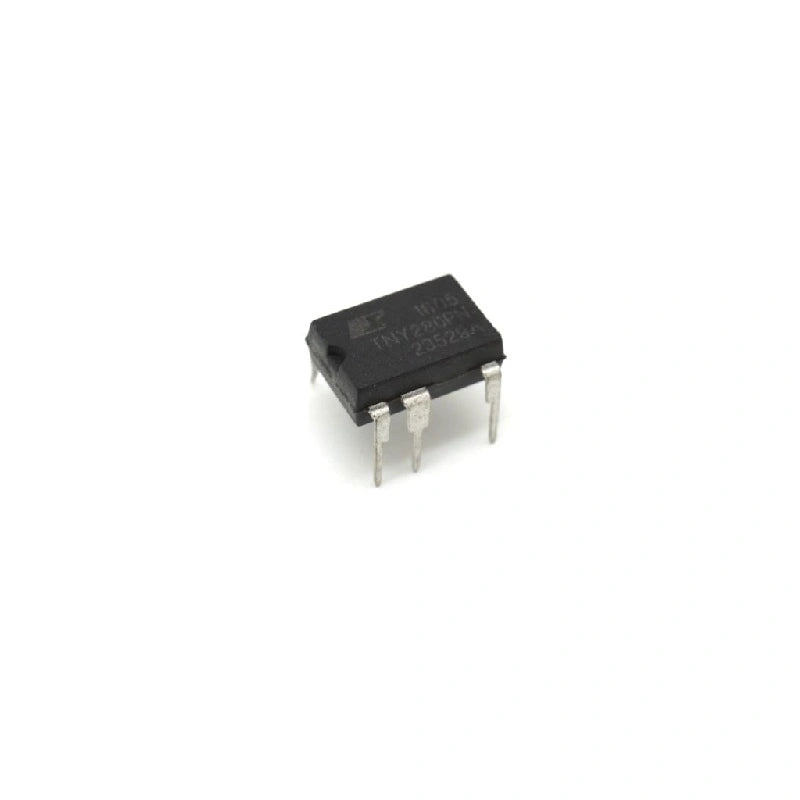

TNY280PN AC/DC Converter 28.5W 85-265 VAC 36.5W/230 VAC for Power Supply

$1.50 USD
$1.50 USD
Sale Sold out
Shipping calculated at checkout.
Get Business Pricing

Additional details

Shipping fees will be automatically calculated during the checkout process.

Reach out to us via the contact form for further information and assistance.
Secure checkout
SSL encryption & invoicing options
Worldwide shipping
Export-ready customs documentation
QC-tested spare parts
Specialized in ASIC miner hardware
Technical support
Assistance from mining engineers

Have questions about this product? Our team is here to help — just reach out on WhatsApp.

💬 Contact Us on WhatsApp

About the Product

TNY280PN AC/DC Converter: Versatile Power Supply Solution

The TNY280PN AC/DC Converter for PSU is a versatile and cost-effective power supply solution that offers enhanced flexibility and an extended power range. This innovative off-line switcher incorporates a powerful 700V power MOSFET, high-voltage switched current source, and user-selectable current limit, all packed into a compact and energy-efficient package.

Enhanced Flexibility and Extended Power Range

With its simple ON/OFF control scheme, the TNY280PN requires no loop compensation, making integration into your existing system a breeze. The user-selectable current limit, with its customizable BP/M capacitor value, allows you to tailor the converter to meet your specific power requirements. The tight I2f parameter tolerance reduces system cost and minimizes maximum overload power, resulting in cost savings on transformers, primary clamps, and secondary components.



TNY280PN Technical Features Table:

Feature Specification
Product Category AC/DC Converters
Mounting Style Through Hole
Package / Case DIP-8
Output Voltage 12V
Output Power 36.5W
Input / Supply Voltage - Min 85VAC
Input / Supply Voltage - Max 265VAC
Switching Frequency 132kHz
Duty Cycle - Max 0.65
Minimum Operating Temperature -40°C
Maximum Operating Temperature +150°C
Output Current 750mA
Series TNY280
Packaging Tube
Number of Outputs 1 Output
Product Type AC/DC Converters
Type Off-Line Converter
Unit Weight 0.019401 oz
