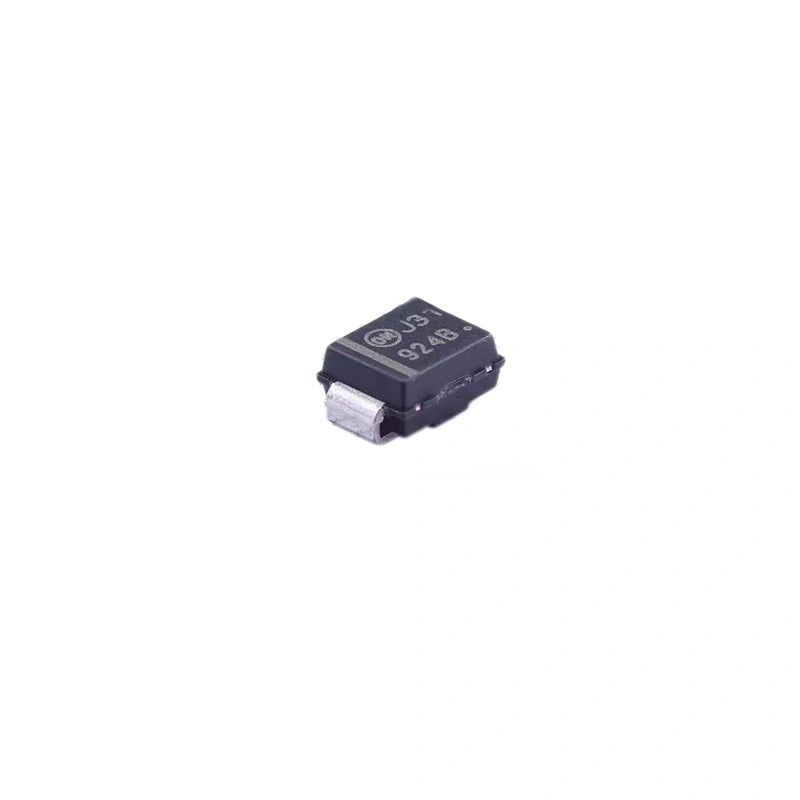

1SMB5924BT3G 3W 9.1V patch Zener diode 924B Silkscreen for Antminer S19XP Hash board

Upgrade your Antminer S19XP Hash Board with the 1SMB5924BT3G Zener Diode

Upgrade your Antminer S19XP hash board with the brand new 1SMB5924BT3G 3W 9.1V patch Zener diode. This high-quality diode is silk screen marked as 924B and is the perfect solution to improve your mining performance. With a flat operating surface for precise placement, this diode ensures accurate and efficient board mounting.

Features and Parameters of The 1SMB5924BT3G 3W 9.1V Zener Diode

• Zener Voltage of 9.1 V for improved performance
• Precision flat operating surface
• Top or bottom board mounting capability
• Available in a lead-free package

Product Parameters:

• Type: Single Voltage Regulator
• Nominal Zener Voltage (V): 9.1 (with 5% tolerance)
• Maximum Forward Voltage (V): 1.5
• Maximum Power Dissipation (mW): 3000
• Test Current (mA): 41.2
• Maximum Reverse Leakage Current (uA): 5
• Maximum Regulator Current (mA): 164
• Maximum Zener Impedance (Ohm): 4
• Maximum Power Dissipation @ 25C (mW): 550
• Minimum Operating Temperature (°C): -65
• Maximum Operating Temperature (°C): 150
• Maximum Zener Voltage (V): 9.56
• Minimum Zener Voltage (V): 8.64
• Packaging: Tape and Reel
• Mounting: Surface Mount
• Package Height: 2.2
• Package Width: 3.56
• Package Length: 4.32
• PCB changed: 2
• Standard Package Name: DO-214-AA
• Pin Count: 2
