Antminer L9 Control Board CV1835 CB8 – CVITEK Processor

Antminer L9 Control Board CV1835 (CB8) – High-Performance CVITEK Processor Replacement

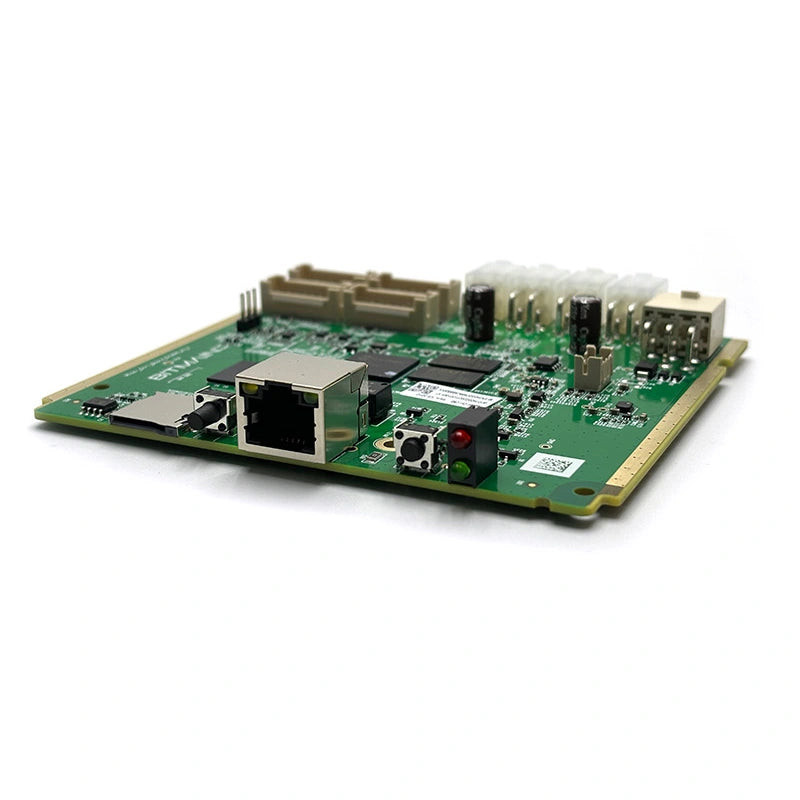

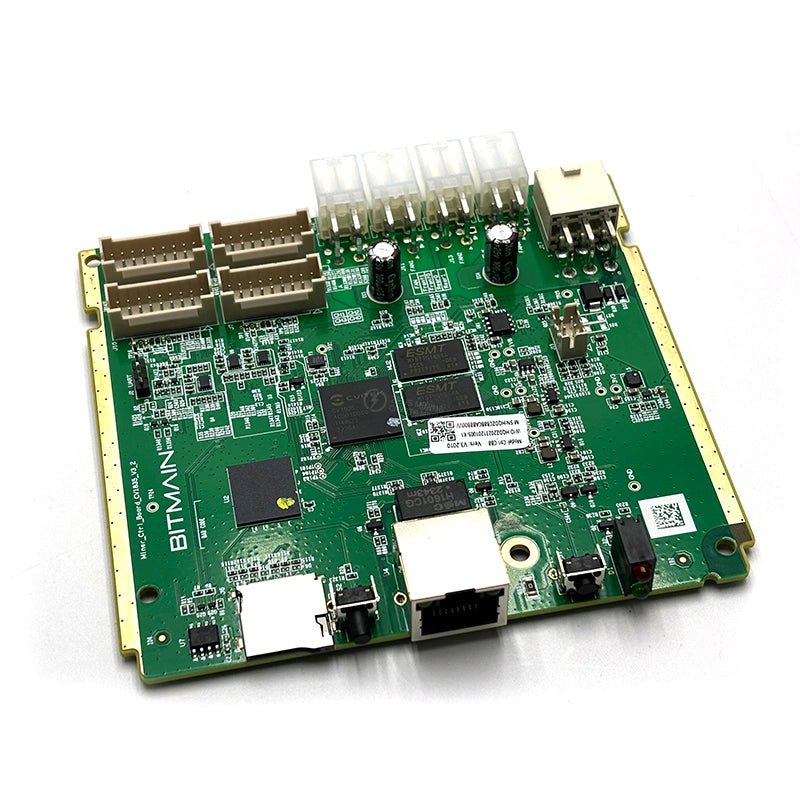

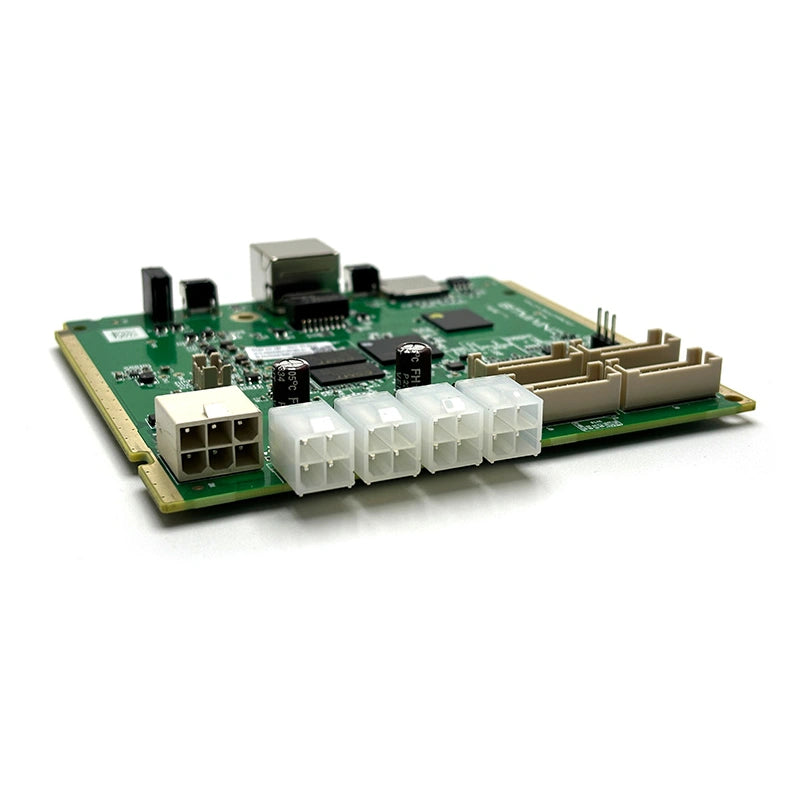

This Antminer L9 control board uses the CVITEK CV1835 processor and is the CB8 version, which represents the latest board revision for this miner. The CV1835 delivers faster data processing and more stable communication between the control board and the hashboards, resulting in more reliable operation in demanding mining environments. The board features a square 4-pin fan connector and an SD card slot for firmware updates and miner recovery, making it a complete plug-and-play replacement for any failed or degraded L9 control board.

When to Replace an L9 Control Board

The control board is the brain of the miner — it manages hashboard communication, fan speed regulation, network connectivity and firmware execution. Common failure symptoms include the miner failing to detect one or more hashboards, frequent disconnections from the pool, inability to update firmware, or the miner not booting at all. In some cases, a corrupted SD card image can mimic a dead control board; always try reflashing the firmware via the SD card slot before concluding the board itself has failed. If reflashing does not resolve the issue, the CV1835 processor or its supporting circuitry has likely been damaged by a power surge, static discharge or prolonged overheating.

Installation Procedure

Power off the L9 and disconnect all cables from the existing control board — data ribbon cables to each hashboard, the fan connector, the Ethernet cable and the power input. Remove the mounting screws securing the board to the chassis. Slide the old board out and insert the new CB8 board, aligning the screw holes and connectors with the chassis cutouts. Secure with screws, reconnect all data cables in their original positions, plug in the fan header and Ethernet, and restore power. The miner should boot and detect all hashboards within a few minutes. Check the miner dashboard to confirm hash rate, fan speed and temperatures are reporting correctly.

The CB8 version is specifically designed for the Antminer L9. It is not interchangeable with earlier Antminer models even though other Bitmain miners also use the CV1835 chip — the board layout, connector positions and firmware are L9-specific.

Antminer L9 Control Board Specifications
