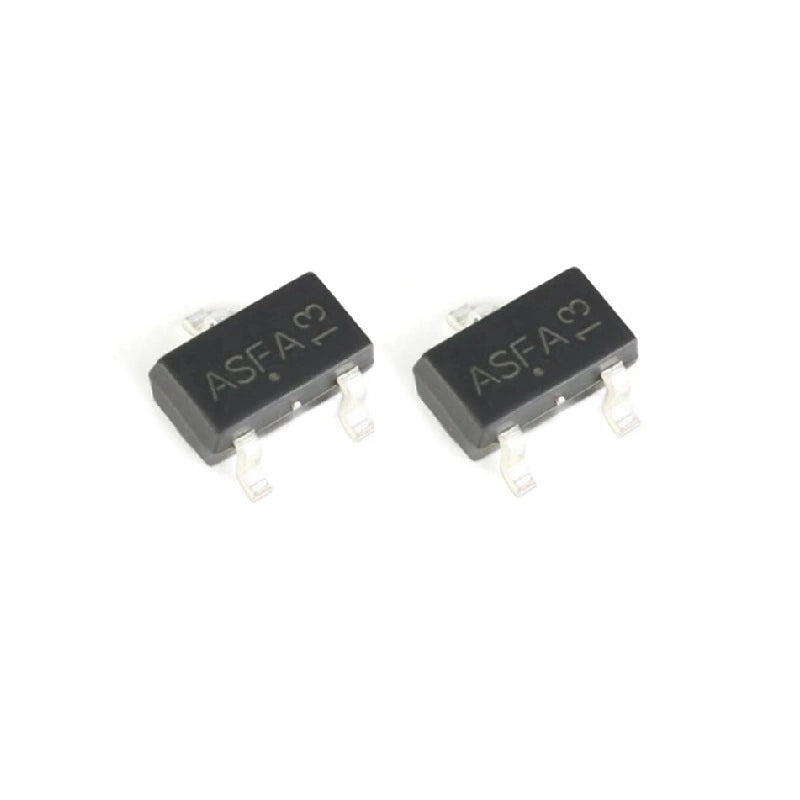

AO3423 ASFA ASTA P-Channel Enhancement Mode MOSFET for Whatsminer CB2_V8 Control Board
Additional details
Shipping fees will be automatically calculated during the checkout process.
Reach out to us via the contact form for further information and assistance.
Couldn't load pickup availability
About the Product
High-Performance AO3423 MOSFET for Whatsminer H3 Control Board
Repair your Whatsminer CB2 V8 control board with the AO3423 ASFA ASTA P-Channel Enhancement Mode MOSFET for maximum efficiency and performance. Our MOSFET utilizes advanced trench technology to provide incredible resistance rates, low gate charge, and a compatible gate voltage as low as only 2.5V.
Advanced Trench Technology with Low Gate Charge

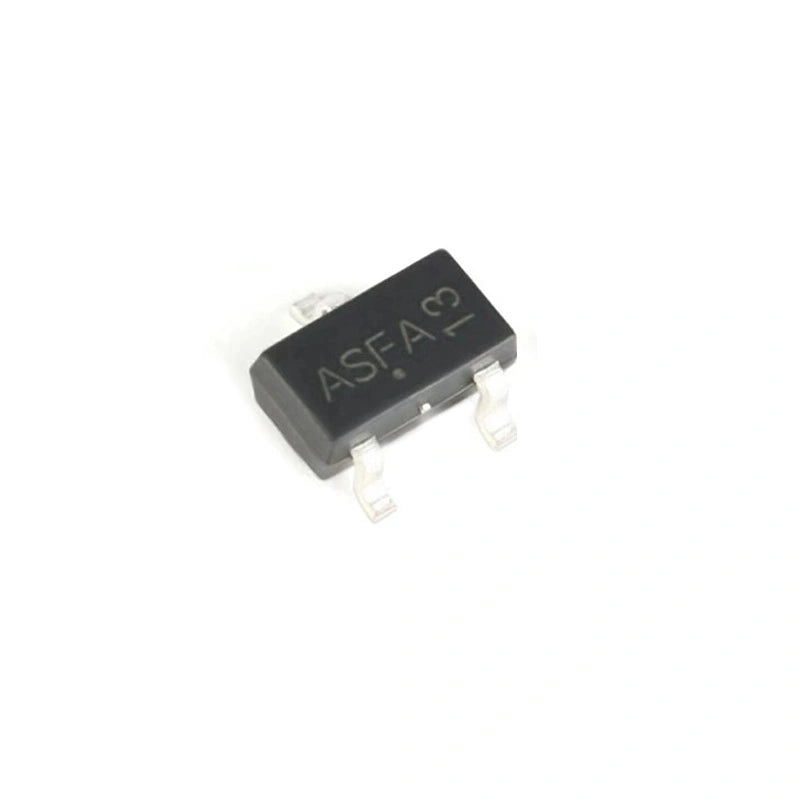

Perfect for use as a load switch or PWM applications, the AS** silkscreen marking ensures easy identification and matching with your control board.
AO3423 ASFA ASTA Technical Features Table:
| Feature | Specification |
|---|---|
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 10V |
| Rds On (Max) @ Id, Vgs | 92mOhm @ 2A, 10V |
| Vgs(th) (Max) @ Id | 1.4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 6.6nC @ 4.5V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 620pF @ 10V |
| Power Dissipation (Max) | 1.4W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
