AT24C02C-XHM-T EEPROM Chip for Iceriver KS5L Hash Board - 2048-Bit I2C-Compatible Low Voltage

15.00 ฿ THB
15.00 ฿ THB
Sale Sold out
Shipping calculated at checkout.

Additional details

Shipping fees will be automatically calculated during the checkout process.

Reach out to us via the contact form for further information and assistance.

Secure checkout with
  • Visa
  • Mastercard
  • American Express
  • Apple Pay
  • Union Pay
  • Maestro
  • Bitcoin
  • Discover

About the Product

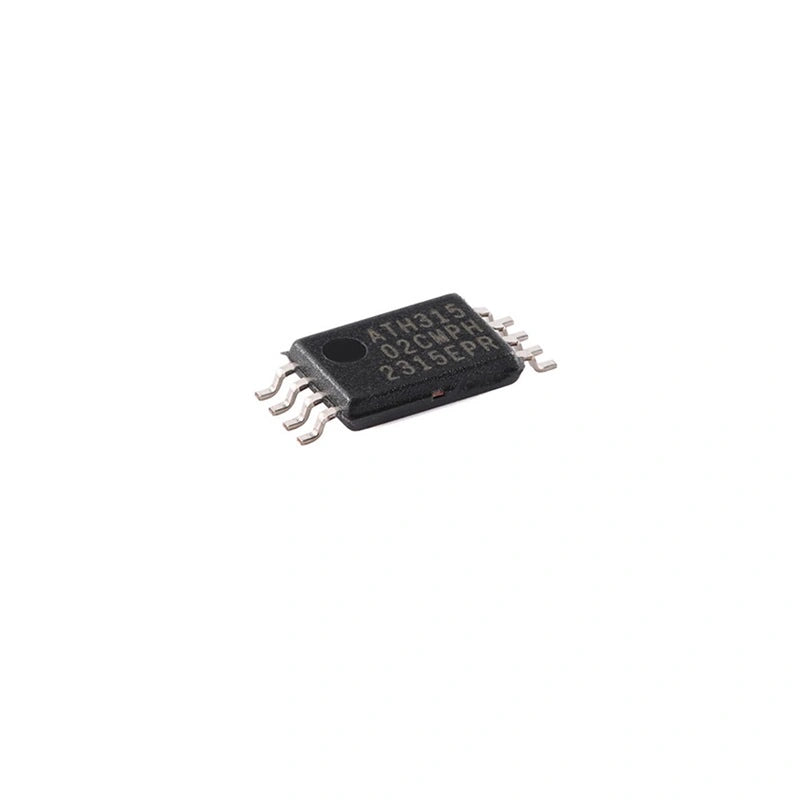

AT24C02C-XHM-T EEPROM Chip for Iceriver KS5L Hash Board

The AT24C02C-XHM-T EEPROM chip is an essential component for repairing and maintaining the Iceriver KS5L hash board. This EEPROM chip offers 2048 bits of serial electrically erasable programmable read-only memory (EEPROM), organized into 128/256 words of 8 bits each. Designed to enhance the performance and reliability of your mining equipment, this chip ensures efficient data storage and retrieval.

2048-Bit EEPROM Chip for Iceriver KS5L Hash Board

The AT24C02C-XHM-T is housed in a compact 8-lead TSSOPA package and operates within a voltage range of 1.7V to 5.5V, making it suitable for various voltage environments. Its cascade capability allows up to eight devices to share a common two-wire bus, simplifying the design and integration process.

Low Voltage, I2C-Compatible EEPROM Chip for Iceriver KS5L

This EEPROM chip is I2C-compatible and supports multiple modes, including 100 kHz Standard Mode, 400 kHz Fast Mode, and 1 MHz Fast Mode Plus (FM+), providing versatile communication options. The device features a Schmitt trigger and filtered inputs for noise suppression, ensuring reliable data transfer.

Key features include write-protect pin for full array hardware data protection, ultra-low operating current (3mA max), and standby current (6μA max), making it energy-efficient. With high endurance of 1,000,000 write cycles and data retention of 100 years, the AT24C02C-XHM-T guarantees long-term reliability and performance.



Technical Features Table

Feature Specification
Voltage Range 1.7V to 5.5V
Memory Capacity 2048 bits
Internal Organization 128 * 8 (1K) or 256 * 8 (2K)
Temperature Range -40°C to +85°C
Interface I2C-compatible (2-wire)
Communication Modes 100 kHz Standard, 400 kHz Fast, 1 MHz FM+
Package 8-lead TSSOPA
Current Consumption 3mA max operating, 6μA max standby
Write Cycles 1,000,000
Data Retention 100 years
ESD Protection > 4,000V
