  • Original AZ1117CH-1.8TRG1 GH16C Low Dropout three-terminal Regulator
  • AZ1117CH-1.8TRG1 Low Dropout Three-Terminal Regulator
1 2

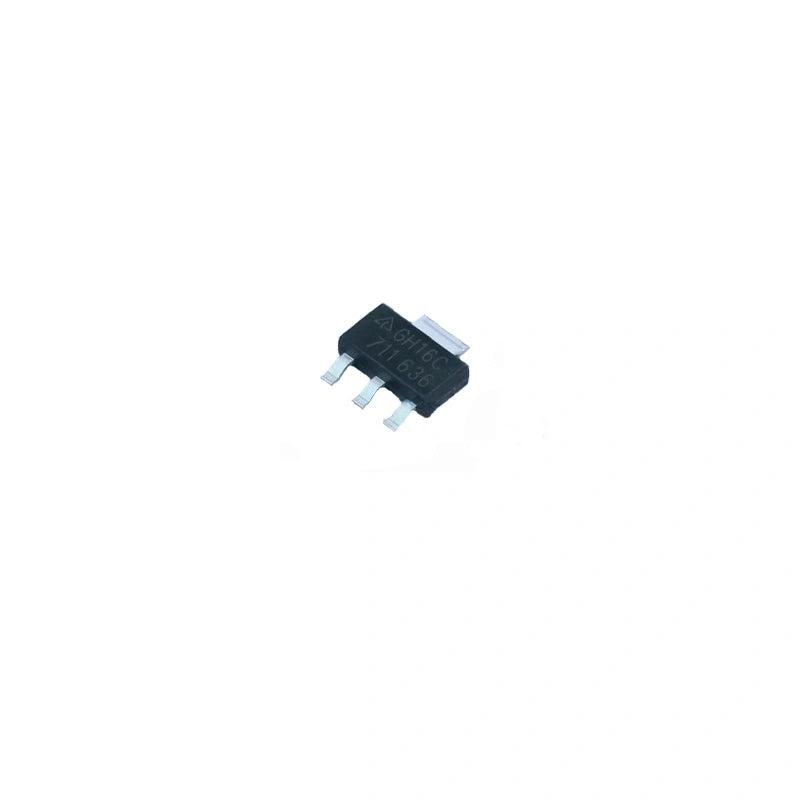

AZ1117CH-1.8TRG1 GH16C Low Dropout three-terminal Regulator

$0.09 USD
$0.09 USD
Sale Sold out
Shipping calculated at checkout.
Get Business Pricing

Additional details

Shipping fees will be automatically calculated during the checkout process.

Reach out to us via the contact form for further information and assistance.
Secure checkout
SSL encryption & invoicing options
Worldwide shipping
Export-ready customs documentation
QC-tested spare parts
Specialized in ASIC miner hardware
Technical support
Assistance from mining engineers

Have questions about this product? Our team is here to help — just reach out on WhatsApp.

💬 Contact Us on WhatsApp

About the Product

Introducing the AZ1117CH-1.8TRG1 Low Dropout Three-Terminal Regulator

Upgrade your PCB motherboard with the AZ1117CH-1.8TRG1 low dropout three-terminal regulator. Engineered for low voltage applications, this regulator is optimized for transient response and minimum input voltage, ensuring superior efficiency and performance.

The Ultimate Solution for High-Efficiency Voltage Regulation

Equipped with a circuit that includes a trimmed bandgap reference, this regulator delivers output voltage accuracy within ±1%. Plus, its on-chip thermal shutdown safeguards against excessive junction temperature, providing reliable protection against high current and ambient temperature.



AZ1117CH-1.8TRG1 GH16C Key Features:

Category

Integrated Circuits (ICs)

Power Management (PMIC)

Voltage Regulators - Linear

Mfr

Diodes Incorporated

Series

AZ1117C

Package

Tape & Reel (TR)

Output Configuration

Positive

Output Type

Fixed

Number of Regulators

1

Voltage - Input (Max)

15V

Voltage - Output (Min/Fixed)

1.8V

Voltage Dropout (Max)

1.3V @ 800mA

Current - Output

1A

Current - Quiescent (Iq)

6 mA

PSRR

70dB (120Hz)

Protection Features

Thermal Shutdown

Operating Temperature

-20°C ~ 125°C (TJ)

Mounting Type

Surface Mount

Package / Case

TO-261-4, TO-261AA

Base Product Number

AZ1117
