60S360P7 IPA60R360P7S Revolutionary High Voltage Power MOSFET
Additional details
Shipping fees will be automatically calculated during the checkout process.
Reach out to us via the contact form for further information and assistance.
Couldn't load pickup availability
About the Product
Experience Unparalleled Efficiency and Robustness with the IPA60R360P7S

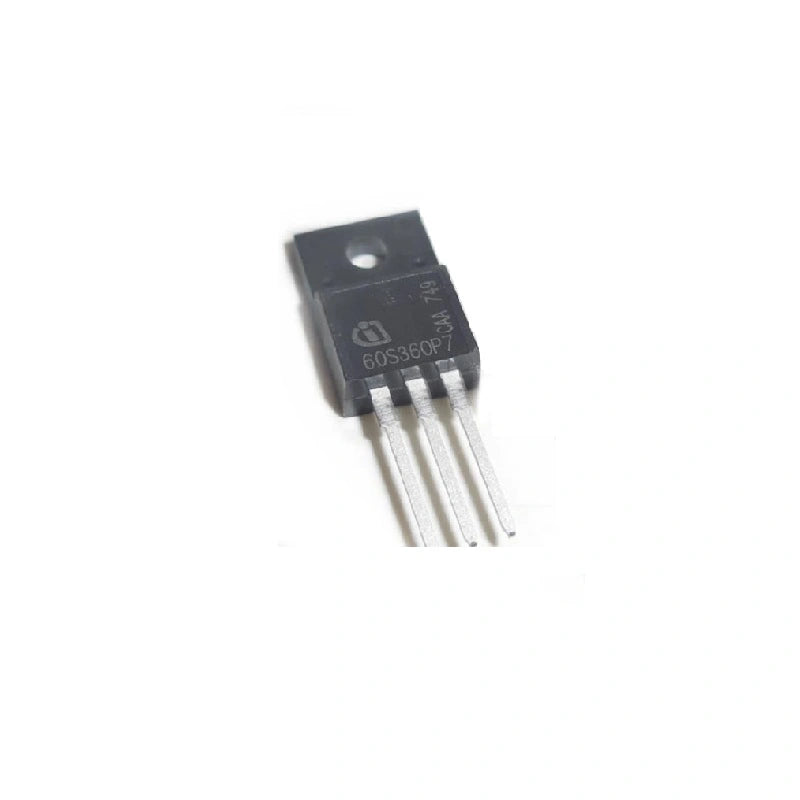

Introducing the IPA60R360P7S, the 7th generation platform of high voltage power MOSFET technology that revolutionizes switching applications. With its exceptional performance and ease of use, this MOSFET is marked as 60S360P7 and offers a range of advantages for various power applications.
Next-Generation High Voltage Power MOSFET for Efficient Switching Applications
One of the standout features of the IPA60R360P7S is its remarkably low switching and conduction losses, resulting in increased efficiency, compactness, and cooler operation in switching applications. It is suitable for both hard and soft switching, including PFC (Power Factor Correction) and LLC (Full-Bridge LLC) topologies.
Technical Features:
| Feature | Description |
|---|---|
| VDS @ Tj,max | 650V |
| RDS(on),max | 360mΩ |
| Qg,typ | 13nC |
| ID,pulse | 26A |
| Eoss @ 400V | 1.6µJ |
| Body diode diF/dt | 900A/µs |
