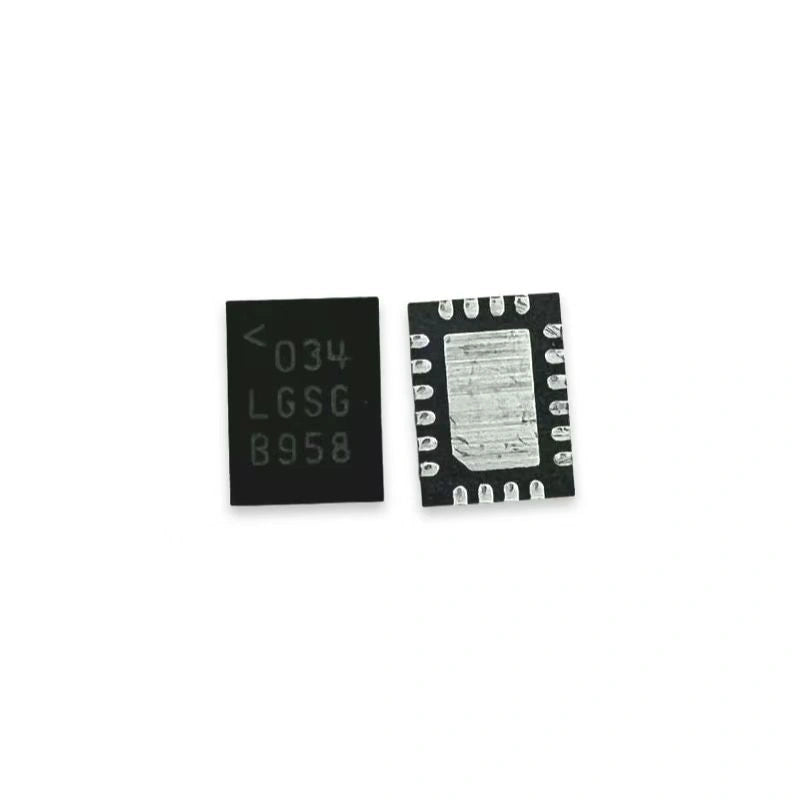

LTC3807EUDC 3807EUDC LGSG Buck Regulator Positive Output Step-Down DC-DC Controller IC 20-QFN for Antminer L3+ Hashboard
Additional details
Shipping fees will be automatically calculated during the checkout process.
Reach out to us via the contact form for further information and assistance.
Couldn't load pickup availability
About the Product
Advanced LTC3807EUDC Buck Regulator for Antminer L3+ Hashboard
Introducing the LTC3807EUDC LGSG Buck Regulator, an advanced and low-IQ synchronous step-down controller designed specifically for the Antminer L3+ hashboard. With its exceptional features and precise performance, this regulator ensures optimal power delivery for efficient mining operations. The LTC3807EUDC is part of the LTC3807 family, known as the 714 LGSG, and offers a wide input voltage range of 4V to 38V, making it highly versatile for various power supply configurations.
Efficient Step-Down DC-DC Controller IC for Enhanced Performance
The LTC3807EUDC features a synchronous power MOSFET stage, which maximizes power efficiency. It includes a TRACK/SS pin for ramping the output voltage during start-up, a precision 0.8V reference for accurate voltage control, and a power good output indicator for monitoring system status. The regulator also offers current foldback and a PLLIN/MODE pin for selecting among Burst Mode operation, pulse-skipping mode, or continuous conduction mode at light loads.
Technical Features:
|
Category |
Integrated Circuits (ICs) |
|
PMIC - Voltage Regulators - DC DC Switching Controllers |
|
|
Package |
Tape & Reel (TR) |
|
Part Status |
Active |
|
Output Type |
Transistor Driver |
|
Function |
Step-Down |
|
Output Configuration |
Positive |
|
Topology |
Buck |
|
Output Phases |
1 |
|
Voltage - Supply (Vcc/Vdd) |
4V ~ 38V |
|
Frequency - Switching |
50kHz ~ 900kHz |
|
Duty Cycle (Max) |
0.99 |
|
Synchronous Rectifier |
Yes |
|
Clock Sync |
No |
|
Control Features |
Current Limit, Enable, Frequency Control, Soft Start, Tracking |
|
Operating Temperature |
-40°C ~ 125°C (TJ) |
|
Mounting Type |
Surface Mount |
|
Package / Case |
20-WFQFN Exposed Pad |
|
Number of Outputs |
1 |
|
Base Product Number |
LTC3807 |
