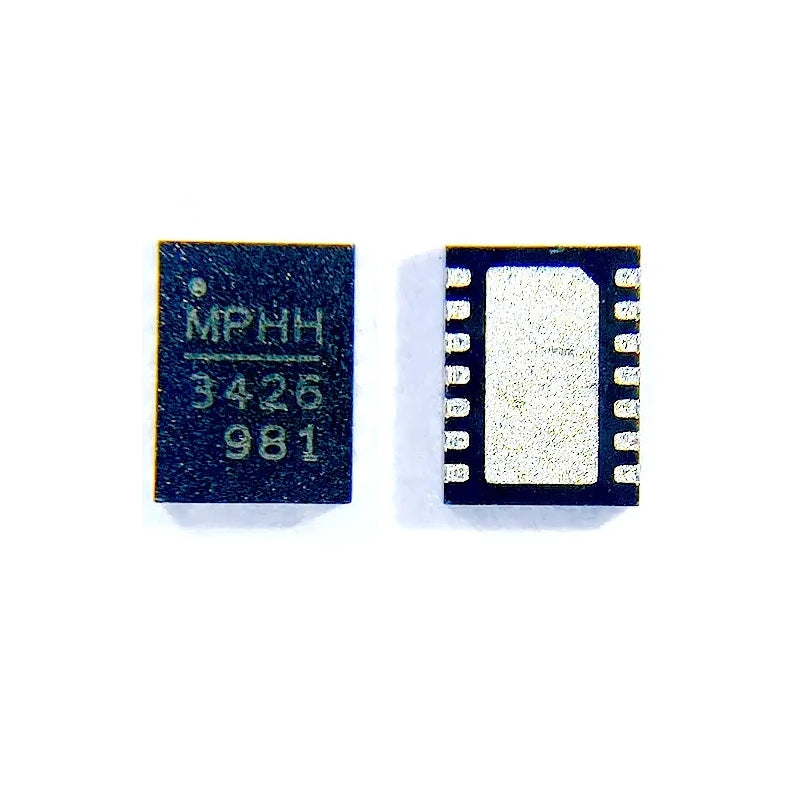

MP3426 MP3426DL-LF-Z Switching Voltage Regulator Step-Up Converter 6A for Antminer

Enhance Performance with MP3426DL-LF-Z Antminer Switching Voltage Regulator

The MP3426DL-LF-Z is a highly efficient and responsive 6A, 90mΩ current-mode boost converter specifically designed for Antminer applications. With programmable switching frequency and Under-Voltage Lockout (UVLO), this voltage regulator offers exceptional performance and flexibility.

Efficient Boost Converter for Antminer - MP3426DL-LF-Z Switching Voltage Regulator

Operating from an input voltage as low as 3.2V, the MP3426DL-LF-Z can generate output voltages up to 35V, making it suitable for a wide range of Antminer devices. Its flexible external compensation pin enables users to customize their loop dynamics, ensuring optimal performance.

One of the key features of the MP3426DL-LF-Z is its programmable frequency of up to 2MHz, allowing for improved filtering and reduced noise. Additionally, the soft-start feature effectively reduces inrush current and can be easily programmed using an external capacitor. The device also provides reliable protection against over-current, over-heating, and under-voltage conditions, ensuring the safety and longevity of your Antminer.

MP3426 Technical Features:
