NTMFS5C604NLT1G 5C604L MOS Chip for Antminer S19 Hydro HHB28601 Hash Board Repair
Additional details
Shipping fees will be automatically calculated during the checkout process.
Reach out to us via the contact form for further information and assistance.
Couldn't load pickup availability
About the Product
Efficient Repair Solution: NTMFS5C604NLT1G 5C604L MOS Chip for Antminer S19 Hydro HHB28601

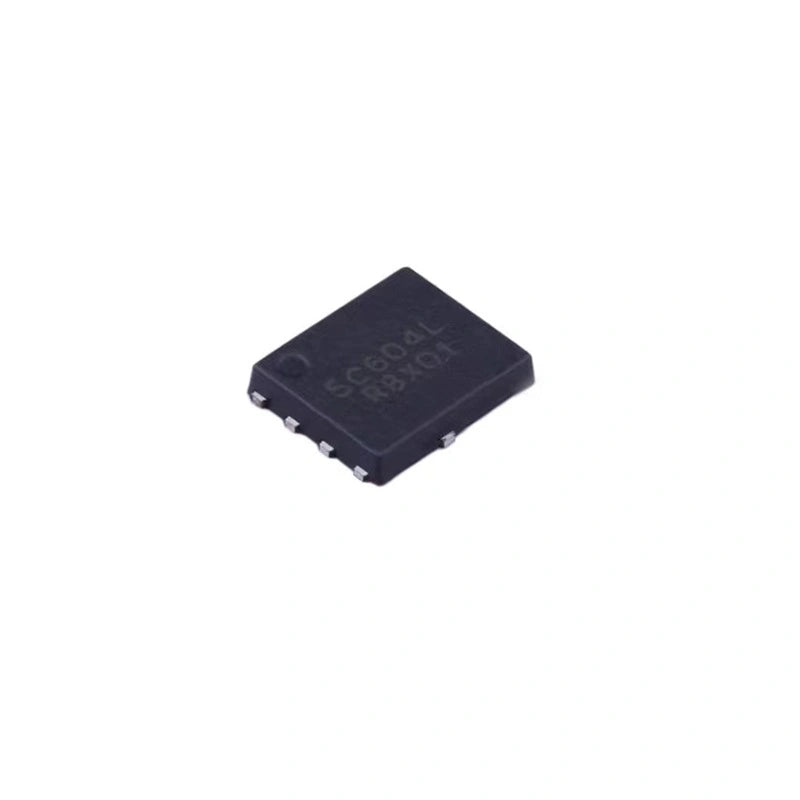

Revive your Antminer S19 Hydro HHB28601 hash board with the high-performance NTMFS5C604NLT1G 5C604L MOS chip. Specifically designed for repair purposes, this MOS chip offers exceptional functionality and compatibility. It is silk screen marked as SC604L and comes in a compact DFN-5 package.
NTMFS5C604NLT1G 5C604L MOS Chip for Antminer S19 Hydro Hash Board
Featuring a 60V drain-source breakdown voltage and a low drain-source resistance (Rds On) of 1.2 mOhms, this MOSFET chip minimizes conduction losses, ensuring efficient power flow. With its small footprint and compact design, it provides a space-saving solution for your mining equipment repairs.
The NTMFS5C604NLT1G MOS chip also boasts low gate charge (Qg) and capacitance, reducing driver losses and optimizing overall performance. It meets lead-free and RoHS compliance standards, making it an environmentally friendly choice.
NTMFS5C604NLT1G MOSFET Features:
| Technical Features | |
|---|---|
| Package / Case | DFN-5 |
| Transistor Polarity | N-Channel |
| Number of Channels | 1 Channel |
| Vds - Drain-Source Breakdown Voltage | 60 V |
| Id - Continuous Drain Current | 287 A |
| Rds On - Drain-Source Resistance | 1.2 mOhms |
| Vgs - Gate-Source Voltage | -20 V, +20 V |
| Vgs th - Gate-Source Threshold Voltage | 1.2 V |
| Qg - Gate Charge | 120 nC |
| Minimum Operating Temperature | -55℃ |
| Maximum Operating Temperature | +175℃ |
| Pd - Power Dissipation | 200 W |
