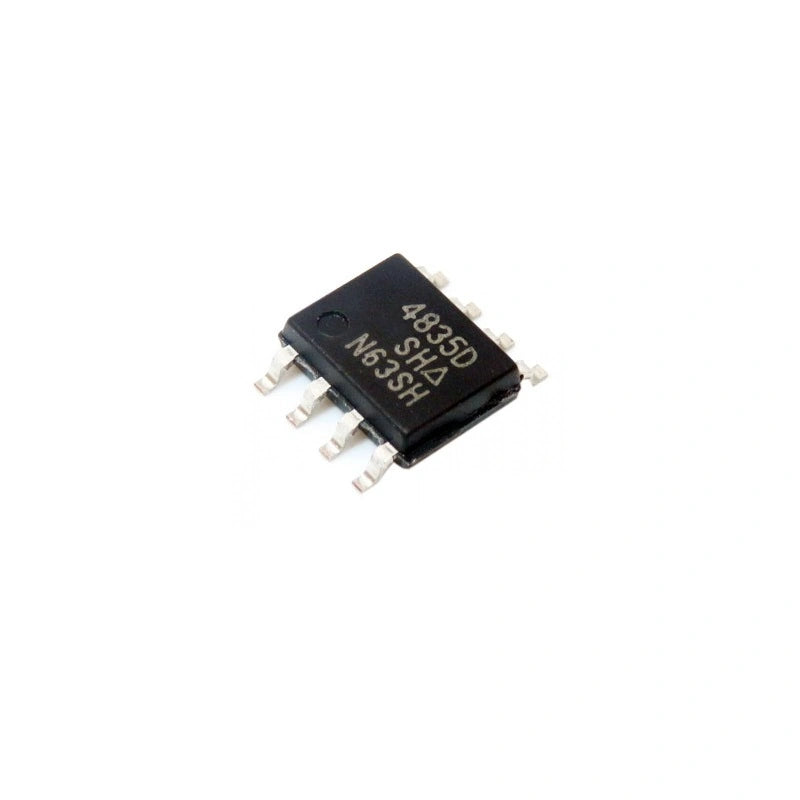

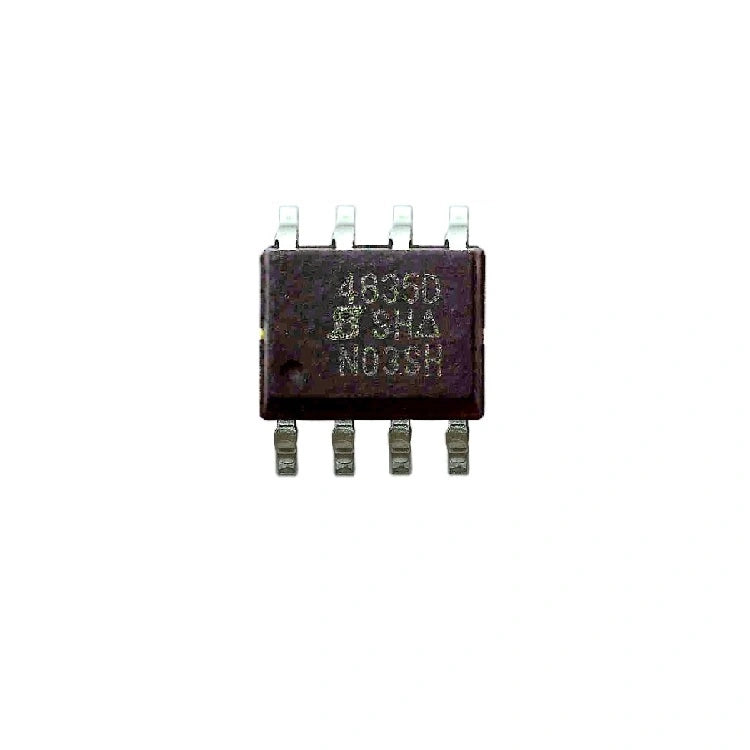

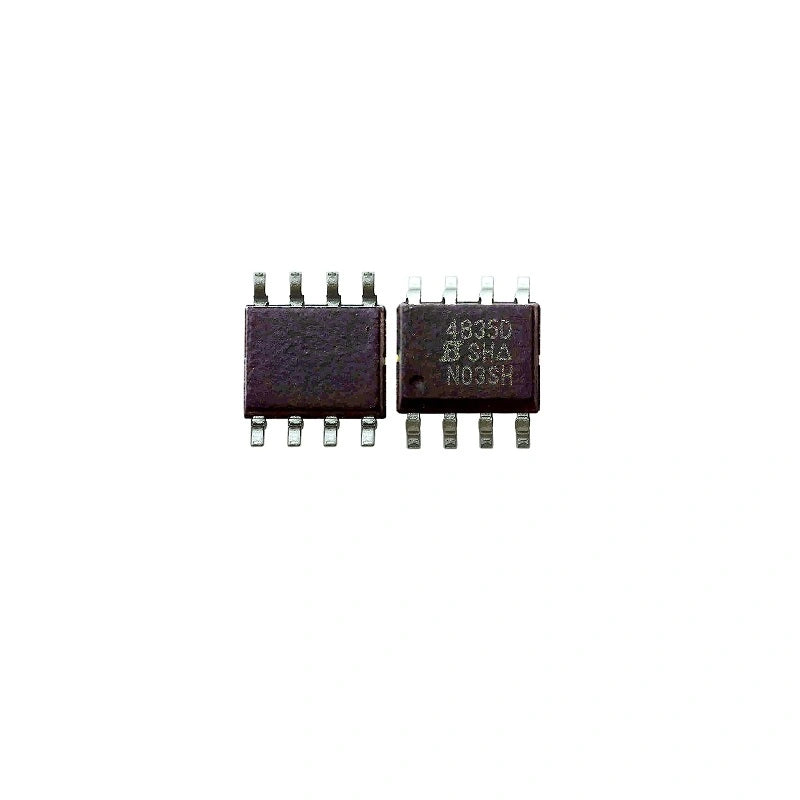

SI4835DY P-Channel MOSFET 30 V 8.8A 1W Surface Mount 8-SOIC
Additional details
Shipping fees will be automatically calculated during the checkout process.
Reach out to us via the contact form for further information and assistance.
Couldn't load pickup availability
About the Product
Fairchild Semiconductor SI4835DY P-Channel MOSFET
Enhance the performance of your electronic devices with the Fairchild Semiconductor SI4835DY P-Channel MOSFET. This active MOSFET, featuring PowerTrench technology, is designed to optimize power sourcing in various applications. With a maximum drain to source voltage (Vdss) of 30V and a continuous drain current (Id) of 8.8A at 25°C, this MOSFET delivers reliable and efficient power results.
Upgrade Your Power Source with Fairchild Semiconductor SI4835DY P-Channel MOSFET
The SI4835DY MOSFET boasts a low on-resistance (Rds On) of 20mOhm at 8.8A and 10V, ensuring minimal power loss and improved performance. It has a gate charge (Qg) of 27 nC at 10V, enabling fast switching and reducing power dissipation. The maximum gate voltage (Vgs) of ±25V provides flexibility in voltage control.
Efficient PowerTrench Bulk MOSFET for Reliable Performance
With an input capacitance (Ciss) of 1680 pF at 15V, the SI4835DY offers effective power management capabilities. It is packaged in a compact 8-SOIC bulk package, making it suitable for surface mount applications.
Upgrade your power source technology with the Fairchild Semiconductor SI4835DY P-Channel MOSFET and experience enhanced performance and efficiency in your electronic devices.
Technical Features:
|
Category |
Discrete Semiconductor Products |
|
Transistors |
|
|
FETs, MOSFETs |
|
|
Single FETs, MOSFETs |
|
|
Mfr |
Fairchild Semiconductor |
|
Series |
PowerTrench® |
|
Package |
Bulk |
|
Product Status |
Active |
|
FET Type |
P-Channel |
|
Technology |
MOSFET (Metal Oxide) |
|
Drain to Source Voltage (Vdss) |
30 V |
|
Current - Continuous Drain (Id) @ 25°C |
8.8A (Ta) |
|
Drive Voltage (Max Rds On, Min Rds On) |
4.5V, 10V |
|
Rds On (Max) @ Id, Vgs |
20mOhm @ 8.8A, 10V |
|
Vgs(th) (Max) @ Id |
3V @ 250µA |
|
Gate Charge (Qg) (Max) @ Vgs |
27 nC @ 10 V |
|
Vgs (Max) |
±25V |
|
Input Capacitance (Ciss) (Max) @ Vds |
1680 pF @ 15 V |
|
Power Dissipation (Max) |
1W (Ta) |
|
Operating Temperature |
-55°C ~ 150°C (TJ) |
|
Mounting Type |
Surface Mount |
|
Package / Case |
8-SOIC (0.154", 3.90mm Width) |
