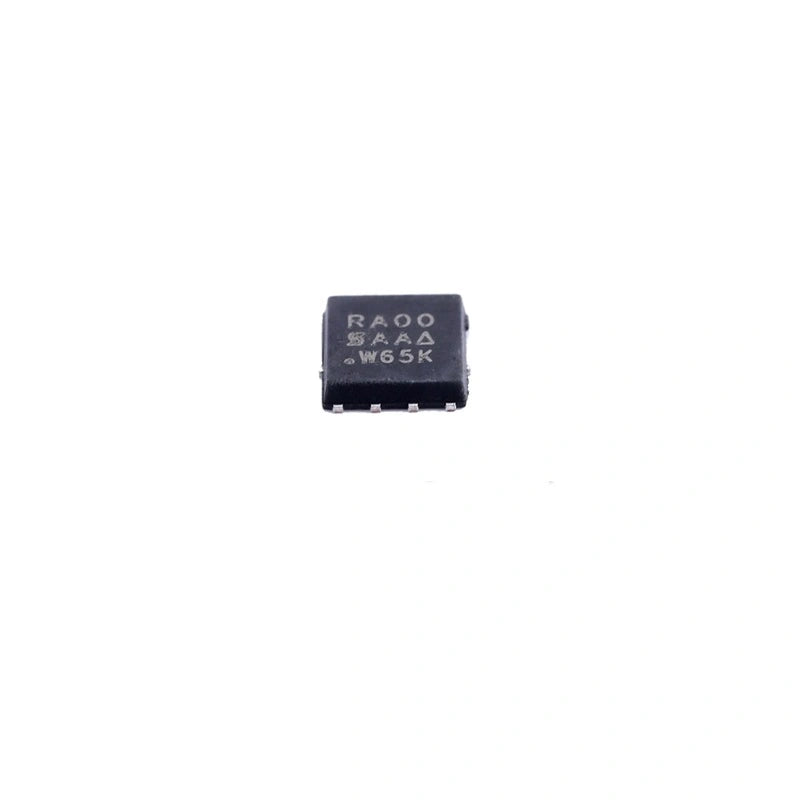

SIRA00DP-T1-GE3 30V 100A (D-S) N-channel synchronous rectification MOSFET
Additional details
Shipping fees will be automatically calculated during the checkout process.
Reach out to us via the contact form for further information and assistance.
Couldn't load pickup availability
About the Product
SIRA00DP-T1-GE3 MOSFET – Boost Your DC/DC and ORing Applications
High-Performance N-Channel Synchronous Rectification MOSFET with 100A Continuous Drain Current
Looking for a reliable MOSFET? Look no further than the powerful SIRA00DP-T1-GE3 N-channel synchronous rectification MOSFET. Designed for both DC/DC and ORing applications, this MOSFET boasts a Vds of 30V and continuous drain current of 100 A, making it perfect for high power density DC/DC, VRM, and embedded DC/DC needs. Its resistance between drain and source is only 830 uOhms, meaning you'll experience lightning-fast charging speeds.
With a working temperature range from -55℃ to +150℃, this MOSFET is built to last. Ready to take your project to the next level? Add the SIRA00DP-T1-GE3 MOSFET to your toolkit today.
|
Category |
Discrete Semiconductor Products |
|
Transistors |
|
|
FETs, MOSFETs |
|
|
Single FETs, MOSFETs |
|
|
Mfr |
Vishay Siliconix |
|
Series |
TrenchFET® |
|
FET Type |
N-Channel |
|
Technology |
MOSFET (Metal Oxide) |
|
Drain to Source Voltage (Vdss) |
30 V |
|
Current - Continuous Drain (Id) @ 25°C |
100A (Tc) |
|
Drive Voltage (Max Rds On, Min Rds On) |
4.5V, 10V |
|
Rds On (Max) @ Id, Vgs |
1mOhm @ 20A, 10V |
|
Vgs(th) (Max) @ Id |
2.2V @ 250µA |
|
Gate Charge (Qg) (Max) @ Vgs |
220 nC @ 10 V |
|
Vgs (Max) |
+20V, -16V |
|
Input Capacitance (Ciss) (Max) @ Vds |
11700 pF @ 15 V |
|
Power Dissipation (Max) |
6.25W (Ta), 104W (Tc) |
|
Operating Temperature |
-55°C ~ 150°C (TJ) |
|
Mounting Type |
Surface Mount |
|
Package / Case |
PowerPAK® SO-8 |
|
Base Product Number |
SIRA00 |
