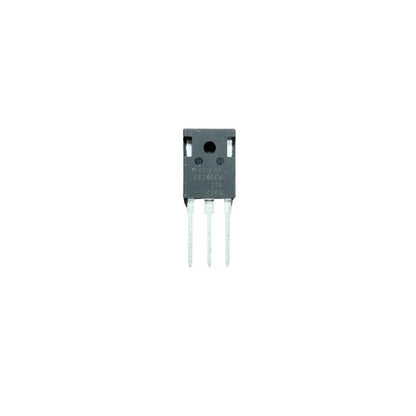

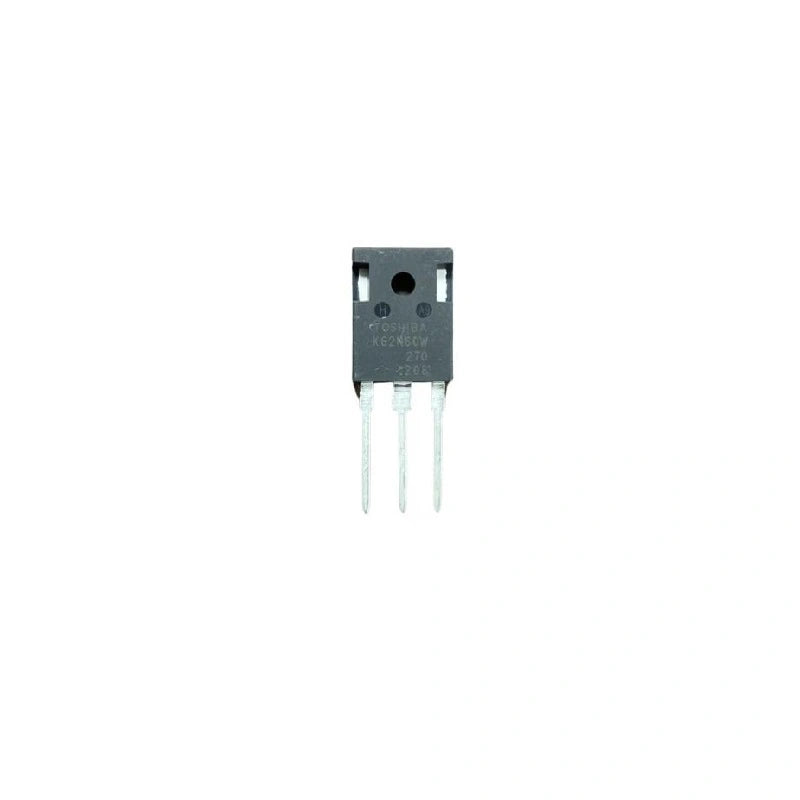

TK62N60W K62N60W N-Channel MOSFET 600V Through Hole TO-247 Bitmain APW3 APW8 Power Supply Unit replacement

Name: TK62N60W K62N60W N-Channel MOSFET 600V Through Hole TO-247 Bitmain APW3 APW8 Power Supply Unit replacement
Brand: LYS Shenzhen
Price: 117.0 THB
Availability: InStock

117.00 ฿ THB

117.00 ฿ THB 142.00 ฿ THB

Sale Sold out

Shipping calculated at checkout.

Additional details

Shipping fees will be automatically calculated during the checkout process.

Reach out to us via the contact form for further information and assistance.

Product variants

Quantity

Secure checkout with

About the Product

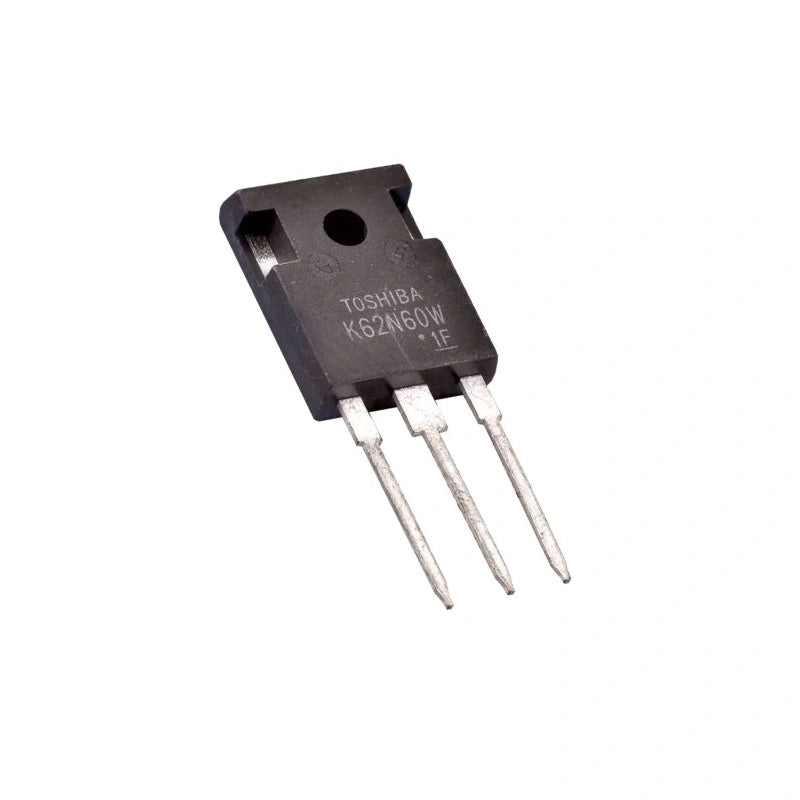

High-Voltage Replacement MOSFET for Bitmain PSUs - Original Toshiba K62N60W

The Original Toshiba K62N60W MOSFET is the ideal high-voltage replacement for Bitmain power supply units (PSUs). This N-Channel field effect transistor offers a maximum drain to source voltage (Vdss) of 600V and continuous drain current (Id) of 61.8A, making it suitable for repairing ASIC miner control boards. It features a compact TO-247 package, ensuring easy installation in various applications.

Reliable Replacement MOSFET for Bitmain PSUs - Original Toshiba K62N60W, TO-247 Package

Crafted with high-quality MOSFET technology, the K62N60W provides efficient performance and reliability. Its low drain-source resistance (Rds On) of 40mOhm at 30.9A and 10V gate-source voltage (Vgs) allows for effective power management. With a gate charge (Qg) of 180nC at 10V, it offers optimal control for smooth operation.

This Original Toshiba MOSFET is RoHS compliant and widely used in communication equipment, wired networks, EPOS systems, personal computers, and laptop computers. With a wide operating temperature range of -40°C to 150°C, it ensures reliable performance in various environments.

Technical Features:

Category	Discrete Semiconductor Products
Category	Transistors - FETs, MOSFETs - Single
Package	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	61.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	40mOhm @ 30.9A, 10V
Vgs(th) (Max) @ Id	3.7V @ 3.1mA
Gate Charge (Qg) (Max) @ Vgs	180 nC @ 10 V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	6500 pF @ 300 V
FET Feature	Super Junction
Power Dissipation (Max)	400W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247
Package / Case	TO-247-3
Base Product Number	TK62N60
