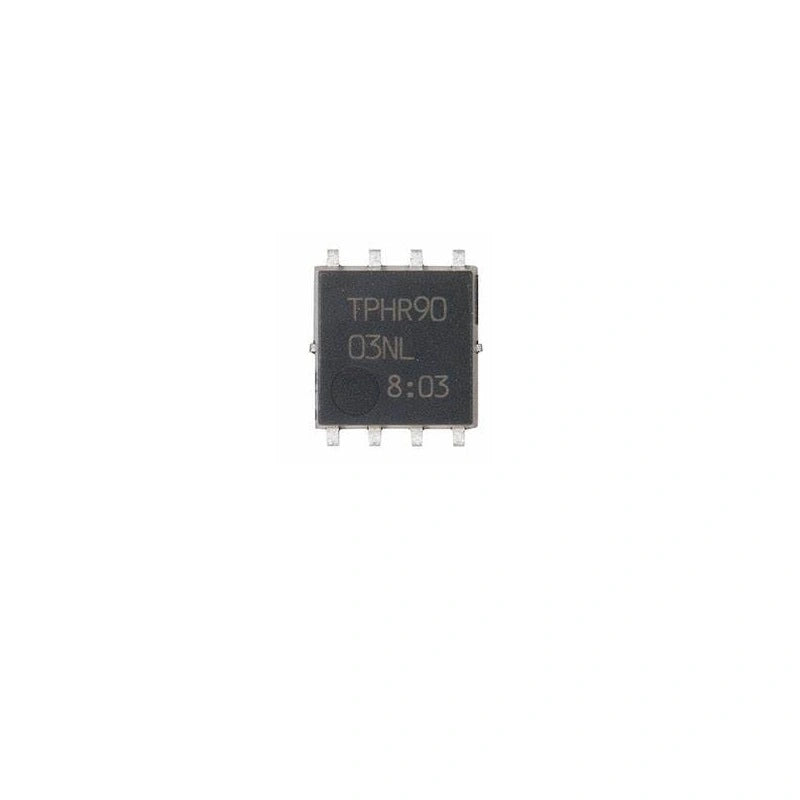

TPHR9003NL Transistor MOSFET N-CH Si 30V 220A 8-Pin SOP Advance T/R for Antminer L3+
Additional details
Shipping fees will be automatically calculated during the checkout process.
Reach out to us via the contact form for further information and assistance.
Couldn't load pickup availability
About the Product
TPHR9003NL Transistor MOSFET for Antminer Hashboard
Keep Your Miner Running Smoothly with Proper Chip Voltage
Ensure your Antminer hashboard MOS chips are running smoothly with the TPHR9003NL Transistor MOSFET. This N-CH Si 30V 220A chip is fixed to the hash disk and suitable for multiple hash boards. When your miner can’t recognize the hashboard or the test fixture fails, check the chip voltage to prevent MOS damage from lightning strikes or surges. Maintain your mining rig's performance with the TPHR9003NL Transistor MOSFET.
|
Product Category |
Power MOSFET |
|
Material |
Si |
|
Process Technology |
U-MOS VIII-H |
|
Configuration |
Single Quad Drain Triple Source |
|
Channel Mode |
Enhancement |
|
Channel Type |
N |
|
Number of Elements per Chip |
1 |
|
Maximum Drain Source Voltage (V) |
30 |
|
Maximum Gate Source Voltage (V) |
±20 |
|
Maximum Gate Threshold Voltage (V) |
2.3 |
|
Maximum Continuous Drain Current (A) |
220 |
|
Maximum Gate Source Leakage Current (nA) |
100 |
|
Maximum IDSS (uA) |
10 |
|
Maximum Drain Source Resistance (mOhm) |
0.9 at 10V |
|
Typical Gate Charge at Vgs (nC) |
74 at 10V|32 at 4.5V |
|
Typical Gate Charge at 10V (nC) |
74 |
|
Typical Input Capacitance at Vds (pF) |
5300 at 15V |
|
Maximum Power Dissipation (mW) |
78000 |
|
Typical Fall Time (ns) |
15 |
|
Typical Rise Time (ns) |
9.6 |
|
Minimum Operating Temperature (°C) |
-55 |
|
Maximum Operating Temperature (°C) |
150 |
|
Packaging |
Tape and Reel |
|
Automotive |
No |
|
Standard Package Name |
SOP |
|
Pin Count |
8 |
|
Supplier Package |
SOP Advance |
|
Military |
No |
|
Mounting |
Surface Mount |
|
Package dimensions |
0.95 x 5 x 5 mm |
|
PCB changed |
8 |
|
Lead Shape |
No Lead |
