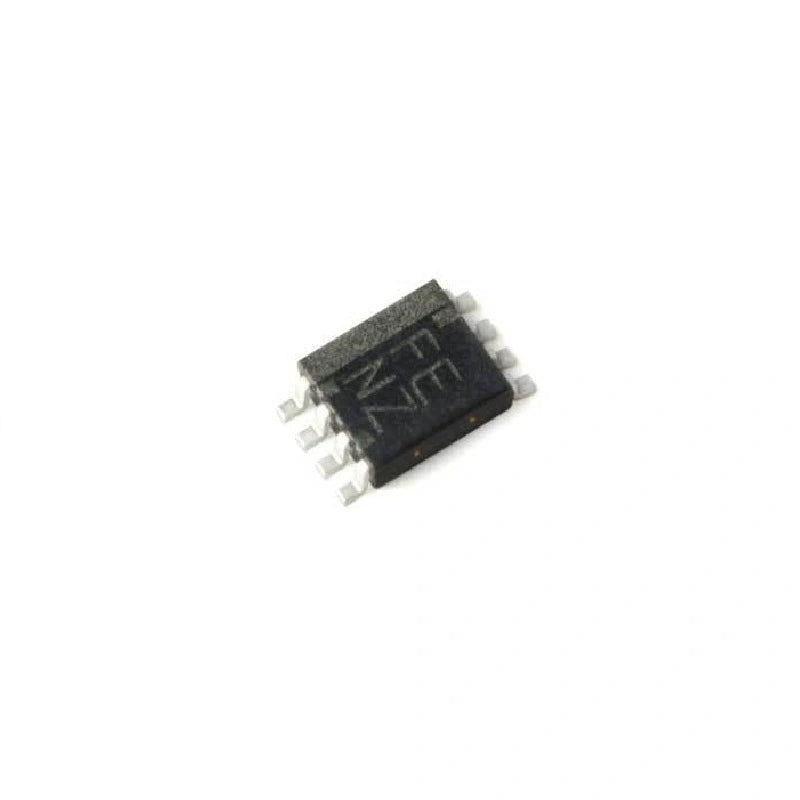

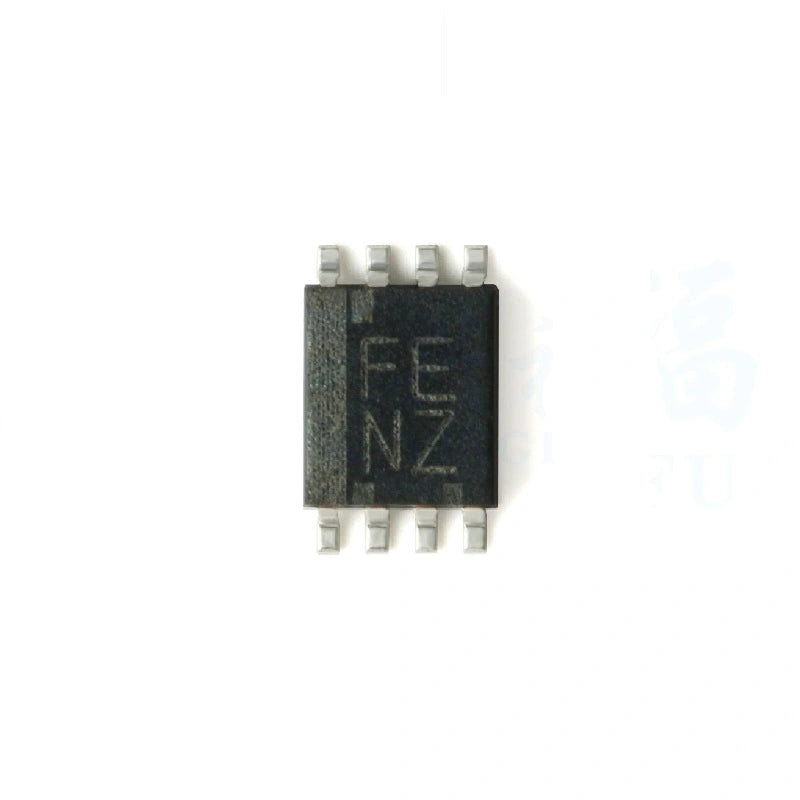

TXS0102DCUR FENZ Bidirectional Voltage Level Translator IC

The TXS0102DCUR FENZ is a cost-effective and reliable 2-bit bidirectional voltage level translator IC. This voltage level converter excels in bridging mixed voltage systems, making it a perfect choice for control board maintenance and other applications requiring voltage translation.

Affordable and High-Quality 2-Bit Bidirectional Voltage Level Converter

With its compact size and superior performance, the TXS0102DCUR FENZ ensures seamless communication between devices operating at different voltage levels. It is designed to provide bidirectional conversion between two voltage domains, allowing data transmission in both directions.

Key Features:

• Translator Type: Voltage Level
• Channel Type: Bidirectional
• Number of Circuits: 1
• Channels per Circuit: 2
• Voltage - VCCA: 1.65V ~ 3.6V
• Voltage - VCCB: 2.3V ~ 5.5V
• Output Type: Open Drain, Push-Pull
• Data Rate: 24Mbps
• Operating Temperature: -40°C ~ 85°C (TA)
• Features: Auto-Direction Sensing
• Mounting Type: Surface Mount
• Package / Case: 8-VFSOP (0.091", 2.30mm Width)
• Base Product Number: TXS0102

Ideal for Mixed Voltage Systems and Control Board Maintenance

The TXS0102DCUR FENZ offers auto-direction sensing, simplifying the design and ensuring proper data flow without the need for additional control signals. It can operate at data rates up to 24Mbps, enabling fast and reliable data transmission.

This voltage level translator IC is suitable for various applications, including mixed voltage system integration, control board maintenance, and other scenarios where voltage translation is required. It operates within a wide temperature range from -40°C to 85°C, allowing reliable performance in diverse environments.

Technical Features Table:
