SMA to IPEX RF Cable RF1.13 150mm – 11mm Thread Length Antenna Connector

SMA to IPEX RF Cable RF1.13 – 150mm Antenna Connection Cable

This SMA to IPEX RF cable is designed for reliable RF signal transmission between wireless modules and external antennas. It is commonly used with WiFi, LoRa, Bluetooth, and IoT communication modules requiring compact and low-loss antenna connections.

Built with RF1.13 coaxial cable, this assembly provides stable impedance control, good flexibility, and secure connector retention. It is suitable for embedded systems, development boards, and industrial wireless equipment.

Key Features

• RF1.13 low-loss coaxial cable for stable signal transmission
• SMA female (SMA-K) to IPEX connector configuration
• 150mm cable length for flexible internal routing
• 11mm SMA thread length for secure panel mounting
• Compact design suitable for wireless modules and antennas

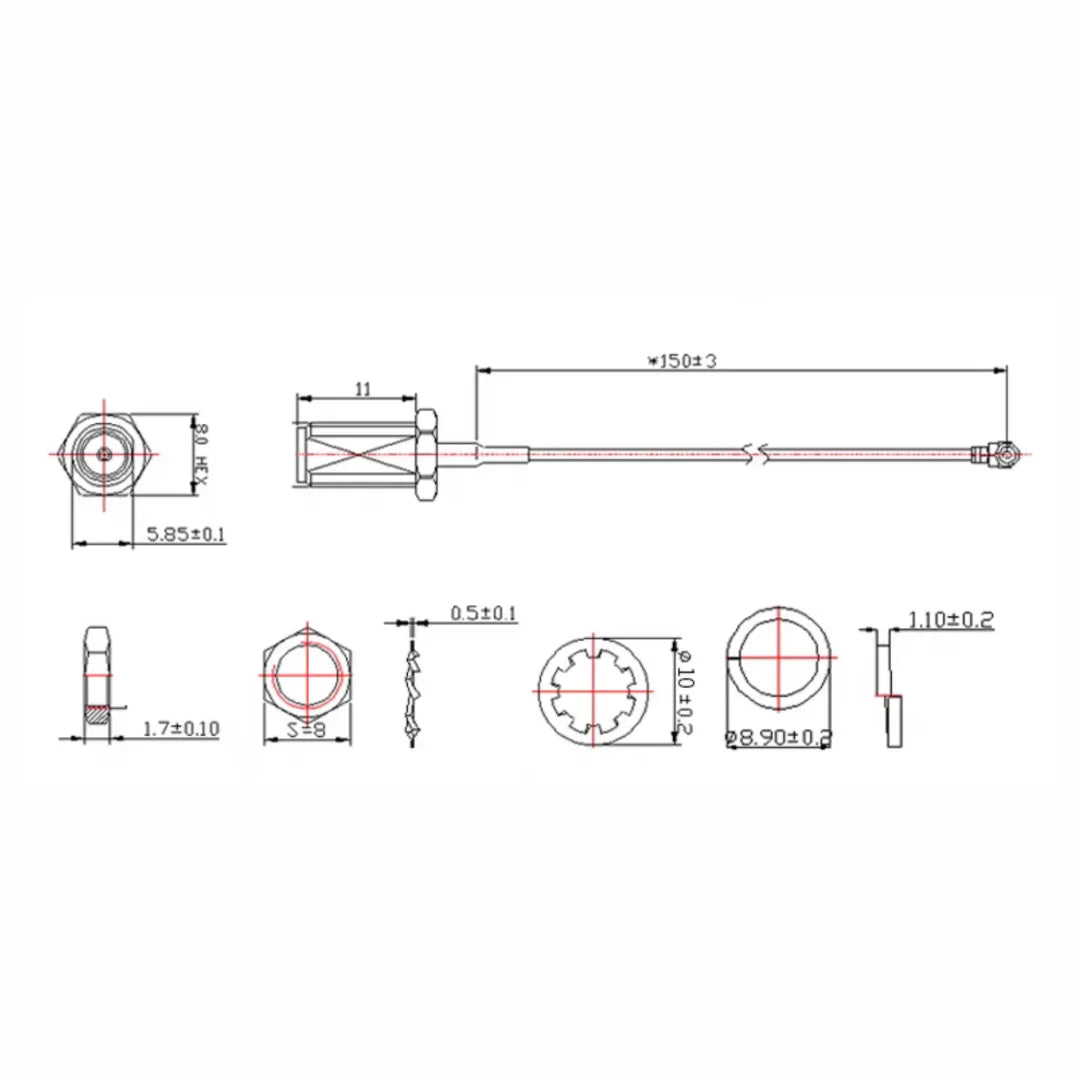

Technical Specifications

Typical Applications

• WiFi modules and development boards
• LoRa and IoT wireless communication modules
• ESP8266 / ESP32 antenna connections
• External antenna routing for embedded devices
• Industrial and smart device wireless systems

B2B & Wholesale Supply

We operate a dedicated B2B department supporting bulk orders, OEM integration, and wholesale distribution. This RF cable is supplied to professional integrators, repair centers, and international distributors. For volume requirements or long-term supply projects, please contact our sales team.
