Ra-01H SX1276 LoRa Wireless Module 868MHz SPI

$3.90 USD
$3.90 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Get Business Pricing

Detalles adicionales

Los gastos de envío se calcularán automáticamente durante el proceso de pago.

Comuníquese con nosotros a través del formulario de contacto para obtener más información y asistencia.
Secure checkout
SSL encryption & invoicing options
Worldwide shipping
Export-ready customs documentation
QC-tested spare parts
Specialized in ASIC miner hardware
Technical support
Assistance from mining engineers

Have questions about this product? Our team is here to help — just reach out on WhatsApp.

💬 Contact Us on WhatsApp

About the Product

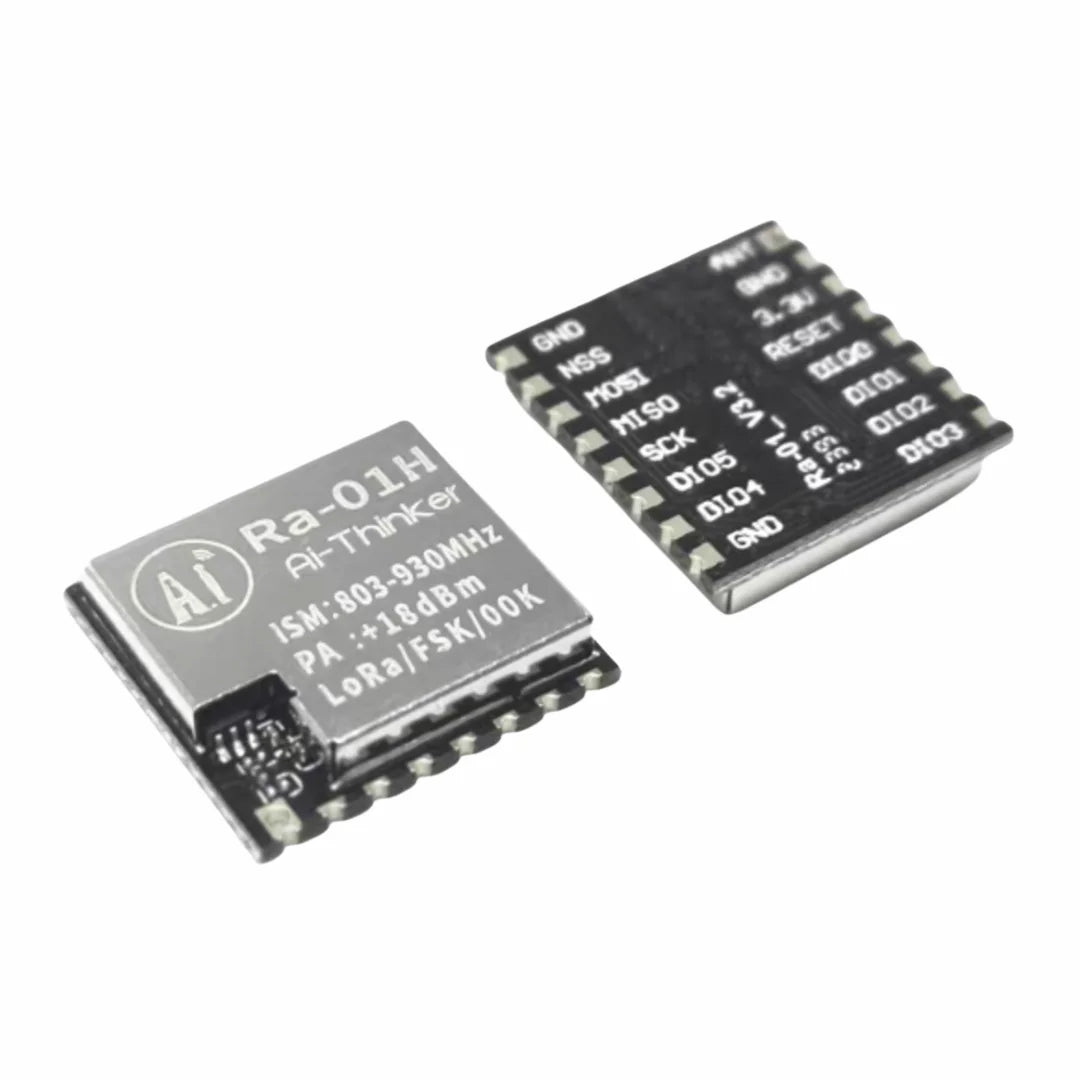

SX1276 LoRa 868MHz Wireless Module – Ra-01H

The Ra-01H is a compact LoRa spread-spectrum wireless module based on the Semtech SX1276 chipset. Designed for long-range, low-power communication, it operates in the 868 MHz band and uses an SPI interface for flexible system integration.

This module is optimized for industrial and IoT applications requiring stable transmission, strong anti-interference performance, and low power consumption. It supports external antennas, making it suitable for deployments where extended communication distance is required.

Key Features

  • Semtech SX1276 LoRa spread-spectrum RF chipset
  • 868 MHz operating frequency (EU band)
  • SPI communication interface
  • Low power consumption for battery-powered devices
  • High receiver sensitivity and strong anti-interference capability
  • Compact SMD-16 package for embedded designs
  • External antenna support for extended range

Technical Specifications

Parameter Specification
Model Ra-01H
Chipset Semtech SX1276
Frequency Range 803–930 MHz (Typical: 868 MHz)
Communication Interface SPI
Supply Voltage 3.3 V
Data Rate Up to 300 kbps
Transmit Current (868 MHz) 103 mA
Receive Current 12.15 mA
Standby Current 1.6 mA
Antenna Type External spring antenna
Package SMD-16
Dimensions 17 × 16 × 3.2 mm
Operating Temperature -30 °C to +85 °C
Storage Conditions -40 °C to +90 °C, <90% RH
Weight 0.46 g

Typical Applications

  • Automatic meter reading systems
  • Security and alarm systems
  • Remote irrigation and agricultural monitoring
  • Industrial IoT communication nodes
  • Smart city and infrastructure monitoring
