High-Fidelity 2SA1943 PNP Audio Power-Matching Transistor for Amplifier Output
Additional details
Shipping fees will be automatically calculated during the checkout process.
Reach out to us via the contact form for further information and assistance.
Couldn't load pickup availability
About the Product

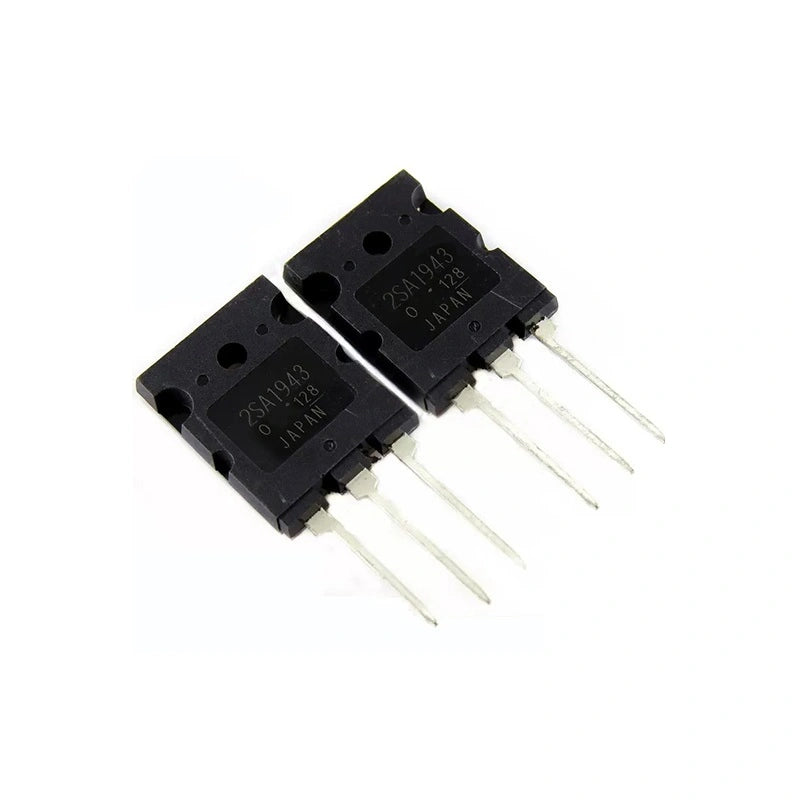

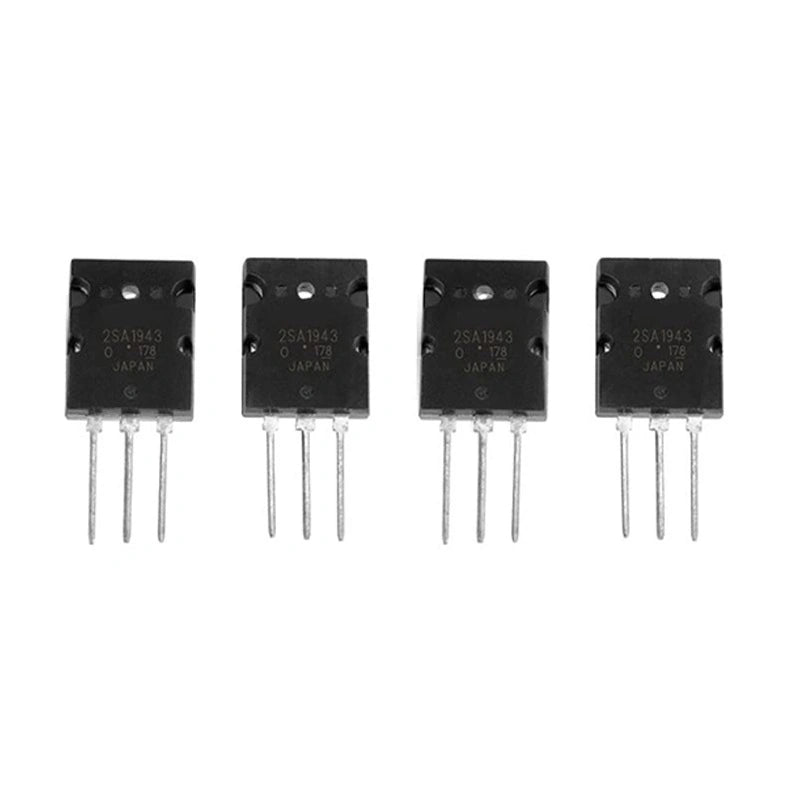

High-Capacity 2SA1943 PNP Audio Power-Matching Transistor
The 2SA1943 is a PNP audio power-matching transistor specifically designed for amplifier audio output applications, delivering high-fidelity audio performance. With its high current capability (IC = 15A) and high transition frequency (typically fT = 30 MHz), this transistor ensures excellent audio reproduction and reliability.
Deliver High-Quality Audio Output with the 2SA1943 PNP Transistor
Featuring a high collector voltage (VCEO = -230V minimum), the 2SA1943 is well-suited for high-fidelity audio frequency amplifier output stages. It is the perfect complement to the 2SC5200 transistor, offering optimal compatibility in amplifier designs.
2SA1943 PNP Audio Power-Matching Transistor Features:
| Feature | Details |
|---|---|
| Transistor Type | PNP |
| Collector Current (IC) | 15A |
| Collector-Emitter Voltage | VCEO = -230V (minimum) |
| Complementary Transistor | 2SC5200 |
| Transition Frequency | typically fT = 30 MHz |
| Recommended Application | 100-W high-fidelity audio amplifier |
