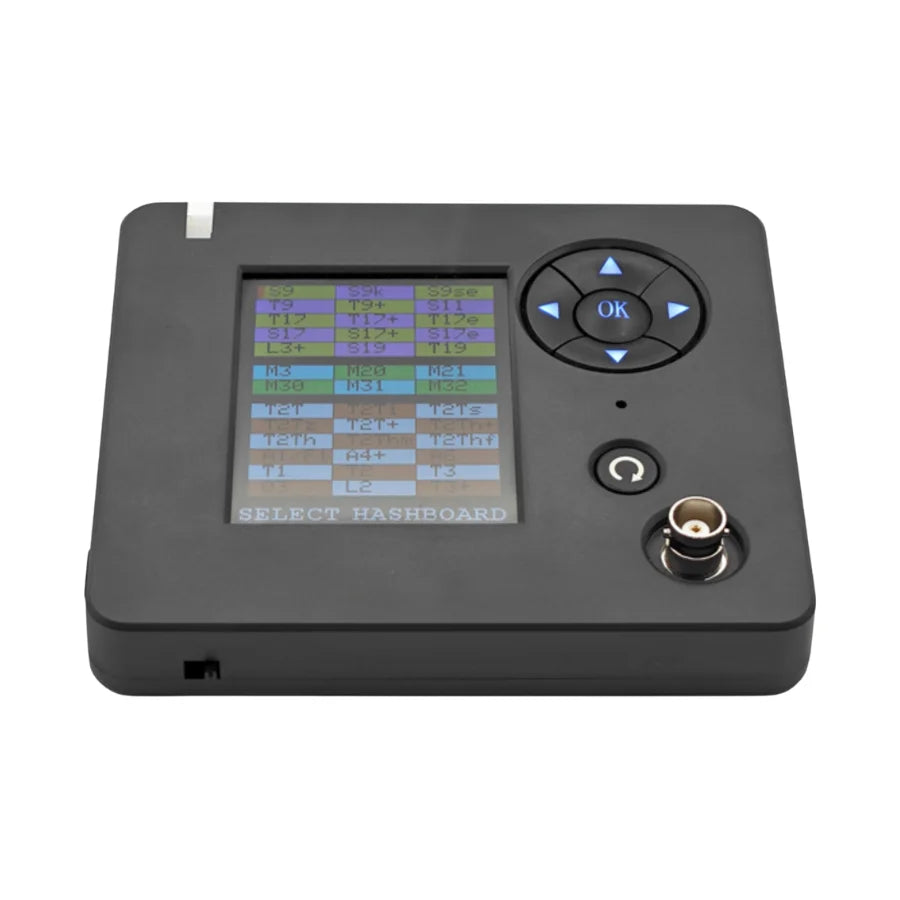

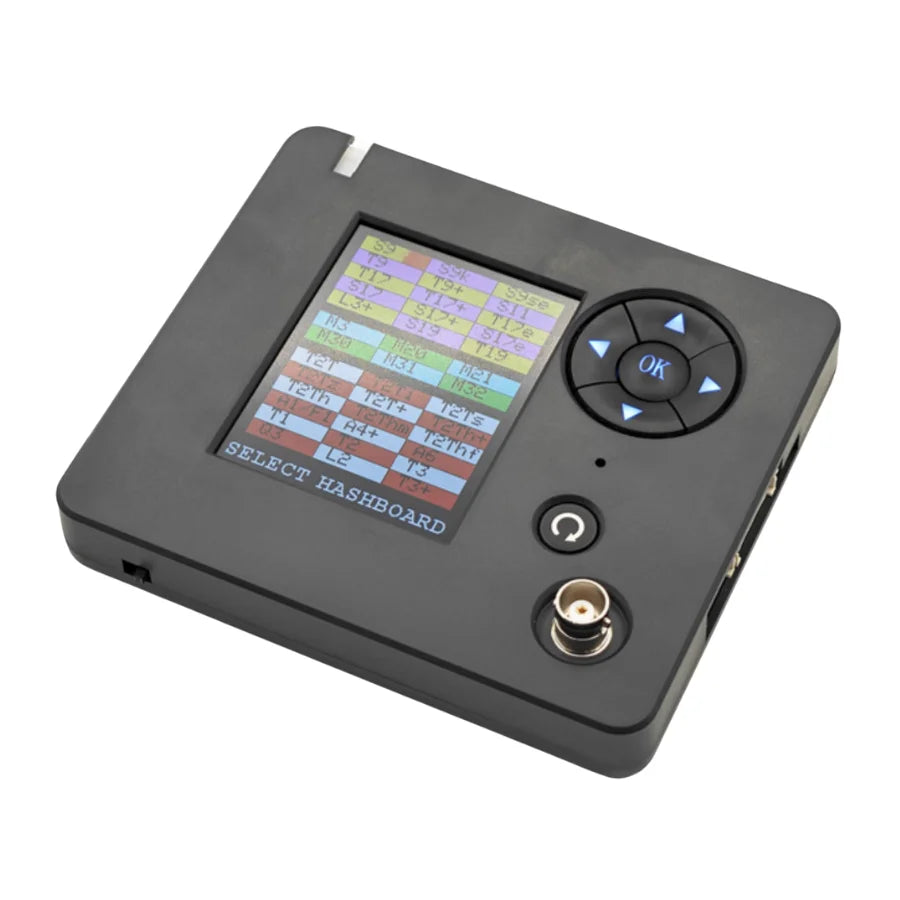

K8 Universal ASIC Hashboard & PSU Tester for Repair Labs

K8 Universal ASIC Hashboard & PSU Tester – Fast, Accurate Diagnostics

The K8 Multifunctional ASIC Tester is a professional diagnostic tool for repair shops, mining farms, and ASIC service engineers. Supporting 70+ hashboard models and 20+ smart PSU models, it delivers faster diagnostics and increased accuracy for multi-brand maintenance workflows.

Key Benefits

• 🧩 Multi-brand compatibility: Works with Antminer, Whatsminer, Innosilicon, Aixin, Cheetah, and more.
• ⚡ High-speed diagnosis: Up to 10× faster detection and 4× higher accuracy compared to older testers.
• 💾 EEPROM flash & editor: Edit and synchronize hashboard serial data without PC or PSU connection.
• 🔌 PSU testing support: Compatible with 20+ smart power supply models.
• 🔧 Chip-level analysis: Detects healthy, weak, and faulty ASIC chips across multiple modes.
• 📊 Designed for technicians: Shortens repair time and reduces mining farm downtime.

Supported Miner Models

• Antminer: S9–S21 series, T9+, L3+, L7, D7, KS3, KS5, E9/E9 Pro
• Whatsminer: M20, M21, M30, M31, M32, M50 series
• Innosilicon: T1–T3 series, A4/A6 series, L1/L2 series
• Other brands: Aixin, Cheetah, Aladdin, Dragon (A1, Q3, F1, S5, T1)

Supported Power Supply Models

Antminer: APW8, APW9/9+, APW12
Whatsminer: P20, P21, P21e/d, P221, P222C, P221C, P221B, P222B
Innosilicon: G1138, G1240, G1266, G1286, G1306, QB2412 series
Aixin & Cheetah: TT240015P, HQ2500-A02

Use Cases

• ✔ ASIC repair labs and service centers
• ✔ Mining farm maintenance teams
• ✔ Electronics & diagnostic engineers
• ✔ Large fleet operators requiring fast RMA processing

What's Included

• K8 main unit
• Force plates for stable board diagnostics
• Antminer hashboard test cable
• Whatsminer hashboard test cable
• Innosilicon hashboard test cable
• Oscilloscope test cable
• Power adapter cable (12V compatible)

K8 Technical Features

FAQ

Which technicians is the K8 designed for?
Repair labs, field technicians, mining farms, and service centers.

Does the K8 support PSU diagnostics?
Yes, it supports 20+ smart PSU models across multiple brands.

Do I need a PC for EEPROM operations?
No, EEPROM read/import/edit can be done without PC or PSU.

Demonstration Video

The K8 is a complete hashboard and PSU testing platform for professional ASIC repair and maintenance teams.
