Crypto ASIC Miners Data Cables & Adapters

Data Cables and Adapters for ASIC Miner Hashboard, Control Board, and PSU Repair

Data cables are the unsung culprits behind a huge share of "mystery" miner failures — hashboard X errors that no chip swap fixes, control boards that show no IP because the signal cable has a single broken trace, fan PWM signals dropping out because an adapter cable seized. This collection covers every signal cable, ribbon, and adapter we stock for crypto miner repair — 14-pin, 16-pin, 18-pin and 22-pin ribbon cables for control-board-to-hashboard signal, fan adapter cables (4-pin square to 4-pin linear), USB EEPROM programming cables, PSU signal cables, and conductive copper strips for high-current Avalon repair.

Common data cable failures and the symptoms they cause

Three symptom patterns that almost always trace back to a data cable :

• Hashboard reports X errors or 0 / partial chip count — when a hashboard reports phantom errors but the chips test good individually, the ribbon cable between control board and hashboard is the most common cause. Replace the 18-pin or 22-pin signal cable before pulling chips.
• Control board shows no IP, no DHCP response — if the control board boots but never gets an IP, the data cable between the network port and the main board (or between control board and adapter) may have a broken conductor.
• Fan speed simulator not detected, miner shuts down on thermal — fan adapter cables (4-pin linear to 4-pin square ATX) that look fine externally can have a broken PWM line. Swap the adapter before assuming the fan or simulator is bad.

What's in this collection

Specific data cables and adapters stocked, organised by use case :

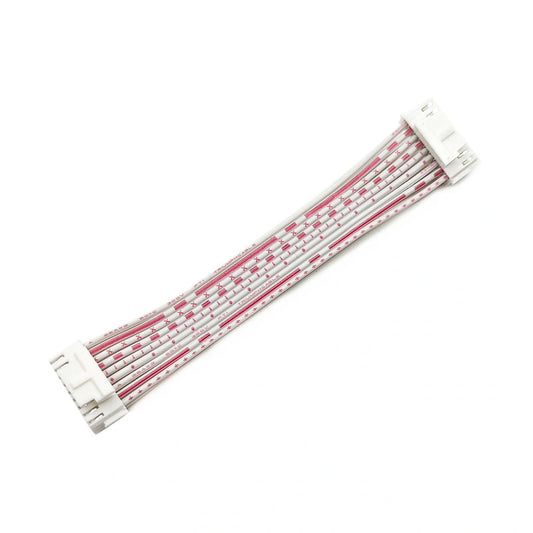

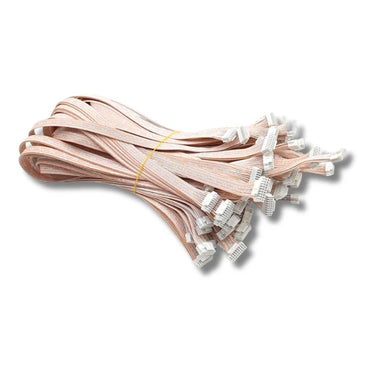

• Hashboard ribbon cables — 18-pin data cable for Antminer and Iceriver (20cm / 30cm / 60cm length options), 22-pin Whatsminer flat ribbon signal cable for control-board-to-hashboard, 16-pin signal cable for M20 / M21 / M30 / M31 test fixture connections, Goldshell 18-pin data cable.
• EEPROM programming cables — universal hashboard EEPROM programming and decoding tool for Antminer and Whatsminer hashboards. Critical for hashboard remap repairs.
• Fan adapter cables — kit with 4-pin linear to 4-pin square ATX connectors (set of 2 cables), Whatsminer 6-pin to 4-pin fan adapter cable for control board cooling fan, fan adapter cables for immersion cooling conversions.
• PSU signal and voltage cables — Bitmain PSU 4P 60cm voltage regulating cable, Whatsminer power supply unit signal cable P21 / P21e / P21d 14-pin dual 7-pin flex, 10-pack PCI-E 6-pin power cables for Bitmain APW3 / APW7 PSUs.

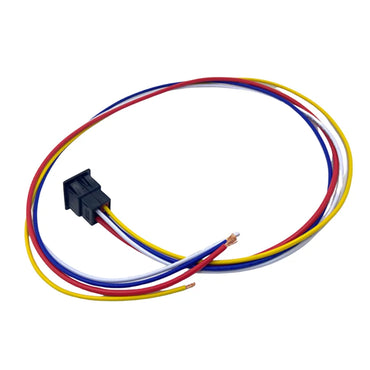

• Hydro and immersion cables — Whatsminer M53 hydro miner power cable female socket assembly, oil-resistant signal cables for immersion-converted setups.
• Avalon conductive parts — Avalon 1166 / 1246 conductive copper sheet for high-current miner power connection, Avalon 1346 / 1326 conductive copper strip for PSU connection rework.

Why source data cables from LYS Shenzhen

Three reasons component-level repair shops standardise on our data cables :

• Continuity-tested — every signal cable is continuity-checked before shipping. We catch the bad ones before they ship to you, not after they cause a hashboard rebuild that didn't fix anything.
• Multiple lengths in stock — same SKU (e.g. 18-pin Antminer cable) available in 20cm, 30cm, 60cm to fit different chassis configurations. No need to splice extensions.
• Bulk pricing on small parts — at $0.65 to $9 each, data cables are perfect for fleet-spec inventory. Quote-based pricing reflects volume.

Frequently asked questions

How do I tell if my hashboard problem is the chip or the cable ?
Swap the data cable to a known-good unit first. If the X errors / chip count issue moves with the cable, the cable was bad. If it stays on the hashboard, the issue is on the board itself (chip, MOSFET, capacitor, temperature sensor). Always test the $1 cable before pulling $5 chips.

Are these original Bitmain / MicroBT cables or compatible third-party ?
Mixed. Some lengths and models are genuine OEM (e.g. official Whatsminer 22-pin signal cable). Others are compatible third-party — same pinout, same length, continuity-tested. Both are noted in product descriptions.

I need a cable in a length that isn't stocked — can you cut to size ?
For ribbon cables specifically, we can custom-cut lengths between 15cm and 100cm depending on the type. Send your spec (pin count, length, optional terminator) and we'll quote a small-batch custom order.

Do you stock USB cables for hashboard EEPROM remapping ?
Yes. Our universal hashboard EEPROM programming cable works with Antminer and Whatsminer hashboards for chip-map remapping and bad-chip lockout reprogramming. Essential for advanced hashboard repair.

Get a custom quote for bulk data cables

Mining farms with standardised miner generations or repair shops keeping ribbon-cable inventory for batches of hashboard rework benefit from our volume pricing. Send your model list and reorder volume and we'll quote back with options.

Get Business Pricing →
