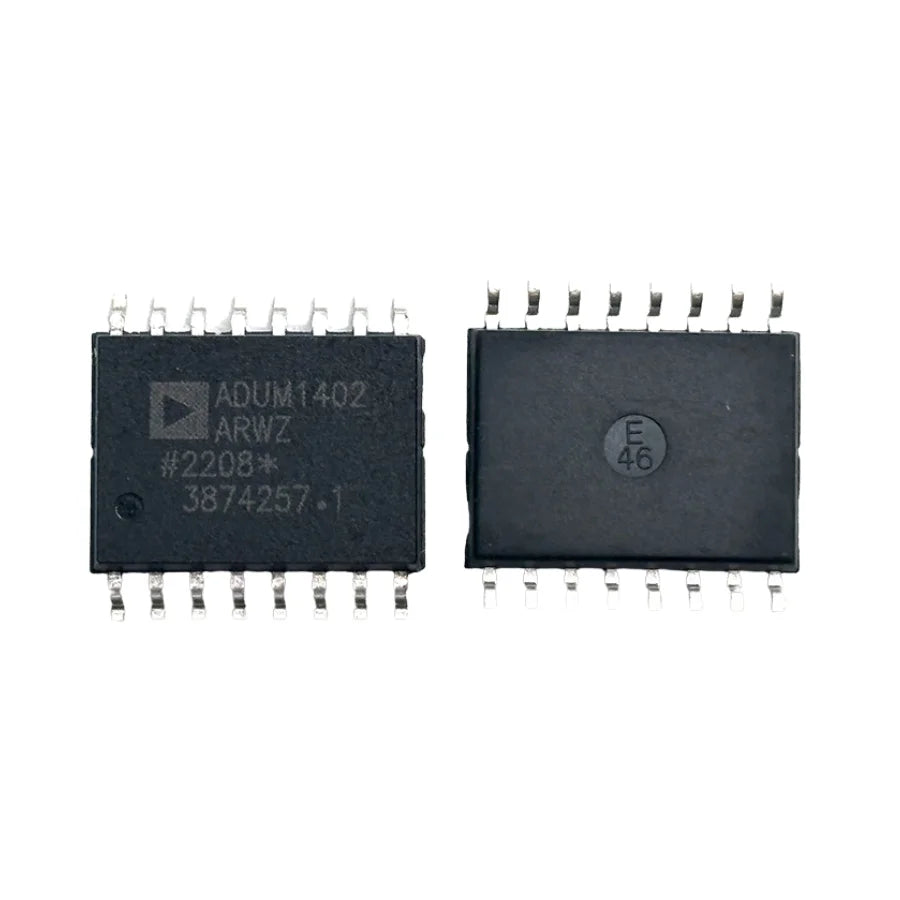

ADUM1402ARWZ-RL Digital Isolator 16-SOIC for Antminer D7 Hashboard

ADUM1402ARWZ-RL 4-Channel Digital Isolator | 16-SOIC iCoupler Replacement for Antminer D7 Hashboard Repair

The ADUM1402ARWZ-RL is a 4-channel digital isolator in a 16-SOIC package, used on the Antminer D7 hashboard to provide galvanic isolation between the high-voltage / high-current side and the low-voltage logic side. Built on the iCoupler magnetic-coupling architecture — 2500Vrms isolation, 25kV/µs common-mode transient immunity, and 1Mbps data rate with tight channel-to-channel matching (<2ns CRW).

Why isolation matters on the D7 hashboard: the ASIC chains generate substantial switching noise and the local control logic needs a clean reference. The ADUM1402ARWZ keeps the two domains decoupled — when this isolator fails, the result is corrupted communication between control logic and ASIC chains, missing chips on diagnostic scans, or full chain dropouts under load.

When to Replace the ADUM1402ARWZ

• Antminer D7 chain missing chips or dropping under load — isolator channel failure breaking the signal path.
• Garbled communication between the control board and a specific hashboard — isolator pulse-width distortion climbing.
• Visible damage on the 16-SOIC package after a high-voltage event on the isolated side.
• Hashboard boots intermittently with random communication drops — isolator degraded under thermal stress.
• One of the four channels dead — replace the whole IC, individual channels not field-isolable.

ADUM1402ARWZ-RL Specifications

FAQ — ADUM1402ARWZ Digital Isolator

Q: How do I confirm the isolator is the failed part?
A: With power on, scope the input pin and corresponding output pin on each of the four channels. Healthy channel: output mirrors input with ~100ns delay. Failed channel: output stuck high or low, doesn't track input. Test all four channels — even if only one is dead, replace the whole IC since individual channels share the substrate.

Q: Can I substitute a generic optoisolator?
A: No — optoisolators top out at maybe 10kV/µs CMTI and have very different propagation delay characteristics. The ADUM1402's 25kV/µs CMTI and tight 2.5ns rise / fall times are specifically why this part was chosen on the D7 hashboard. Substituting a slower or less robust isolator will cause intermittent or undetected failures.

Q: 16-SOIC rework profile?
A: Standard 16-SOIC rework. Bottom-side preheat 130°C, top-side hot air 320°C with flux paste. Match pin-1 orientation carefully — 16-SOIC is symmetrical-looking but pin-1 reversal will short rails on power-up.

Q: Bulk pricing for Antminer D7 repair benches?
A: Yes — email contact@lys-sz.com for tube-quantity ADUM1402ARWZ pricing.
