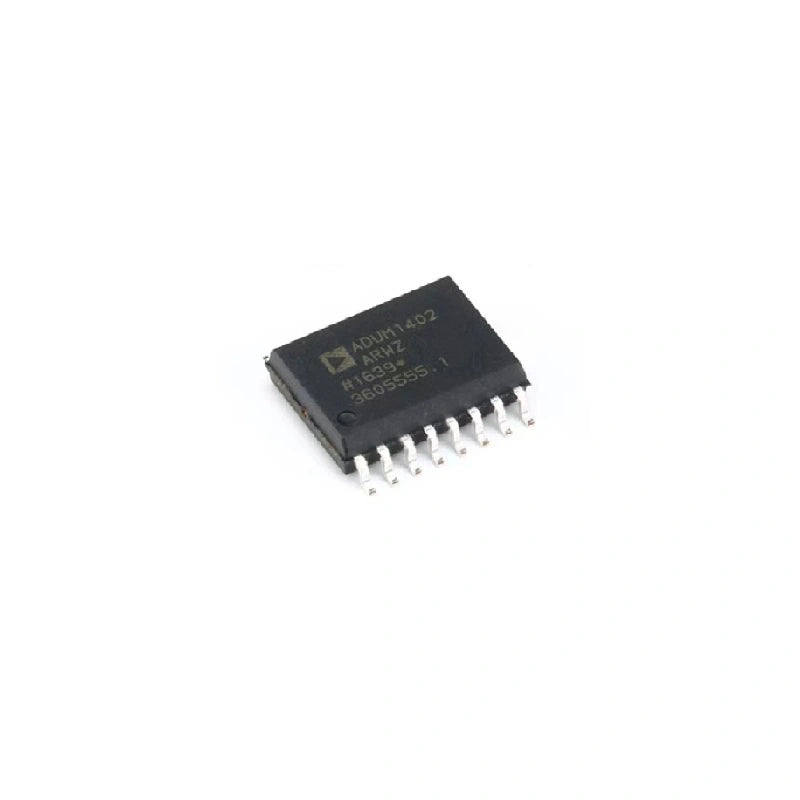

ADUM1402ARWZ-RL General Purpose Digital Isolator 16-SOIC for Antminer D7 Hashboard

$3.20 USD
$3.20 USD
Sale Sold out
Shipping calculated at checkout.

Additional details

Shipping fees will be automatically calculated during the checkout process.

Reach out to us via the contact form for further information and assistance.

Secure checkout with
  • Visa
  • Mastercard
  • American Express
  • Apple Pay
  • Union Pay
  • Maestro
  • Bitcoin
  • Discover

About the Product

Discover the Power of the ADUM1402ARWZ-RL Digital Isolator

Looking for a reliable and high-performance digital isolator? Look no further than the ADUM1402ARWZ-RL, a four-channel digital isolator that is based on Analog Devices' cutting-edge iCoupler technology. This powerful isolation component sets a new industry standard, offering superior performance compared to other options available on the market.

High-speed Data Transfer, Precise Timing, and Unbeatable Performance - The ADUM1402ARWZ-RL Has It All!

What makes this isolator so special? For starters, it operates from 2.7 V to 5.5 V, making it compatible with a wide range of different systems. Its low pulse width distortion (<2 ns for CRW stage) and tight channel-to-channel matching (<2 ns for CRW stage) make it ideal for applications where precise timing is critical. And thanks to its patented refresh feature, the ADUM1402ARWZ-RL ensures DC correctness even in situations where input logic transitions are absent and one of the supplies doesn't have power applied.

But that's not all - this digital isolator also features low power operation, bidirectional communication, and 3 V/5 V level translation. Its high common-mode transient immunity of >25 kV/μs makes it an excellent choice for industrial applications where electrical interference can be a concern. And with a high data rate of dc to 90 Mbps (NRZ), this isolator is capable of handling even the most demanding data transfer requirements.

Whether you're looking for a multifunctional isolation component for your Antminer D7 hash board, need high-speed data transfer capabilities, or are looking for a top-of-the-line RS-232/RS-422/RS-485 transceiver, the ADUM1402ARWZ-RL is the answer. With its superior performance, precise timing characteristics, and unbeatable reliability, this digital isolator is the perfect choice for a wide range of different applications.



Technical features:

Category

Isolators

Digital Isolators

Mfr

Analog Devices Inc.

Series

iCoupler®

Package

Tape & Reel (TR)

Technology

Magnetic Coupling

Type

General Purpose

Isolated Power

No

Number of Channels

4

Inputs - Side 1/Side 2

44959

Channel Type

Unidirectional

Voltage - Isolation

2500Vrms

Common Mode Transient Immunity (Min)

25kV/µs

Data Rate

1Mbps

Propagation Delay tpLH / tpHL (Max)

100ns, 100ns

Pulse Width Distortion (Max)

40ns

Rise / Fall Time (Typ)

2.5ns, 2.5ns

Voltage - Supply

2.7V ~ 5.5V

Operating Temperature

-40°C ~ 105°C

Mounting Type

Surface Mount

Package / Case

16-SOIC (0.295", 7.50mm Width)

Base Product Number

ADUM1402
